IMG 1 of 1
No Longer Available

Part Number:
84445
(?) Brand:
Manuf No:
DSEB-D16/SAS
DSEBD16/SAS
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
DSEB-D16/SAS, DSEBD16/SAS

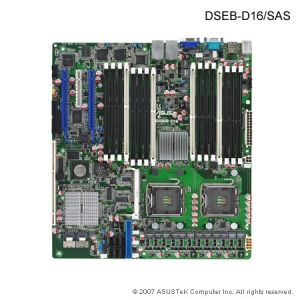

DSEB-D16/SAS
All New 45nm Multi-Core Ready Platform with High Power Efficiency
ASUS recently announces a new server board DSEB-D16/SAS, the next-generation 45nm Intel Xeon 5400/5300/52005100 processor ready platform with the green design of 90%+ power efficiency. Featured with leading-edge technology including FSB 1600MHz, FB-DIMM 800MHz, PCI-Express Gen2 x16 and IOAT2, the DSEB-D16/SAS is the most out-performance server board which is ideal for enterprise-class and computing demanding applications.

All New 45nm Multi-Core Ready Platform with High Power
  Efficiency

ASUS recently announces a new server board DSEB-D16/SAS, the next-generation 45nm Intel Xeon 5400/5300/52005100 processor ready platform with the green design of 90%+ power efficiency. Featured with leading-edge technology including FSB 1600MHz, FB-DIMM 800MHz, PCI-Express Gen2 x16 and IOAT2, the DSEB-D16/SAS is the most out-performance server board which is ideal for enterprise-class and computing demanding applications.

Green Design with 90%+ Power Efficiency
Optimizes the power efficiency up to 90%+, which enables power saving of around 1.68KWh per day and 613.2KWh per year, compared to general serverboards with 80% power efficiency (actual power saving also depends on loading in the system)
Being a significant reduction of the TCO (Total Cost of Ownership), especially for the enterprises and IDC deploying with numerous server systems to provide 7x24 non-stop services base on above calculation

Longer Life and Higher Reliability for all Conductive Polymer Caps
All conductor polymer has better electronic conductivity and longer lifetime, without risk of capacitor explosion
All conductor polymer capacitors can reduce energy loss and has better thermal characteristics

High Memory Expandability with Exclusive MemCool Support
Provide up to 64GB memory capacity for high computing capability
The 16 slots are divided into two zones (8-DIMM per zone) to provide better airflow compared with those in a row
The optional ASUS Patented MemCool Kit maximizes Fully-buffered DIMM performance by eliminating the potential risk of system memory throttling from over-temperature, and minimizes the system integration effort of SI for thermal & acoustic solution

PCI-E Gen2 x16 for High Speed Connection
Provides two PCI-E Gen2 x16 slots (for high speed Infiniband connections or professional graphic cards) with each support up to 8GB/s bandwidth, which doubles that of PCI-E (1.0)
One PCI-E x8 expansion slot and one PCI-X interface for advanced hardware RAID upgrade

200% Improved Data Transfers
Built in Quad-LAN with a teaming technology that integrates four high-speed Gigabit LAN ports into a single one, provides almost four times the transferring bandwidth
Provide fail-over function, if one or more port fail, the networking connection will not be affected immediately
The four ports can be used in individual sub-nets to provide secure data and smooth transfers

IxChariot Benchmark based on 100% Sequential Write/Send
(64K Data Transfer Buffer Size)

Built-in SAS with Complete RAID Upgrade
Provide built-in SAS with RAID 0, 1, 1E support
Support hardware RAID 5 support through the dedicate ZCR expansion slot, without sacrificing any PCI-E slots

KEY SPECIFICATIONS

Processor

Dual LGA771 Sockets Support:
Quad-Core Intel Xeon Processor 5300/5400 Series Processors
Dual-Core Intel Xeon Processor 5100/5200 Series Processors

FSB

FSB 667/1066/1333/1600MHz

Core Logic

Intel 5400 Memory Controller Hub (MCH)
Intel 6321ESB I/O Controller Hub (ICH)

Memory

16 DIMM slots support Fully-Buffered DIMM 533/667/800, 1.55V Low Voltage FB-DIMM Support, Max. up to 128 GB Memory Capacity

Storage Interface

6-port SATA2
8-port SAS

RAID Support

6 SATA2 300MB/s ports:
Intel Matrix Storage (for Windows only) (Support software RAID 0, 1, 10 & 5)

LSI 1068 PCI-X 8-port SAS controller:
LSI Integrated RAID 0, 1, 1E support

Optional LSI ZCR (Zero-Channel-RAID) PCI-X card:
(for upgrade to support hardware RAID 0, 1, 10, 5, 50)

NIC

Intel 6321+ Intel82563EB Dual Port GbE LAN
2 * Intel Intel82573L GbE LAN

Onboard Gfx

XGI Z9s VGA Controller / 32MB DDR VRAM

Expansion Slot

2 * PCI-E x16 Gen2

1 * PCI-E x8 slot (x8 link)

1 * PCI-X 100/133MHz (for LSI 8300XLP ZCR Card)

Form Factor

SSI EEB 3.61, 12 x 13





Specification
Processor / System Bus
2 * Socket LGA771
Quad-Core Intel Xeon 5400 Series (45nm)
Quad-Core Intel Xeon 5300 Series
Dual-Core Intel Xeon 5200 Series (45nm)
Quad-Core Intel Xeon 5100 Series
Dual Core/Quad Core
FSB 667/1066/1333/1600MHz EM64T
2x2M, 4M & 8M L2 cache
Core Logic
Intel 5400 Memory Controller Hub (MCH)
Intel 6321ESB I/O Controller Hub (ICH)
Form Factor
SSI EEB 3.61, 12 x 13
ASUS Features
Smart Fan II, MemCool Support
Rack Ready (Rack and Pedestal dual use)
ASWM2.0
Memory
Total Slots: 16 (4-channel)
Capacity: Maximum up to 128 GB
Memory Type: Fully-Buffered DIMM DDR2 533/667/800; 1.55V Low Voltage FB-DIMM Support
Memory Size: 512 MB, 1G, 2G, 4G, 8G*
Expansion Slots (follow SSI Location #)
Total PCI/PCI-X/PCI-E Slots: 4
Slot Loacation 1: 1 * PCI-E x16 Gen2
Slot Loacation 2: 1 * PCI-E x8 slot (x8 link)
Slot Loacation 3: 1 * PCI-E x16 Gen2
Slot Loacation 4: -
Slot Loacation 5: -
Slot Loacation 6: -
Slot Loacation 7: -
Additional Slot 1: 1 * SO-DIMM socket for optional ASMB3-SOL
Additional Slot 2: 1 * PCI-X 100/133MHz (for LSI 8300XLP ZCR Card)
Storage
IDE Controller
Intel 6321ESB:
1 * IDE, support UltraATA 33 / 66 / 100

SATA Controller
Intel 6321ESB:
6 SATA2 300MB/s ports
Intel Matrix Storage (for Windows only)
(Support software RAID 0, 1, 10 & 5)

SAS Controller
LSI 1068 PCI-X 8-port SAS controller:
LSI Integrated RAID 0, 1, 1E support
Optional LSI ZCR(Zero-Channel-RAID) PCI-X card:
(For upgrade to support hardware RAID 0, 1, 10, 5, 50)
Networking
LAN: Intel 6321+ Intel 82563EB Dual Port GbE
2 * Intel 82573 GbE
Graphic
VGA: XGI Z9s PCI Display Controller 32MB
Onboard I/O Connectors
Floppy Connector: 1
PSU Connector: 24-pin ATX power connector + 8-pin ATX 12V power connector + 4-pin ATX 12V power connector
Management Connector: SO-DIMM socket for ASMB3
USB Connectors: 1 (support 2 USB ports)
Fan Header: 10 * 4Pin
SMBus: 2
Chassis Intruder: 1
Front LAN LED: 2
Serial Port Header: 1
Rear I/O Connectors
External Serial Port: 1
External USB Port: 2
VGA Port: 1
RJ-45: 4
PS/2 KB/Mouse: 1
Management Solution
Software: ASWM2.0
Out of Band Remote Management: Optional (ASMB3-SOL)
Monitoring
CPU Temperature
FAN RPM
EMI
US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.
