Gigabyte GA-EP31-DS3L Motherboard
LGA775, P31, 1333FSB, 4x DDR2-800, PCI-Ex16, 4x SATA-II, GigLAN, 8Chl, ATX
Cart
Quantity:
Add Gigabyte GA-EP31-DS3L Motherboard
LGA775, P31, 1333FSB, 4x DDR2-800, PCI-Ex16, 4x SATA-II, GigLAN, 8Chl, ATX to your wishlist
Click here to write a review on Gigabyte GA-EP31-DS3L Motherboard
LGA775, P31, 1333FSB, 4x DDR2-800, PCI-Ex16, 4x SATA-II, GigLAN, 8Chl, ATX

Large image is available
Product May Vary From Image

Our Price:
$133.10
RRP:$135.00
You Save:$1.90

Techbuy Part No:84547
Usually Ships: 1-3 Days Details
Brand:Gigabyte Web Site
Manuf No:GA-EP31-DS3L
 GAEP31DS3L
Shipping Weight:2 KG How Much?
Date Added:13/5/2008
Rating: Not Rated
Currency:AUD Convert

Product Description

GA-EP31-DS3L
Intel  P31 + ICH7 Chipset
  1. Revolution energy saving design with GIGABYTE Dynamic Energy Saver(DES) technology.
  2. Supports Intel  Core 2 multi-core and 45nm processors
  3. Dual Channel DDR2 1066(O.C.) for remarkable system performance
  4. Ultimate graphics performance with PCI-E x16 interface
  5. Integrated high speed SATA 3Gb/s
  6. Features high speed Gigabit Ethernet connection
  7. Home theater quality 8-channel High Definition Audio
* Because of chipset limitations, do not populate both DIMM sockets of the same channel (e.g. DDR and DDR2), or populate 4 DIMM sockets with double-sided memory modules to prevent system's failure to start or incorrect detection of memory modules. Please refer to the user manual for the memory configurations table.

* Because of chipset limitations, when using FSB 1333 MHz CPU with populating all DIMM sockets, memory frequency will be reduced from the original, and system instability or incorrect detection of memory module may be occur.
Please refer "Memory Support List" for memory support information.

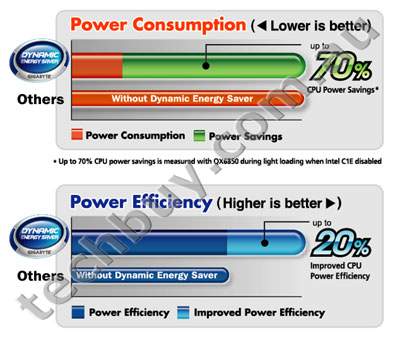

  GIGABYTE Dynamic Energy Saver


GIGABYTE Dynamic Energy Saver is a revolutionary technology that delivers unparalleled power savings with the simple click of a button. Featuring an advanced proprietary hardware and software design, GIGABYTE Dynamic Energy Saver is able to provide exceptional power savings of up to 70% and up to 20% improved power efficiency without sacrificing computing performance
  The Industry's Leading All-Solid Capacitor motherboard Design
To ensure a longer for systems in daily operation and boost system stability under extreme conditions, this platform adopts cutting-edge Conductive Polymer Aluminum Solid Capacitors from the world's leading vendors. With these high-quality components, users can take advantage of better electronic conductivity and excellent heat resistance for enhanced system durability.
  Intel  Core 2 multi-core and upcoming 45nm processors
GA-EP31-DS3L supports Intel latest high performance CPU delivers the most energy-efficient performance available today. Based on Intel's Micro Architecture, the Intel multi-core processors with 4 cores and two shared L2 caches provide the best capability-per-watt solutions and are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments. This cutting-edge processor offers significant performance boosts and provides an overall more energy efficient platform.
  Intel  P31 Express Chipset
The Intel  P31 Express Chipsets support the latest multi-core processors up to FSB 1333MHz, including the upcoming 45nm platform, with its record breaking performance and greater energy efficiency.
  Windows Vista Premium Logo Certified
Windows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With P35/G33/P31/G31/P965/G965/946/945 solutions all enabling support for Vista Premium, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new
  Dual Channel DDR2 1066 by O.C
Get a jump in memory performance with the advanced technology of DDR2 1066 memory architecture by overclocking, which delivers superior performance for the most demanding applications.
  SATA 3Gb/s storage interface
The SATA specification doubles bus bandwidth from 1.5Gb/s to 3Gb/s. Native Command Queuing is a new specification that enables out-of-order execution of commands for efficient retrieval of data. Hot Plug support allows users to insert and remove hard disk drives without shutting off power to the system.
  Intel  High Definition Audio
Intel  High Definition Audio enables 8 channel premium digital sound in the PC for an immersive surround sound experience. In addition, Intel HD Audio delivers multiple audio channels in your PC so you can listen to two different streams simultaneously in two separate rooms
  Gigabit LAN connectivity
The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents
  RoHS compliant
As a member of the global community to look after the environment, Gigabyte complies with the European Union's Restriction of use of certain Hazardous Substances (RoHS) directive which limits the use of lead, mercury, cadmium and other hazardous substances in electronic products. From components and material selection to production processes, make up of accessories, packaging/color boxes etc; GIGABYTE has carefully examined and designed this product to be 100% RoHS compliant. GIGABYTE will continue to develop RoHS compliant PC components and commit valuable resources to promoting and advancing RoHS directive goals and objectives.
  Speed
The Speed compliant motherboards of GIGABYTE S-series provide intelligent over-clocking and over-voltage software settings through both hardware and software design
  Smart
The Smart featured motherboards of GIGABYTE S-series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!
  Safe
Safe is the key feature of GIGABYTE S-series motherboards with the following elements: Excellent hardware design reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!

/images/extra/E2008051369941.jpg

Specifications
CPU
  1. Support for an Intel  Core 2 Extreme processor/ Intel  Core 2 Quad processor/ Intel  Core 2 Duo processor/ Intel Pentium processor Extreme Edition/ Intel  Pentium D processor/ Intel  Pentium 4 processor Extreme Edition/ Intel  Pentium 4 processor/ Intel  Celeron processor in the LGA 775 package
  2. Support for Intel Hyper-Threading Technology
  3. L2 cache varies with CPU
Front Side Bus
  1. 1333/1066/800 MHz FSB
Chipset
  1. North Bridge: Intel  P31 Express Chipset
  2. South Bridge: Intel  ICH7
Memory
  1. 4 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory (Note 1)
  2. Dual channel memory architecture
  3. Support for DDR2 (1066)/800/667 MHz memory modules (Note 2)
* Because of chipset limitations, do not populate both DIMM sockets of the same channel (e.g. DDR and DDR2), or populate 4 DIMM sockets with double-sided memory modules to prevent system's failure to start or incorrect detection of memory modules. Please refer to the user manual for the memory configurations table.

* Because of chipset limitations, when using FSB 1333 MHz CPU with populating all DIMM sockets, memory frequency will be reduced from the original, and system instability or incorrect detection of memory module may be occur. Please refer "Memory Support List" for memory support information.

(Note 1)Based on standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount. For example, 4 GB of memory size will instead be shown as 3.xx GB during system startup.
(Note 2)Some memory configurations will result in memory frequency being reduced from the original frequency.
Audio
  1. Realtek ALC888 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF In/Out
  5. Support for CD In
LAN
  1. RTL 8111B chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot
  2. 3 x PCI Express x1 slots
  3. 3 x PCI slots
Storage Interface South Bridge:
  1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
  2. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
iTE IT8718 chip:
  1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB Integrated in the South Bridge
  1. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x floppy disk drive connector
  4. 1 x IDE connector
  5. 4 x SATA 3Gb/s connectors
  6. 1 x CPU fan header
  7. 2 x system fan headers
  8. 1 x power fan header
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x CD In connector
  12. 1 x S/PDIF In header
  13. 1 x S/PDIF Out header
  14. 2 x USB 2.0/1.1 headers
  15. 1 x chassis intrusion header
  16. 1 x power LED header

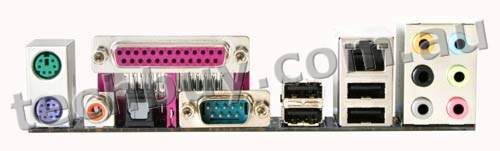

Back Panel Connectors
  1. 1 x PS/2 keyboard port Connectors
  2. 1 x PS/2 mouse port
  3. 1 x parallel port
  4. 1 x serial port
  5. 4 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
  1. iTE IT8718 chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System/Power fan speed detection
  4. CPU overheating warning
  5. CPU/System/Power fan fail warning
  6. CPU fan speed control
BIOS
  1. 1 x 4 Mbit flash
  2. Use of licensed AWARD BIOS
  3. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Download Center
  3. Support for Q-Flash
  4. Support for EasyTune (Note 3)
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for Virtual Dual BIOS
(Note 3)Available functions in Easytune may differ by motherboard model.
Bundle Software
  1. Norton Internet Security (OEM version)
Operating System
  1. Support for Microsoft Windows Vista/XP/2000
Form Factor
  1. ATX Form Factor; 30.5cm x 21.0cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.


* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.

* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.




Product Warranty


3-year Manufact.
