All stock codes associated to this product
190VW9FB

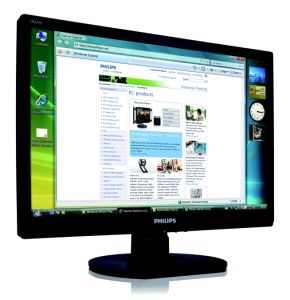

LCD widescreen monitor 190VW9FB/97
19.1" wide WXGA+
Great value, best savings on widescreen display
This Vista-ready 190VW9 delivers the simple, straight forward and reliable widescreen display performance you need without costly extras that strain your budget and without compromising on quality.
Best Value for Money
•Widescreen LCD displays more content without scrolling
•5ms fast response time
•Empowered for Windows Vista
•Energy Star for energy efficiency and low power consumption
•Complies with RoHS standards to care for the environment
Great convenience
•Screen tilts to your ideal, individualized viewing angle
•Embedded power supply eliminates external power adaptors
•sRGB ensures color matching between display and printouts
•Kensington anti-theft lock-ready for added security
Specifications
Picture/Display
•LCD panel type: 1440 x 900 pixels, Anti-glare polarizer, RGB vertical stripe
•Panel Size: 19.1"/ 48.1 cm
•Effective viewing area: 410.4 x 256.5 mm
•Pixel pitch: 0.285 x 0.285 mm
•Brightness: 300 cd/m²
•Contrast ratio (typical): 800:1
•Display colors: 16.7 M
•Viewing angle: 160º (H) / 160º (V), @ C/R > 10
•Response time (typical): 5 ms
•Maximum Resolution: 1440 x 900 @ 75 Hz
•Recommended Resolution: 1440 x 900 @ 60 Hz
•Video Dot Rate: 165 MHz
•Horizontal Scanning Frequency: 30 - 83 kHz
•Vertical Scanning Frequency: 56 -75 Hz
•sRGB
•Aspect ratio: 16:10
Connectivity
•Signal Input: Analog (VGA)
•Video Sync Input Signal: Composite Sync, Separate Sync, Sync on Green
•Sync input impedance: 2.2k ohm
•Video input impedance: 75 ohm
•Video input signal levels: 0.7 Vpp
Convenience
•Convenience Enhancements: On-screen Display
•Monitor Controls: Auto (Back), Input (Down), Brightness (Up), Menu, Power On/Off
•OSD Languages: English, French, German, Italian, Portuguese, Russian, Simplified Chinese, Spanish, Turkish
•Other convenience: Kensington lock compatible
•Plug & Play Compatibility: DDC/CI, Windows 98/ME/2000/XP/Vista
•Regulatory Approvals: CE Mark, Energy Star, FCC Class B, UL, CCC
•Tilt: -5° to 20°
•VESA Mount: 100 x 100 mm
Dimensions
•Box dimensions (W x H x D): 375 x 145 x 490 mm
•Box dimensions in inch (W x H x D): 14.8 x 5.7 x 19.3 inch
•Set dimensions (W x H x D): 439 x 304 x 60.9 mm
•Set dimensions in inch (W x H x D): 17.3 x 12.0 x 2.4 inch
•Set dimensions with stand (W x H x D): 439 x 363.1 x 191.7 mm
•Set dimensions with stand in inch (W x H x D): 17.3 x 14.3 x 7.6 inch
•MTBF: 50,000 hrs
•Relative humidity: 20% - 80%
•Temperature range (operation): 0°C to 40°C
•Temperature range (storage): -20°C to 60°C
•Product weight (+stand): 3.6 kg
•Product weight (+stand) (lb): 7.9 lb
Power
•Complies with: Energy Star
•Consumption: < 35 W
•Off Mode: < 1 W
•Power LED indicator: Operation - green, Stand by/sleep - Amber
•Power supply: Built-in, 100-240VAC, 50/60Hz
