Motherboards -> Server Boards -> Tyan

Tyan Thunder n3600B - S2927G2NR-E
2x F1207, AMD Opteron 2200/2300 Series, 8x Reg ECC DDR2-667, 1xPCI-Ex16, 1xPCI-Ex8, 3xPCI, 6xSATA-II, RAID 0,1,0+1,5 & JBOD, 2xGigLAN, VGA, ATX
Cart
Quantity:
Add Tyan Thunder n3600B - S2927G2NR-E
2x F1207, AMD Opteron 2200/2300 Series, 8x Reg ECC DDR2-667, 1xPCI-Ex16, 1xPCI-Ex8, 3xPCI, 6xSATA-II, RAID 0,1,0+1,5 & JBOD, 2xGigLAN, VGA, ATX to your wishlist
Click here to write a review on Tyan Thunder n3600B - S2927G2NR-E
2x F1207, AMD Opteron 2200/2300 Series, 8x Reg ECC DDR2-667, 1xPCI-Ex16, 1xPCI-Ex8, 3xPCI, 6xSATA-II, RAID 0,1,0+1,5 & JBOD, 2xGigLAN, VGA, ATX

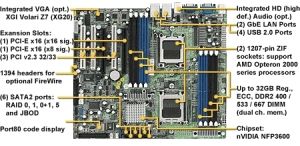

Large image is available
Product May Vary From Image

Our Price:
$595.05

Techbuy Part No:84685
Usually Ships: Order In Details
Brand:Tyan
Manuf No:S2927G2NR-E
 S2927G2NRE
Shipping Weight:3 KG How Much?
Date Added:15/5/2008
Rating: Not Rated
Currency:AUD Convert

Product Description

Features
A 2P performance server/workstation in an ATX form factor? YES. The Thunder n3600B (S2927) offers support for dual AMD Opteron 2000 Series processors, up to (8) DDR2 Registered DIMMs, dual Gigabit Ethernet ports, has built-in audio and video, and support for PCI Express x16 cards in an SLI configuration. Other great features include SATA2/3G with RAID, built-in POST code display, remote management (IPMI 2.0) option and multiple PCI slots for expansion flexibility.
Processor Dual 1207-pin sockets support AMD Opteron (Rev. F) 2000 series processors
Uses the standard 3 1/2"/ 89mm socket connector
Up to 1.0 GHz Hyper-Transport link support
Chipset nVIDIA NFP3600; SMSC SCH5017
Memory Dual channel memory bus
(8) 240-pin DDR2 DIMM sockets for up to 32GB
Supports reg., ECC, DDR2 400/533/667 DIMMs
Expansion Slots (1) PCI-E x16 (x16 signal; PCI-E1)
(1) PCI-E x16 (x8 signal; PCI-E2)
(3) PCI v2.3 32-bit/33MHz slots (PCI 1~3)
Total of five usable expansion slots
Integrated I/O Interfaces (1) Floppy connector
(4) USB v2.0 ports (via cable)
(1) COM port (via cable)
Tyan 2 x 9-pin front panel pin header
Back Panel I/O Ports (1) Stacked PS/2 mouse and keyboard ports
(1) COM1 connector
(1) 15-pin VGA port (optional)
(3) Audio jacks (from bottom: line out <green>, line in <blue>, MIC <pink> (optional)
(2) Double-decked USB 2.0 ports and one RJ45 10/100/1000 Base-T port with link/activity LED
Integrated Graphics XGI Volari Z7 (XG20) graphics controller
16MB Frame Buffer of video memory
Integrated PCI IDE Single channel master mode supports up to two IDE devices; support for ATA-133/100/66/33 IDE drives and ATAPI compliant devices


Integrated Serial ATA Controller


(3) SATA2 host controllers embedded
(6) SATA2 ports at 3.0Gb/s per direction per ch.
Serial ATA 2.0 specification compliant
nVIDIA MediaShield supports for RAID 0, 1, 0+1, 5, and JBOD
HDD LED connector
System Management SMSC SCH5017 w/ 2x EMC6D103
2x CPU fan and 2x 4-pin system fan headers, w/tachometer input and w/ auto fan control
Temperature & voltage monitoring
Watchdog timer support
Port 80 code display LED
Integrated LAN Controllers Two NFP3600 integrated MAC with two Marvell 88E1116 single port Gigabit Ethernet PHY
- Integrated TCP Offload Engine (TOE)
- IEEE802.3 compliant, WOL/PXE support
- Pin header for front panel LAN LED
BIOS AMI BIOS on 8Mbit Flash
Supports ACPI 2.0
PnP, DMI 2.0, WfM 2.0 Power Management
Power EPS 12V support, onboard 4-phase VRD
Universal 24-pin + 8-pin power connectors
4-pin auxiliary power connector
Form Factor ATX footprint (12" x 10.2"; 305mm x 259mm)
Regulatory FCC Class B (Declaration of Conformity)
CE (Declaration of Conformity)




All brands and names are trademarks of their respective companies. Prices, descriptions and images subject to change without notice. The product images used on our website are for illustration purposes only and may vary from the product description. All prices are excluding GST



Product Warranty


3


Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
