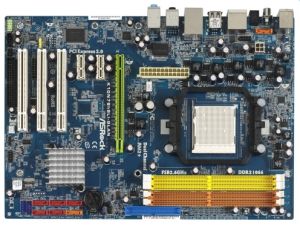

K10N78hSLI-GLAN
- Support for Socket AM2+ / AM2 processors: AMD Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
- Supports Hyper-Transport 3.0 (HT 3.0) Technology
- NVIDIA GeForce 8200 Chipset
- FSB 2600 MHz (5.2 GT/s)
- Supports Dual Channel DDR2 1066 with AM2+ CPU , and DDR2 800/667/533 with AM2 CPU, with 4 DIMM slots, maximum capacity up to 8GB
- Supports NVIDIA Hybrid SLI GeForce Boost feature
- 1 x PCI Express 2.0 x 16 slot (green @ x16 mode)
- 6 x Serial ATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, AHCI and Hot Plug functions
- 1 x eSATAII 3.0 Gb/s connector
- Supports Gigabit LAN 10/100/1000 Mb/s
- 1 x WiFi/E header
- Supports ASRock OC Tuner
- Intelligent Energy Saver
- Windows Vista Premium 2007 Logo Ready
- ASRock eSATAII_SPDIF I/O: 1 x eSATAII Port, 1 x Coaxial SPDIF Out Port, 1 x Optical SPDIF Out Port
| This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region. |
|
| General |
| CPU |
- Support for Socket AM2+ / AM2 processors: AMD Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
- AMD LIVE! Ready
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology |
| Chipset |
- NVIDIA GeForce 8200 |
| Memory |
- Dual Channel DDR2 memory technology
- 4 x DDR2 DIMM slots
- Supports DDR2 1066/800/667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB*
| *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows XP and Windows Vista. For Windows XP 64-bit and Windows Vista 64-bit with 64-bit CPU, there is no such limitation. |
|
| BIOS |
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, DRAM, Chipset Core, HTT Voltage Multi-adjustment |
| Audio, Video and Networking |
| Graphics |
- n/a |
| Audio |
- 5.1 CH Windows Vista Premium Level HD Audio (ALC662 Audio Codec) |
| LAN |
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY RTL8211B
- Supports Wake-On-LAN |
| Expansion / Connectivity |
| Slots |
- 1 x PCI Express 2.0 x16 slot (green @ x16 mode)
- 2 x PCI Express x1 slots
- 3 x PCI slots
- Supports NVIDIA Hybrid SLI GeForce Boost feature |
| Connector |
- 6 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ, AHCI and Hot Plug functions
- 1 x eSATAII 3.0 Gb/s connector (shared with 1 SATAII port)
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x DeskExpress Hot Plug Detection header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x WiFi/E header |
| Rear Panel I/O |
ASRock eSATAII_SPDIF I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x eSATAII Port
- 1 x RJ-45 LAN Port
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous |
| Unique Feature |
- ASRock OC Tuner
- Intelligent Energy Saver
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5% |
| Support CD |
- Drivers, Utilities, AntiVirus Software (Trial Version) |
| Accessories |
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
- 2 x SATA Data Cables (Optional)
- 1 x SATA 1 to 1 Power Cable (Optional)
- 1 x HDMI_SPDIF Cable (Optional) |
| Hardware Monitor |
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Form Factor |
- ATX Form Factor: 12.0-in x 8.4-in, 30.5 cm x 21.3 cm |
| OS |
- Microsoft Windows XP / XP Media Center / XP 64-bit / Vista / Vista 64-bit compliant |
| Certifications |
- FCC, CE, WHQL |
|
Caution:
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
|
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
|
