Motherboards -> AMD Socket AM2+ -> ASUS

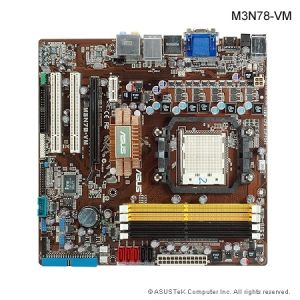

ASUS M3N78-VM Motherboard
AM2+, GeForce 8200, HT 5200, 4x DDR2-1066, PCI-Ex16 v2.0, 5x SATA-II, eSATA, RAID, GigLAN, Audio, DVI+VGA, HDMI, mATX
Cart
Quantity:
Add ASUS M3N78-VM Motherboard
AM2+, GeForce 8200, HT 5200, 4x DDR2-1066, PCI-Ex16 v2.0, 5x SATA-II, eSATA, RAID, GigLAN, Audio, DVI+VGA, HDMI, mATX to your wishlist
Click here to write a review on ASUS M3N78-VM Motherboard
AM2+, GeForce 8200, HT 5200, 4x DDR2-1066, PCI-Ex16 v2.0, 5x SATA-II, eSATA, RAID, GigLAN, Audio, DVI+VGA, HDMI, mATX

Large image is available
Product May Vary From Image

Our Price:
$154.00
RRP:$179.00
You Save:$25.00

Techbuy Part No:86173
Usually Ships: 1-3 Days Details
Brand:ASUS Web Site
Manuf No:M3N78-VM
 M3N78VM
Shipping Weight:2 KG How Much?
Date Added:25/6/2008
Rating: Not Rated
Currency:AUD Convert

Product Description

M3N78-VM
Work Smartly!
  • AMD AM2+ Quad-Core CPU/AM2 CPU Support
  • NVIDIA GeForce 8200 Chipset
  • Hybrid SLI Support
  • HyperTransport 3.0 and PCIe 2.0 Ready
  • HDMI/Full HD Support
  • Smooth Blu-ray / HD DVD Playback
  • Multi Displays Support
  • DX10 Support
  • Instant Internet Access with Express Gate


Supports AMD Socket AM2+/AM2 for Phenom/ Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron / AM2+
This motherboard supports AMD AMD Socket AM2+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus.
AMD Socket AM2 Athlon 64 X2 / Athlon 64 FX / Athlon 64/ Sempron Support
This motherboard supports AMD Socket AM2 single-core Athlon 64 / Sempron and dual-core Athlon 64 X2 / Athlon 64 FX processors with 2MB / 1MB / 512KB L2 cache based on 64-bit architecture. It features 2000 / 1600 MT/s HyperTransport-based system bus, dual-channel un-buffered DDR2 800 memory support, and AMD Cool n Quiet Technology.
HyperTransport 3.0 Support
Provides 2.6 times more bandwidth than HT1.0 that radically improves system efficiency for a smoother, faster computing environment.
Dual channel DDR2 1066 Support
DDR2 1066 memory provides great performance for 3D graphics and other memory demanding applications on next generation memory technology.
AMD Cool n Quiet! Technology
M3N78-EMH HDMI supports AMD Cool n Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment.
NVIDIA GeForce 8200
NVIDIA GeForce 8200 offers the latest support of Hybrid SLI Technology, DirectX10 graphics features, HD video playback with HDMI/DVI output. It also supports HyperTransport 3.0 interface, PCI Express 2.0 bus architecture, Serial ATA 3 Gb/s devices and is optimized with AMDs latest AM2+ and multi-core CPUs to provide excellent system performance.

ASUS Express Gate
Surf the Internet in 5-second-boot time without entering Windows
With a fast bootup speed of only 5 seconds, the ASUS Express Gate offers an optional Linux OS bootup that allows you to enjoy instant access to commonly used functions like accessing the Internet, VoIP, and Web emailing without entering the OS.

* File downloading and uploading on USB drives only
** The actual boot time is subject to hardware configurations and product models




Hybrid SLI Support
Hybrid SLI technology is a unique hybrid multi-GPU technology. It includes two primary features: GeForce Boost and HybridPower. GeForce Boost turbo-charges performance of discrete graphics cards when combined with the motherboard GPUs. HybridPower unleashes graphics performance for demanding 3D applications and enables low-power operation for everyday computing needs.
* GeForce(R) Boost and HybridPower are on select GeForce(R) GPUs. Visit www.nvidia.com/hybridsli for more information.
NVIDIA PureVideo HD Technology
PureVideo HD technology is the core of a complete Blu-ray or HD DVD movie solution, featuring hardware acceleration, post-processing, HDCP circuitry, and integration with leading HD movie software players.
HDMI Support
Enjoy Full HD 1080p Multimedia Home-Theater Entertainment
High-Definition Multimedia Interface (HDMI) is a set of digital video standards that delivers multi-channel audio and uncompressed digital video for full HD 1080p visuals through a single cable. Supporting HDCP copy protection such as HD DVD and Blu-ray Discs, HDMI provides you with the highest-quality home theater experience.
Serial ATA 3Gb/s
This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification, allowing RAID 0, RAID 1,RAID 0+1,RAID 5 and JBOD configurations for five SATA connectors.

PCIe 2.0 support
This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.
Dual VGA output
This motherboard supports Dual-VGA output (RGB & HDMI/DVI). HDMI/DVI interface is compliant with HDCP.
ASUS EZ Flash2
With ASUS EZ Flash, you can update BIOS before entering operating system. No more DOS-based flash utility and bootable diskette required.

ASUS CrashFree BIOS3
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
ASUS Q-Fan
ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation.

AI NET2
Diagnose LAN connection before entering OS!
AI NET2 remotely detects cable connection the second you turn on the system, and any faulty connections are reported back up to 100 meters at 1 meter accuracy.

MyLogo2
Personalize your system with customizable boot logo You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.

GreenASUS
The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment.




Specification
CPU
AMD Socket AM2+ / AM2 Processors
AMD Phenom FX / Phenom / Athlon / Sempron
Support up to 140W CPU
AMD Cool 'n' Quiet Technology
Chipset
NVIDIA GeForce 8200
System Bus
Up to 5200/MT/s ; HyperTransport 3.0 interface for AM2+ CPU
2000 / 1600 MT/s for AM2 CPU
Memory
4 x240-pin DIMM, Max. 8 GB, DDR2 1066/800/667/533 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*DDR2 1066 is supported by AM2+ CPU only
**Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
***When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI
Scalable Link Interface (SLI)
Hybrid SLI Support (support Windows Vista only.)
VGA
Integrated NVIDIA GeForce 8 Series GPU
Hybrid SLI Support (support Windows Vista only.)
Supports HDMI Technology with max. resolution up to 1920 x 1200
Supports DVI with max. resolution up to 1600 1200
Supports D-Sub with max. resolution up to 1920 1440
Supports Microsoft DirectX 10, OpenGL 2.0, Pixel Shader 4.0
Support PCIe 2.0 / 1.0 Architecture
Maximum shared memory of 256MB
Storage
Chipset
1 xUltraDMA 133/100
5 x SATA 3Gb/s ports (Use SATA1-3 for IDE mode.)
NVIDIA MediaShield Chipset built-in, , RAID 0,1,0+1,5, JBOD
LAN
NVIDIA nForce built-in Gigabit MAC with external RTL8211CL-GR
Audio
VT1708B 8 -Channel High Definition Audio CODEC
- Optical S/PDIF out port at back I/O
- Support Jack Detection and Multi-streaming
USB
12 USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)
ASUS AI Lifestyle Features
ASUS Quiet Thermal Solution
- ASUS Q-Fan

ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Overclocking Features
- GPU Overclocking up to 600 MHz
SFS (Stepless Frequency Selection)
- HT tuning from 200MHz up to 400MHz at 1MHz increment
- Memory tuning from 533MHz up to 1066MHz
- PCIe frequency tuning from 100MHz up to 200MHz at 1MHz increment
Overclocking Protection:
- ASUS C.P.R. (CPU Parameter Recall)
Special Features
ASUS MyLogo 2
ASUS AI NET 2
Back Panel I/O Ports
1 x PS/2 Keyboard/Mouse Combo port
1 x Optical S/PDIF Out
1 x HDMI
1 x DVI
1 x D-SUB
1 x External SATA
1 x RJ45 port
6 x USB 2.0/1.1
8-Channel Audio I/O
Internal I/O Connectors
3 x USB connector (6 ports)
1 x Floppy disk drive connector
1x TPM header
1 x COM connector
5 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x Front panel audio connector
1 x S/PDIF Out connector
1 x Chassis Intrusion connector
1 x CD audio in connector
1 x 24-pin ATX Power connector
1 x 4-pin ATX +12V Power connector
1 x System Panel connector
BIOS
8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.5
ASUS EZ Flash 2
Accessories
User's manual
1 x UltraDMA 133/100 cable
1 x FDD cable
2 x SATA cables
1 x 2-port SATA power cables
1 x User manual
Support Disc
Drivers
ASUS PC Probe II
Express Gate
Anti-virus software (OEM version)
ASUS Update
Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x24.4 cm )

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.


Product Warranty


1 Year Return to Base
