Motherboards -> Intel Socket 775 -> ASUS

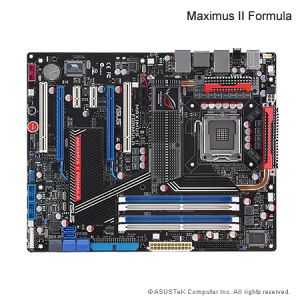

ASUS Maximus II Formula Motherboard
LGA775, P45, 1600FSB, 4x DDR2-1200, 2x PCI-Ex16 v2.0, 8x SATA-II, eSATA, RAID, 2x GigLAN, X-Fi 8Chl, Firewire, ATX
Cart
Quantity:
Add ASUS Maximus II Formula Motherboard
LGA775, P45, 1600FSB, 4x DDR2-1200, 2x PCI-Ex16 v2.0, 8x SATA-II, eSATA, RAID, 2x GigLAN, X-Fi 8Chl, Firewire, ATX to your wishlist
Click here to write a review on ASUS Maximus II Formula Motherboard
LGA775, P45, 1600FSB, 4x DDR2-1200, 2x PCI-Ex16 v2.0, 8x SATA-II, eSATA, RAID, 2x GigLAN, X-Fi 8Chl, Firewire, ATX

Large image is available
Product May Vary From Image

Our Price:
$405.35

Techbuy Part No:86185
Usually Ships: 1-3 Days Details
Brand:ASUS Web Site
Manuf No:MAXIMUS II FORMULA
Shipping Weight:2 KG How Much?
Date Added:26/6/2008
Rating: Not Rated
Currency:AUD Convert

Product Description
For recommended Corsair memory for this motherboard, click here: Recommended Memory

Maximus II Formula
The exclusive gamer-oriented motherboard
  • Intel Core2 Extreme / Core2 Quad / Core2 Duo Ready
  • Support Intel next generation 45nm Multi-Core CPU
  • Intel P45/ICH10R
  • Dual-channel DDR2 1200/1066/800/667 Support
  • SupremeFX X-Fi 8-CH Audio
  • CPU Level Up
  • Pin Fin Thermal Module
  • Speeding HDD
ASUS ROG Motherboard - The Battle

CPU Features
Intel P45 Chipset
This motherboard supports the latest Intel Quad-core processors in LGA775 package. Its excellent for multi-tasking, multi-media and enthusiastic gamers with 1600/1333 MHz FSB. Intel Quad-core is one of the most powerful CPU in the world
LGA775 Intel Core2 Extreme/Core2 Quad/Core2 Duo Processor Ready
The motherboard supports DDR2 memory that features data transfer rates of 1200/1066/800/667 MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications. The dual-channel DDR2 architecture doubles the bandwidth of your system memory to boost system performance, eliminating bottlenecks with peak bandwidths of up to 19.2GB/s.

PCIe 2.0
Double Speed; Double Bandwidth
This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.
Memory Features
Dual-Channel DDR2
To attain top performance, ASUS engineers have successfully unleashed the true potential of DDR3 memory. While in DDR3 1333 mode, ASUSs exclusive technology offers a choice of FSB 1333 - providing great performance for 3D graphics and other memory demanding applications.
Graphics Technology
ATI CrossFireX Technology
ATIs CrossFireX boosts image quality along with rendering speed, eliminating the need to scale down screen resolutions to get the high image quality you want. CrossFire ignites with the higher antialiasing, anisotropic filtering, shading, and texture settings you desire. Adjust your display configurations, experiment with your advanced 3D settings, and check the effect with a real-time 3D-rendered preview within ATIs Catalyst Control Center to rule your CrossFireX system.
Performance with Reliability
CPU Level Up
A Simple click for instant upgrade
Ever wish that you could have a more expansive CPU? Upgrade your CPU at no additional cost with ROGs CPU Level Up! Simply pick the processor you wanted to OC to, and the motherboard will do the rest!
See the new CPU speed and enjoy that performance instantly. Overclocking is never as easy as this.
Speeding HDD
Speeding HDD lets gamer experience almost twice the hard disks data accessing performance without complicated setting procedures! No more waiting for game loads, and get in the action faster!
Extreme Engine
The Extreme Engine brings turbo-charged performance and stability to the motherboard, even during the most extreme overclocking quests. ASUS Extreme Engine balances the need for voltage and the desire for rock solid performance to bring the ultimate user experience.
Pin Fin Thermal Module
New Generation Heat-dissi+pating Design: Time to Cool Down
Compare with traditional stacked-fin heatpipe solution, the new generation pin-fin thermal design result in better thermal performance, which enlarges the "heat-exchange" surface area surface and breaks the "Boundary-layer" phenomenon for effective airflow. The Pin-Fin Thermal Module is the most efficient thermal system there is on the motherboard.

BIOS Flashback
Flashback act as a SaveGame function for BIOS management. Go back to any other BIOS version you like!
Extreme Tweaker
One stop performance tuning shop
Extreme Tweakers is the one stop shop to fine-tune your system to optimal performance. No matter if youre looking for frequency adjustment, over-voltage options, or memory timing settings, theyre all here!


Voltiminder LED
Friendly reminder on the intentional madness
In the pursuit of extreme performance, overvoltage adjustment is critical but risky. Acting as the "red zone" of a tachometer, the Voltiminder LED displays the voltage status for CPU, NB, SB, and Memory in a intuitive color-coded fashion. The voltiminder LED allows quick voltage monitoring for overclockers.
iROG
The iROG enables ROG highlighted functions that gives users full disposal of the motherboard purely on a hardware level at any stage!
ASUS EPU-6 Engine
System Level Energy Saving
The new ASUS EPU - the worlds first power saving engine, has been upgraded to a new 6 engine version, which provides total system power savings by detecting current PC loadings and intelligently moderating power in real-time. With auto phase switching for components (which includes the CPU, VGA card, memory, chipset, hard drives and CPU cooler/system fans), the EPU automatically provides the most appropriate power usage via intelligent acceleration and overclocking - helping save power and money.
COP EX
OC in confidence
The COP EX allows overclockers to increase chipset voltages without the worries of overheating. It can also be used to monitor and save an overheating GPU. The COP EX allows more freedom and less constraint for maximum performance achievement.

Loadline Calibration
Maintaining ample voltage support for the CPU is critical during overclocking. The Loadline Calibration ensures stable and optimal CPU voltage under heavy loading. It helps overclockers enjoy the motherboards ultimate OC capabilities and benchmark scores.

Sound with Clarity
SupremeFX X-Fi
SupremeFX X-Fi combines the technological quality design of SupremeFX and sound effect technology from Creative Labs to offer games exceptional game sound with absolute quality.


EZ DIY
LCD Poster
Debug with Translation
The new LCD Poster now posts critical POST information in an ever friendly and flexible external display. When system malfunction occurs, the LCD Poster automatically detects device failure and translates the errors on the LCD during POST. Unlike other competing 2 digit displays, users wont need to read "gibberish" to find out whats wrong.
  Onboard Switch
No more shorting pins or moving jumpers
With an easy press during overclock, this exclusive onboard switch allows gamer to effortlessly fine-tune the performance without having to short the pins or moving jumpers!

ASUS Q-Connector
Make connections quick and accurate
The Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate.


Bundled Software
3DMark 06 Advanced Edition
The Gamers Benchmark
3DMark is the most popular and authoritative 3D benchmark application used by professionals around the world. The 3DMark06 is the latest version in the popular 3DMark series, including advanced SM2.0 and HDR/SM3.0 Shader graphics tests and now including single, multiple core and multiple processor CPU tests as part of the 3DMark score! The accurate performance and image quality diagnostic tool, designed for DirectX9.0c, provides you with all the information you need to make all other competitors look bad.

Kaspersky Anti-Virus
The best protection from viruses and spyware
Kaspersky Anti-Virus Personal offers premium antivirus protection for individual users and home offices. It is based on advanced antivirus technologies. The product incorporates the Kaspersky Anti-Virus engine, which is renowned for malicious program detection rates that are among the industrys highest.
ASUS Unique Features
Fan Xpert
Active Quiet & Cool
ASUS Fan Xpert intelligently allows users to adjust both the CPU and chassis fan speed according to different ambient temperature , which is caused by different climate conditions in different geographic regions and system loading. Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.
AI NOS
Boost performance when you need it the most!
Applications such as 3D games and video editing demand a huge chunk of system resource. Inject "nitrous oxide" into your CPU! The patented AI NOS (Non-delay Overclocking System) technology intelligently detects system load and automatically boosts performance for the most demanding tasks. Unlike other dynamic overclocking techniques, AI NOS reacts much faster to satisfy your unending need for speeds .

ASUS O.C. Profile
Professional grade OC instantly
Overclock immediately with OC profile presets. Much more than simple frequency settings, this profile gives gamers comprehensive and detail tuning to frequency, voltages, and even timings to give you a real professional level of overclocking configuration!
C.P.R.(CPU Parameter Recall)
When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.
Noise Filter
Eliminate background noise while recording
This feature detects repetitive and stationary noises like computer fans, air conditioners, and other background noises then eliminates it in the incoming audio stream while recording.
EZ Flash 2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
MyLogo3
Personalize your system with customizable boot logo
The ASUS MyLogo 3 is the new feature present in the motherboard that allows you to personalize and add style to your system with customizable and animated boot logos.
Stack Cool 2
Effective and zero-noise heat dissipation
Stack Cool 2 is a fan-less and zero-noise cooling solution offered exclusively by ASUS. It effectively transfers heat generated by the critical components to the other side of the specially designed PCB (printed circuit board) for effective heat dissipation.
Q-Shield
Easy and Comfortable Installations
The specially designed ASUS Q-Shield does without the usual "fingers" - making it convenient and easy to install. With better electric conductivity, it ideally protects your motherboard against static electricity and shields it against Electronic Magnetic Interference (EMI).
Dual Gigabit LAN
The integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. This capability ensures rapid transfer of data from WAN to LAN without any added arbitration or latency.
IEEE 1394a interface
IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.
SATA on the Go
This motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices.

High Definition Audio
Enjoy high-end sound system on your PC! The SupremeFX X-Fi onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.

S/PDIF-out on Back I/O Port
SupremeFX X-Fi provides convenient connectivity to external home theater audio systems via coaxial and optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.


Quality & RoHS
100% High-quality Japan-made Conductive Polymer Capacitors!
This motherboard uses all high-quality Japan-made conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity.
GreenASUS
The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment.




Specification
CPU
Intel Socket 775 Processors for Intel Core2 Extreme / Core2 Quad / Core2 Duo / Pentium dual-core/Celeron dual-core /Celeron Processors
Support Intel next generation 45nm Multi-Core CPU
Compatible with Intel 06/05B/05A processors
* Refer to www.asus.com for Intel CPU support list
Chipset
Intel P45 / ICH10R with Intel Fast Memory Access Technology
Front Side Bus
1600/1333/1066/800 MHz
Memory
4 x240-pin DIMM, Max. 16 GB, DDR2 1200/1066/800/667 Non-ECC,Un-buffered Memory
*Refer to www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lidts).
**When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
2 x PCIe 2.0 x16 (single max @16,dual @ x8 speed)
3 x PCIe x1 ( the PCIEx1_1 (black) is compatible with audio slot)
2 x PCI 2.2
CrossFire
Support ATI CrossFireX technology, up to Quad CrossFireX
Storage
Southbridge
6 xSATA 3 Gb/s ports Intel Matrix Storage Technology supports Support RAID 0,1,5,10 Marvell 88SE6121 controller
1 x UltraDMA 133/100/66/33 for up to 2 PATA devices
1 x External SATA 3.0 Gb/s port (SATA On-the-Go)
Silicon Image Sil5723
2 x SATA 3.0 Gb/s ports
Supports RAID 0, 1
LAN
Dual Gigabit LAN, both featuring AI NET2
Support Teaming Technology
Audio
SupremeFX X-Fi Audio Card
- ADI AD2000B 8-channel High Definition Audio CODEC
- Creative X-Fi capability
- X-Fi interface
Coaxial/Optical S/PDIF out ports
IEEE 1394
2 x 1394a ports (1 port at back I/O, 1 port onboard)
USB
12 USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)
Overclocking Features
Pin Fin Thermal Module
Extreme Engine
- 16-phase power design for CPU
- 3-phase power design for north bridge
- 2-phase power design for memory
BIOS Flashback
iROG
Extreme Tweaker
- CPU Level Up
- AI Overclocking (intelligent CPU frequency tuner)
- ASUS AI Booster Utility
- O.C Profile
Speeding HDD
Voltiminder LED
COP EX (Component Overheat Protection - EX)
ASUS C.P.R.(CPU Parameter Recall)
Loadline Calibration
Special Features
LCD Poster
Onboard Switches: Power / Reset / Cls CMOS (at rear)
ASUS EPU-6 Engine
ASUS Fan Xpert
ASUS Q-Connector
ASUS Q-Shield
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
ASUS MyLogo3
Back Panel I/O Ports
1 x PS/2 Keyboard port(purple)
1 x eSATA port
2 x LAN (RJ45) ports
6 x USB 2.0/1.1 ports
1 x IEEE1394a port
1 x Clr CMOS switch
Internal I/O Connectors
3 x USB 2.0 connectors supports additional 6 USB 2.0 ports
1 x Floppy disk drive connector
1 x IDE connector for two devices
6 x SATA connectors (Blue)
2 x Speeding HDD connectors (Black)
8 x Fan connectors: 1 x CPU / 1 x PWR / 3 x Chassis / 3 x Optional
3 x thermal sensor connectors
1 x IEEE1394a connector
1 x Chassis Intrusion connector
24-pin ATX Power connector
8-pin ATX 12V Power connector
1 x En/Dis-able Clr CMOS
1 x LCD Poster connector
1 x ROG connector
1 x Power-on switch
1 x Reset switch
System panel connector
BIOS
16 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.4
ACPI 2.0a
Multi-language BIOS
Manageability
WOL by PME,WOR by PME,Chasis Intrusion,PXE
Accessories
SupremeFX X-Fi Audio Card
LCD Poster
ASUS Optional Fan
3 in 1 ASUS Q-Connector Kit
UltraDMA 133/100/66 cable
Floppy disk drive cable
SATA cables
SATA power cables
2-port USB2.0 + IEEE 1394a module
Q-Shield
Cable Ties
User's manual
Support Disc
Support DVD:
- Drivers and applications
- ASUS PC Probe II
- ASUS Update
- ASUS AI Suite
- Futuremark 3DMark 06 Advanced Edition
- Kaspersky Anti-Virus
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.5 cm )

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.


Product Warranty


1 Year Return to Base
