CoolerMaster 600W Silent Pro M600 Power Supply - ATX 12V v2.3, EPS 12V v2.91, 135mm Fan, Modular Cables, SLI Ready
  • 9x SATA, 2x PCI-E 6+2-pin

IMG 1 of 1
No Longer Available
Part Number:
86816
(?) Brand:
CoolerMaster Web Site
Manuf No:
RS-600-SILENTPRO
RS600SILENTPRO
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
RS600SILENTPRO, RS-600-SILENTPRO


The Silent Pro M series is a new range of single rail power supplies from Cooler Master that's addressing a growing market demand for powerful single rail PSU's. With up to 50A on the 12V rail, the Silent Pro series delivers where it counts and won't have any problems powering even the most demanding SLI
The Silent Pro M series is also the first power supply from Cooler Master to feature flat modular cables for improved airflow and cable management. It also comes with anti-vibration silicon pads to remove possible vibrations from the PSU to reverberate into the case.
  • The single rail is with up to 50A on the 12V rail, delivers where it counts and won't have any problems powering even the most demanding SLI

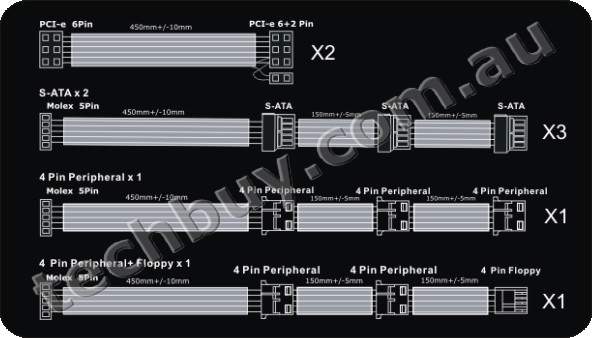

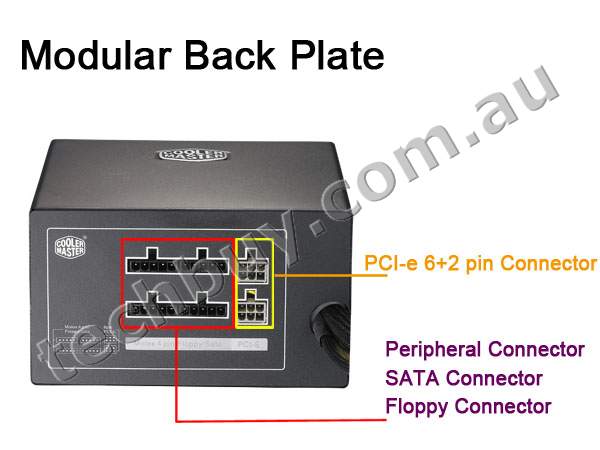

  • Modularized cable design to eli min ate clutter and improve airflow inside the chassis
  • Two 6+2 pin PCI-e connectors for multiple graphic card set up

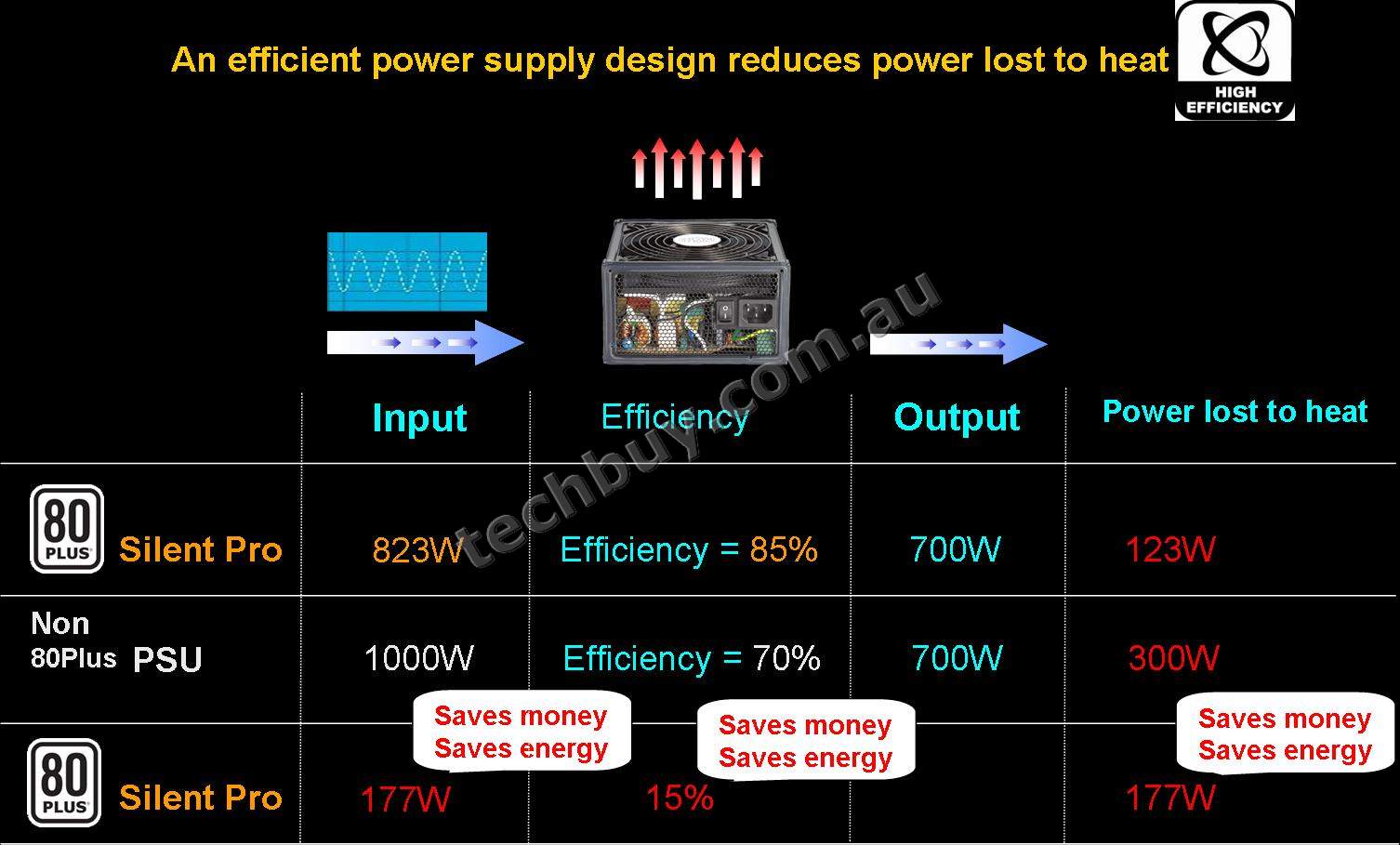

  • Energy efficient design that meats 80 Plus requirements
  • Single +12V rail provides more power for over-clockers
  • Compliant with Intel standard Intel ATX12V V2.3 & SSI EPS 12V V2.91
  • Green power design that meets energy star, blue angel requirements

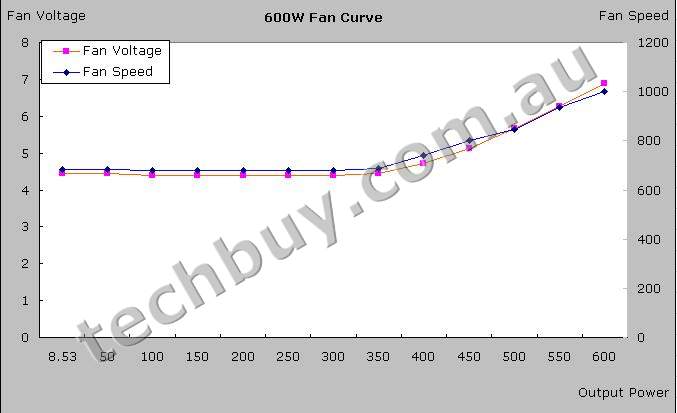

  • Super silent operation with intelligent 135mm fan speed control
  • Protection: OVP / UVP / OCP / OPP /OTP / SCP / OLP
  • High Power Density (150*150*86 mm)
  • High reliability (MTBF > 100,000 hrs)

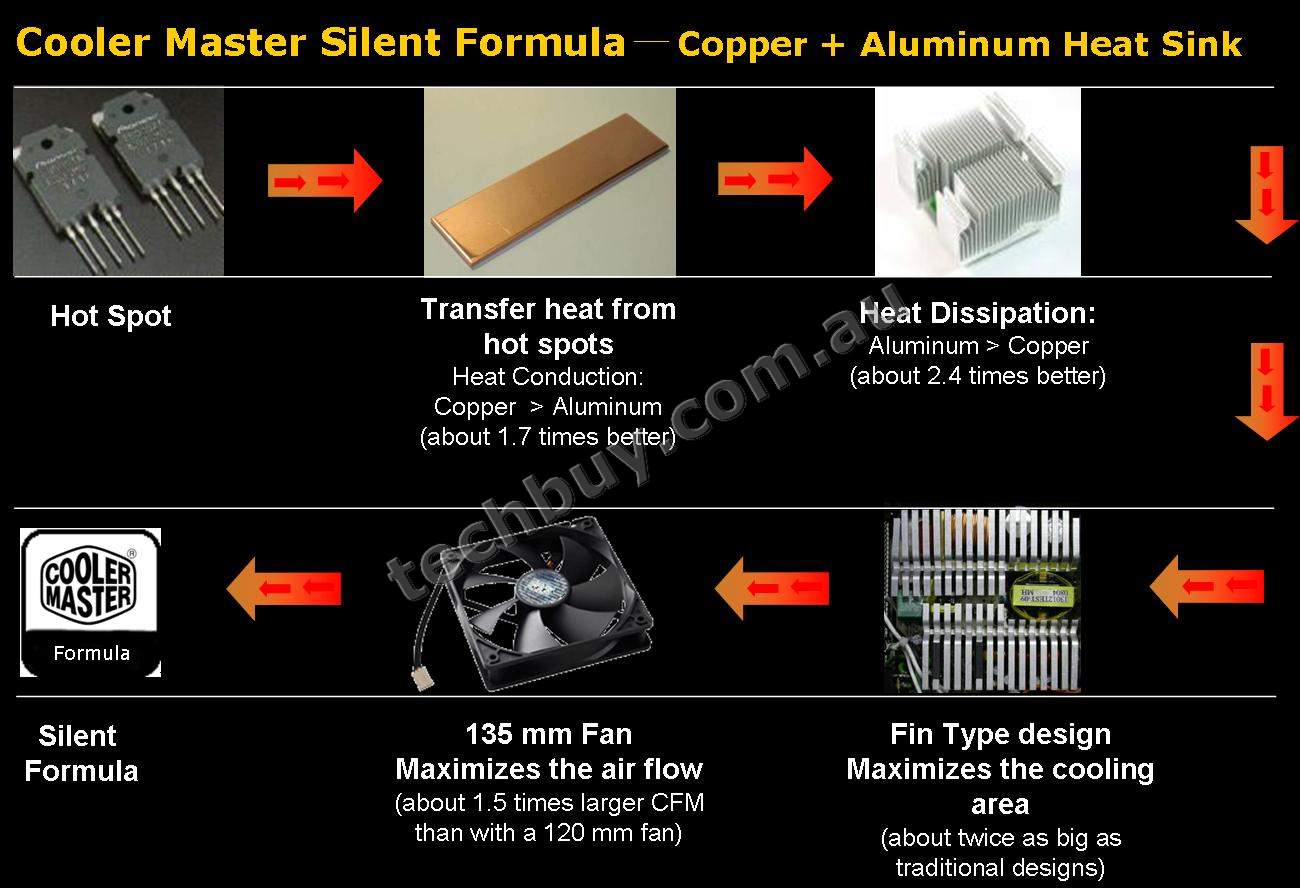

  • Copper + aluminum heat sink design which results in more efficient heat transfer and dissipation.
  • Flat cable design for easier cable arrangement
  • Japanese-made capacitors
  • Unique silicon pad eliminate the vibration between PSU and chassis



Model RS-600-AMBA-D3
Type Intel ATX12V V2.3 SSI EPS 12V V2.91
Dimension (W / H / D) 150(W) x 86(H) x 150(L) (mm)
Input Voltage 90~264V (Auto Range)
Input Current 8A@115Vac, 4A@230Vac
Input Frequency Range 47~63Hz
PFC Active PFC >0.9
Power Good Signal 100~500ms
Hold Up Time >17ms
Efficiency 85% Typically
MTBF >100,000hrs
Protection OVP/ UVP/OCP/OPP/OTP /SCP/ OLP

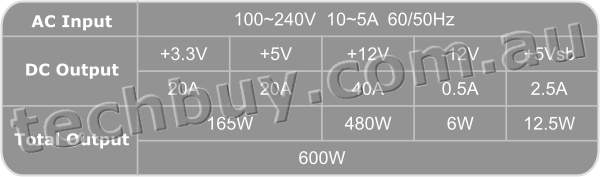

Output Capacity 600W
Max. Output Capacity 720W
Operation Temperature 0~40 (Nominal Input Voltage)
Regulatory NEMKO / TUV / CE / GOST / C-tick / / UL / FCC
Fan 135mm ultra silent fan
Certification 80 Plus
Connector M/B 20+4 Pin Connector x 1
CPU 4+4 Pin x 1
PCI-E 6+2 Pin x2
4 Pin Peripheral x 5
SATA x 9
4 Pin Floppy x 1




No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
