IMG 1 of 1
No Longer Available

Part Number:
87109
(?) Brand:
Manuf No:
F5RL-AP360E
F5RLAP360E
Shipping Weight:
6.5 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
F5RLAP360E, F5RL-AP360E

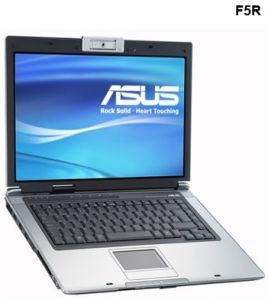

15.4 " Widescreen Gateway to the World of Entertainment
The 15.4" widescreen F5R will change what you see and what you hear. With limitless mobility, you can embrace the world of entertainment with just a few clicks whenever and wherever. Open up the ASUS F5R and treat yourself to the ultimate visual and audio experience

Built-in mega pixel 240 swivel webcam for wire-free video communication
No matter where you are, the F5R built-in mega-pixel 240swivel webcam will bring your vision to wherever you wish to be. Built-in microphone and the exclusive LiveFrame software, especially developed for F5R, allow easy capturing, recording and playing of photos and videos.

Wire-Free Video Communication on the Go
Enjoy true wireless freedom with ASUS F5R notebook series. Built-in microphone and high-resolution webcam allow you to stay connected with family and friends without the hassle of external connections and tangling wires!





ASUS Splendid Video Intelligence technology
The exclusive ASUS Splendid Video Intelligence technology is especially effective for human skin tones, green stretches of grass and trees and blue sky and sea. It takes PC graphics capability to the next level by enhancing depth and color intensity in real time. It further improves contrast, brightness, skin tone and color saturation for vivid image display. Incorporated with the exclusive ASUS Splendid Video Intelligence Engine (activation hot key: Fn+C), the LCD presents clear and sharp images in their true vibrant colors.











Specifications
Processor & Cache Memory
Intel Core Duo T2390 1.86GHz
Operating System
Genuine Microsoft Windows Vista Business (w. XP Professional downgrade)
Chipset
ATI RADEON X1100
Main Memory
Includes 1x1GB SODIMM
socket for expansion up to 2x 2048MB ,DDRII 533/677 DRAM support
Display
15.4" Widescreen Color Shine WXGA (1280*800)
Video Graphics & Memory
Embedded ATI XPRESS 1100
Hard Drive
2.5" 9.5 mm IDE HDD with Ultra DMA100 supported 250GB 5400 RPM SATA
Optical Drive
DVD-Super Multi
Card Reader
One built-in card reader support MMC/ SD /MS (4 in 1)
Fax/Modem/LAN/WLAN
Video-conferencing I/F Compliance, V.92 support ]
Worldwide regulation, FCC/JATE/CTR21/DGT compliance]
Azalia Compliant MDM]
10/100 Mbps LAN built-in]
Integrated 802.11a/b/g
Bluetooth module v2.0+EDR
LED Status Indicator
Front side (Need to be seen when LCD unit closed):
Power-on/Suspend (Green)
Bat. Charging/full/low (Orange)
Wireless indicator (Green)
Bluetooth Indicator (Green)

Near Power button :
Num Lock
Cap. Lock
Scroll lock
Storage device access
Interface
VGA Port (D-Sub 15)
One Headphone-out jack (WO/SPDIF)
One Microphone-in jack
One RJ11 Modem jack for phone line
One RJ45 LAN Jack for LAN insert
4 USB 2.0 ports
Hot Keys
1 x Power Button
1 x WLAN/Bluetooth On/Off Switch
Instant launch Keys

4 buttons:
Instant On, Power4 Gear +, Touch pad Lock , Internet

Function Keys:
Fn+F1 suspend switch
Fn+F2 Wireless/Bluetooth switch
Fn+F3 E-mail
Fn+F4 Internet
Fn+F5 Brightness down
Fn+F6 Brightness up
Fn+F7 LCD on/off
Fn+F8 LCD/External Display switch display
Fn+F9 Touch Pad lock
Fn+F10 Volume on/mute
Fn+F11 Volume down
Fn+F12 Volume up
Fn+Ins Numeric Key Pad on/off
Fn+Del Scroll Lock on/off
Fn+Space Power 4 Gear
Fn+C Splendid (not printed, Reserve)
Fn+T Power 4 phone (not printed, Reserve)
Fn+V Camera
Fn+ Stop
Fn+ Play/Pause
Fn+ Previous section / Previous Track
Fn+ Next section / Next Track
Audio
Built-in Azalia compliant audio chip, with 3D effect & full duplex (ALC 660D)
SoundBlaster Pro Compatible
Build-in stereo speakers
Keyboard
19 mm full size 88key with MS-Windows function keys (Vista)
2.5mm travel
Battery Pack & Life
Li-Ion 36 WHrs (4 cells: 2200Ah, 4S1P)
Smart battery, charging time, TBD
AC Adapter
Output: 19V DC, 3.42A, 65W
Input: 100~240V AC, 50/60Hz universal
Dimension & Weight
365~367 x 262 x 27( front)~35(rear)mm
2.65Kg (6 cell battery)
Security
Pre-OS Authentication by programmable key code
BIOS Booting User Password Protection
HDD User Password Protection and Security Lock
Kensington Lock hole provided
Supplied Accessories
Optical Mouse(optional)
Carry Bag(optional)
Multimedia Software
ASUSDVD 2000 XP/Cyberlink Power DVD (w/ DVD model) w/ latest qualified version
Virus & Tool Software
Norton 2006
Adobe Acrobat Reader 5.1
Nero V6.x lite (w/ combo, DVD-RW SKU)
ASUS Utility
Asus Winflash for BIOS and Driver live Update
Power4Gear+: Pre-defined power saving theme
Asus Screen Saver
Asus Live Update
Asus Life frame II
Net 4 switch
Multi-Frame
Power 4 Phone
Color Enhancement (Splendid)
ASUS Wireless Console
Instant fun+
Warranty & e-support
2-year limited global hardware warranty
1-year battery pack warranty
On-line problem resolution through web interface (BIOS, Driver update)
OS (Microsoft Windows XP) install/uninstall consultation
Bundled software install/uninstall consultation
ASUS software supporting
Built-in Camera
1.3 Mega Pixel web camera
