Networking - Wireless -> Routers with Modem -> ASUS

ASUS DSL-N13 Modem/Wireless Router - ADSL2/2+, 802.11b/g, Draft 802.11n, 4-Port 10/100 Switch, 2x USB

Cart
Quantity:
Add ASUS DSL-N13 Modem/Wireless Router - ADSL2/2+, 802.11b/g, Draft 802.11n, 4-Port 10/100 Switch, 2x USB to your wishlist
Click here to write a review on ASUS DSL-N13 Modem/Wireless Router - ADSL2/2+, 802.11b/g, Draft 802.11n, 4-Port 10/100 Switch, 2x USB

Large image is available

Product May Vary From Image

Our Price:
$200.80
RRP:$249.00
You Save:$48.20

Techbuy Part No:87612
Usually Ships: 1-3 Days Details
Brand:ASUS Web Site
Manuf No:DSL-N13
 DSLN13
Shipping Weight:2 KG How Much?
Date Added:6/8/2008
Rating: Not Rated
Currency:AUD Convert

Product Description

DSL-N13
802.11n Wireless ADSL2/2+ Modem Router
  • with Asus AiDisk FTP server applications, plus Quick setup -- smart auto-detection of local ADSL settings!
  • 11n technology for more throughput and data rate. Fast & Guaranteed multi-media content streaming.
Quick Setup: Smart local ADSL setting auto-detection
EZQoS: Intelligently optimized network resources to ensure uninterrupted IP phone and A/V streaming link.
Plug 'n' Play USB Print server and FTP server application.
Asus AiDisk: File sharing anytime anywhere



Other Specs:

  1. IEEE 802.11b/g/n and ADSL standard compliant
  2. Up to 300 Mbps for wireless link and up to 24 Mbps for ADSL 2/2+
  3. Four 10/100 Mbps Ethernet ports and 2 USB 2.0 host ports
  4. Security: NAT, packet filtering, SPI, denial of service, password authentication
  5. UPnP IGD compliant device

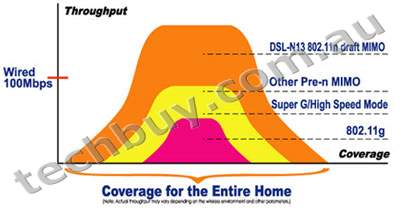

SuperSpeed N
With 802.11n MIMO (Multiple Input Multiple Output) technology, the DSL-N13 router enables data transfers at more than wired 100Mbps. It's made for wireless multimedia streams, file sharing and online games through out your entire home.

The DSL-N13 is fully compatible with legacy 802.11b and g standards, allowing users to experience the latest wireless innovations without turning previous home networking investments obsolete.

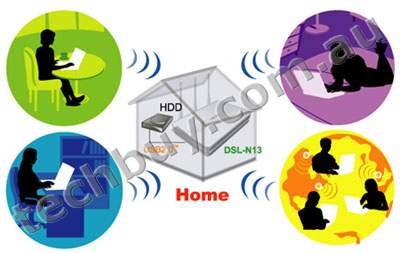

ASUS AiDisk
File sharing with your family and friends anytime, anywhere!

Asus AiDisk helps you complete FTP settings in 5 minutes. Using ftp://yourname.asuscomm.com instead of a twisty IP address or URL, you can easily upload / download files from the USB disk attached on DSL-N13.

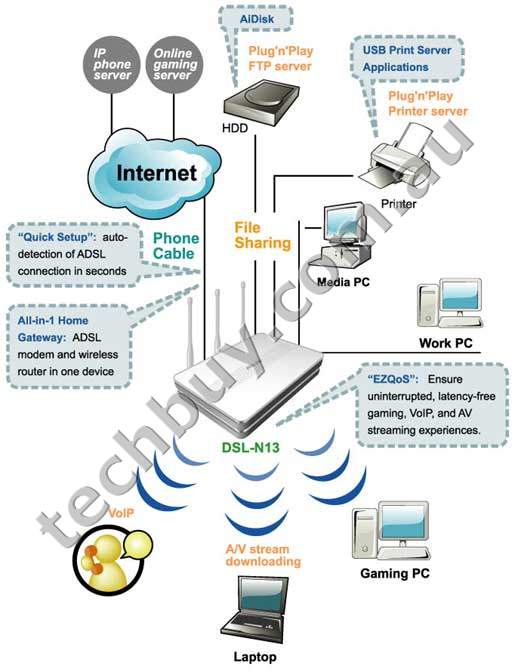

User Scenario





Specification
LAN Ports
  • Support: Both Ethernet and 802.3 with Max. Bit Rate 10/100 Mbps with auto cross-over function (MDI-X)
  • Connector: RJ45 for 10/100 BaseT
ADSL Features
  • Support: ITU G.992.1/G.992.3/ G.992.5 dmt AnnexA
    ANSI T1.413 issue 2
  • Connector: RJ11 phone jack
Antenna
3 external dipole antennas; support diversity
USB port
2 x USB 2.0
EZ Setup button
Push for 5 seconds to enter easy setup mode
Reset Button
Push for above 5 seconds to restore factory settings
LED Indicator
Power, LAN x 4, ADSL, IP, USB, AIR
Management
Web-based manager
UPnP Internet Gateway Device
UPnP Media Server.
Firewall
NAT and SPI. Can built extra one firewall to protect Internet traffic and another one for wireless
DC Power Adapter
AC Input: 100V~240V(50~60HZ); DC Output: 12V with max. 1.25A current
Emission
ETS; CE Mark; FCC Part 15
Operating Frequency
2.4 - 2.5 GHz
Data Rate
Draft 802.11n: up to 300Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b: 1, 2, 5.5, 11Mbps
*Note: Actual throughput will vary depending on the wireless environment and other parameters
Operation Channel
11 for N. America, 14 Japan, 13 Europe (ETSI), 3 (non-overlapping)
Range
Indoor 130 ft (40 m), outdoor (LOS, Light-Of-Sight) 2000 ft (600 m) at 11Mbps.
Indoor 80 ft (25 m), outdoor (LOS, Light-Of-Sight) 500 ft (150 m) at 54Mbps.
*The range may vary by different environment
Encryption
64/128-bit WEP
TKIP, AES, WPA, WPA-PSK
Authentication
MAC address, 802.1x
USB Applications
Printer Server, FTP Server

- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.


Product Warranty


2-year Manufacturer
