Intel DG45FC Motherboard - OEM
  • LGA775, G45, 1333FSB, 2xDDR2-800, PCI-Ex1, 5x SATA-II, eSATA, RAID, GigLAN, 8Chl, DVI, HDMI, Mini ITX

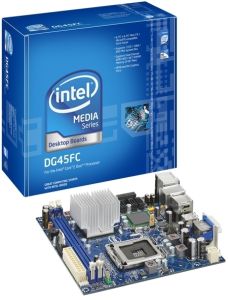

IMG 1 of 1
No Longer Available
Part Number:
87906
(?) Brand:
Intel Web Site
Manuf No:
BLKDG45FC
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
BLKDG45FC

Intel  Desktop Board DG45FC

Built in the mini-ITX form factor, Intel Desktop Board DG45FC is a small but powerful desktop board with integrated HDMI display output and hardware accelerated decode during high-definition playback. With support of Intel Core2 Duo processors and up to 1333 FSB, you can expect a lot from this tiny desktop board!

Intel Desktop Board DG45FC supports Dolby* Home Theatre and is Microsoft Windows Vista* Premium WHQL certified.

Features and benefits

Form factor

Mini-ITX (6.70 inches by 6.70 inches [171.45 millimeters by 171.45 millimeters])
Processor

At product launch, this desktop board supports:

  • Support for an Intel Core2 Duo processor in an LGA775 socket
  • Support for an Intel Pentium Dual-Core processor in an LGA775 socket
  • Support for an Intel Celeron Dual-Core processor in an LGA775 socket
  • Support for an Intel Celeron processor 400 sequence in an LGA775 socket
Memory
  • Two 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR2 800/667/533 MHz DIMMs
  • Support for up to 4 GB of system memory
Chipset
  • Intel G45 Express Chipset
Audio

Intel High Definition Audio subsystem in the following configuration:

  • 8-channel (7.1) audio subsystem with five analog audio outputs and one optical S/PDIF digital audio output using the IDT 92HD73E audio codec
Video

Intel Graphics Media Accelerator X4500HD onboard graphics subsystem with integrated HDMI + DVI-I display ports
LAN support

Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel 82567LF Gigabit Ethernet Controller
Peripheral interfaces
  • One serial port via header
  • Up to 10 USB 2.0 ports (6 back ports and 4 via headers)
  • 5 Serial ATA 3.0 Gb/s ports, including 1 eSATA back port with RAID 0, 1, 5, 10 support
  • Consumer IR receiver and emitter (via internal)
Expansion capabilities

One PCI Express* x1 bus add-in card connectors

System resources and hardware (such as PCI and PCI Express*) require physical memory address locations that can reduce available addressable system memory. This could result in a reduction of as much as 1GB or more of physical addressable memory being available to the operating system and applications, depending on the system configuration and operating system.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Intel) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
