Product DetailsGo Back Email to Friend Print

Hard Drives - Internal -> Serial ATA (SATA) - 2.5" -> Western Digital

Western Digital 300GB 10,000rpm Serial ATA-II-300 HDD w. 16MB Cache (WD3000BLFS) Velociraptor
2.5" Form Factor - Not for Notebooks

Cart

Quantity:

Add Western Digital 300GB 10,000rpm Serial ATA-II-300 HDD w. 16MB Cache (WD3000BLFS) Velociraptor
2.5" Form Factor - Not for Notebooks to your wishlist

Click here to write a review on Western Digital 300GB 10,000rpm Serial ATA-II-300 HDD w. 16MB Cache (WD3000BLFS) Velociraptor
2.5" Form Factor - Not for Notebooks

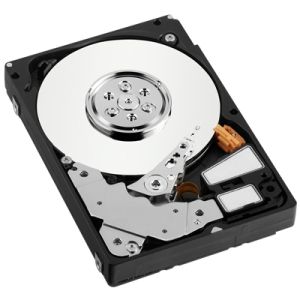

Large image is available
Product May Vary From Image

Our Price:
$491.55

RRP: $579.00

You Save: $87.45

Techbuy Part No: 88370

Usually Ships: 1-3 Days Details

Brand: Western Digital Web Site

Manuf No: WD3000BLFS

Shipping Weight: 1 KG How Much?

Date Added: 21/8/2008

Rating: Not Rated

Currency: AUD Convert

Product Description

Engineered for maximum speed! WD VelociRaptor, the newest member of our unique class of 10,000 RPM SATA hard drives, combines a SATA 3 Gb/s interface and 16 MB cache to deliver performance thats up to 35% faster than its speedy older brother.

Key Features

Killer speed - Built on the performance bloodlines of WD Raptor, these 10,000 RPM drives, with SATA 3 Gb/s interface, and 16 MB cache deliver mind-bending performance. Not only are they 35% faster than the previous generation WD Raptor drives, but they also beat out all other competitors in the field.

Rock-solid reliability - Designed and manufactured to mission-critical enterprise-class standards to provide enterprise reliability in high duty cycle environments. With 1.4 million hours MTBF, these drives have the highest available reliability rating on a high capacity SATA drive.

Double the capacity - State-of-the-art technology packs twice the capacity per disk compared to its older brother WD Raptor resulting in up to 300 GB of high-performance storage space in this enterprise-class 2.5-inch drive.

Small form factor - This ultra fast 2.5-inch hard drive is engineered to fit into blade servers and other enterprise storage configurations. (Not designed for use in laptop or notebook computers)

Ultra-cool operation - WD VelociRaptor consumes 35% less power than the previous generation of WD Raptor.

Rotary Acceleration Feed Forward (RAFF) - Optimizes operation and performance when the drives are used in vibration-prone, multi-drive chassis.

NoTouch ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.

Ideal For

Blade servers, performance enthusiast systems, workstations, and low-end servers

Compatibility

Windows

Windows Vista/XP/2000
SATA interface connector on motherboard or SATA host controller*
Available 2.5-inch internal drive bay

*Compatibility may vary depending on user's hardware configuration and operating system.


Performance Specifications
	Rotational Speed	10,000 RPM (nominal)
	Buffer Size	16 MB
	Average Latency	3.00 ms (nominal)
	Load/unload Cycles	50,000 minimum

Seek Times
	Read Seek Time	4.2 ms
	Write Seek Time	4.7 ms (average)
	Track-To-Track Seek Time	0.7 ms (average)

Transfer Rates
	Buffer To Host (Serial ATA)	3 Gb/s (Max)


Physical Specifications
	Formatted Capacity	300,069 MB
	Capacity	300 GB
	Interface	SATA 3 Gb/s
	User Sectors Per Drive	586,072,368


Physical Dimensions
English
	Height	0.590 Inches (Max)
	Length	3.94 Inches 0.010 inch
	Width	2.75 0.010 inch
	Weight	0.48 Pounds

Metric
	Height	15 mm (Max)
	Length	100 mm 0.2 mm
	Width	69.85 0.25 mm
	Weight	219 gm


Environmental Specifications
Shock
	Operating Shock (Read)	65G, 2 ms
	Non-operating Shock	300G, 2 ms

Acoustics
	Idle Mode	29 dBA (average)
	Seek Mode 0	34 dBA (average)

Temperature (English)
	Operating	41 F to 131 F
	Non-operating	-40 F to 158 F

Temperature (Metric)
	Operating	5 C to 55 C
	Non-operating	-40 C to 70 C

Humidity
	Operating	5-95% RH non-condensing
	Non-operating	5-95% RH non-condensing

Altitude (English)
	Operating	-1,000 feet to 10,000 feet
	Non-operating	-1,000 feet to 40,000 feet

Altitude (Metric)
	Operating	-305M to 3,050M
	Non-operating	-305M to 12,200M

Vibration
	Operating
	Linear	20-300 Hz, 0.75G (0 to peak)
	Random	10-300 Hz, 0.008 g / Hz

	Non-operating
	Low Frequency	0.05 g/Hz (10 to 300 Hz)
	High Frequency	20-500 Hz, 4.0G (0 to peak)


Electrical Specifications
Current Requirements
	12 VDC
	Read/Write	225 mA
	Idle	200 mA
	Standby	6 mA
	Sleep	6 mA

	5 VDC
	Read/Write	675 mA
	Idle	425 mA
	Standby	70 mA
	Sleep	70 mA

	Power Dissipation
	Read/Write	6.08 Watts
	Idle	4.53 Watts
	Standby	0.42 Watts
	Sleep	0.42 Watts

As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion bits per second.

Product Warranty

1 Year Return to Base
