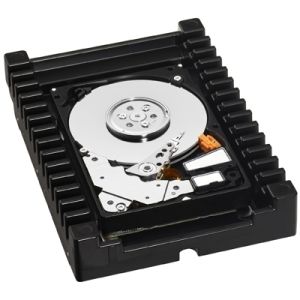

Western Digital 150GB 10,000rpm Serial ATA-II-300 HDD w. 16MB Cache (WD1500HLFS) Velociraptor
  • Backplane Ready

IMG 1 of 1
No Longer Available
Part Number:
89000
(?) Brand:
Western Digital Web Site
Manuf No:
WD1500HLFS
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
, AMIHD150WS6, AMI-HD150WS6, WD1500HLFS, WD32541A
WD VelociRaptor
3.5-inch SATA Hard Drives
150 GB, 3 Gb/s, 16 MB Cache, 10,000 RPM

The evolution of 10,000 RPM SATA technology.

The WD Raptor has evolved! PC enthusiasts favorite 10,000 RPM SATA drive is now faster than ever.

3.5-inch
(backplane-ready)


Engineered for maximum speed! WD VelociRaptor, the newest member of our unique class of 10,000 RPM SATA hard drives, combines a SATA 3 Gb/s interface and 16 MB cache to deliver performance thats up to 35% faster than its speedy older brother.

Key Features
Killer speed - Built on the performance bloodlines of WD Raptor, these 10,000 RPM drives, with SATA 3 Gb/s interface, and 16 MB cache deliver mind-bending performance. Not only are they 35% faster than the previous generation WD Raptor drives, but they also beat out all other competitors in the field.

Rock-solid reliability - Designed and manufactured to mission-critical enterprise-class standards to provide enterprise reliability in high duty cycle environments. With 1.4 million hours MTBF, these drives have the highest available reliability rating on a high capacity SATA drive.

Double the capacity - State-of-the-art technology packs twice the capacity per disk compared to its older brother WD Raptor resulting in up to 300 GB of high-performance storage space in this enterprise-class 2.5-inch drive.

Ultra-cool operation - WD VelociRaptor consumes 35% less power than the previous generation of WD Raptor.

IcePack mounting frame - The 2.5-inch WD VelociRaptor is enclosed in a backplane-ready 3.5-inch enterprise-class mounting frame with a built-in heat sink that keeps this powerful little drive extra cool when installed in high-performance desktop chassis.

Rotary Acceleration Feed Forward (RAFF) - Optimizes operation and performance when the drives are used in vibration-prone, multi-drive chassis.

NoTouch ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.

Ideal For

Performance enthusiast systems, workstations, and servers

Compatibility

Windows
  • Windows Vista/XP/2000
  • SATA interface connector on motherboard or SATA host controller*
  • Available 3.5-inch internal drive bay

    *Compatibility may vary depending on user's hardware configuration and operating system.

Performance Specifications
Rotational Speed 10,000 RPM (nominal)
Buffer Size 16 MB
Average Latency 5.50 ms (nominal)
Load/unload Cycles 50,000 minimum
Seek Times
Read Seek Time 4.2 ms
Write Seek Time 4.7 ms (average)
Track-To-Track Seek Time 0.7 ms (average)
Transfer Rates
Buffer To Host (Serial ATA) 3 Gb/s (Max)
Physical Specifications
Formatted Capacity 150,039 MB
Capacity 150 GB
Interface SATA 3 Gb/s
User Sectors Per Drive 293,046,768
Physical Dimensions
English
Height 1.028 Inches (Max)
Length 5.787 Inches (Max)
Width 4.00 Inches (+/- 0.010 inch)
Weight 1.08 Pounds
Metric
Height 26.1 mm (Max)
Length 147 mm (Max)
Width 101.6 mm
Weight 0.489 kg
Environmental Specifications
Shock
Operating Shock (Read) 65G, 2 ms
Non-operating Shock 300G, 2 ms
Acoustics
Idle Mode 29 dBA (average)
Seek Mode 0 36 dBA (average)
Temperature (English)
Operating 41 F to 131 F
Non-operating -40 F to 158 F
Temperature (Metric)
Operating 5 C to 55 C
Non-operating -40 C to 70 C
Humidity
Operating 5-95% RH non-condensing
Non-operating 5-95% RH non-condensing
Altitude (English)
Operating -1,000 feet to 10,000 feet
Non-operating -1,000 feet to 40,000 feet
Altitude (Metric)
Operating -305M to 3,050M
Non-operating -305M to 12,200M
Vibration
Operating
Linear 20-300 Hz, 0.75G (0 to peak)
Random 10-300 Hz, 0.008 g / Hz
Non-operating
Low Frequency 0.05 g/Hz (10 to 300 Hz)
High Frequency 20-500 Hz, 4.0G (0 to peak)
Electrical Specifications
Current Requirements
12 VDC
Read/Write 225 mA
Idle 200 mA
Standby 6 mA
Sleep 6 mA
5 VDC
Read/Write 675 mA
Idle 425 mA
Standby 70 mA
Sleep 70 mA
Power Dissipation
Read/Write 6.08 Watts
Idle 4.53 Watts
Standby 0.42 Watts
Sleep 0.42 Watts
As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion bits per second.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 5 Years

Full manufacturers warranty details are available at the manufacturers (Western Digital) web site.
