All stock codes associated to this product
RR-UV8-XBU1, RRUV8XBU1, 745883579549
** Note: This Product Is Compatible with LGA1150 Sockets **
V8

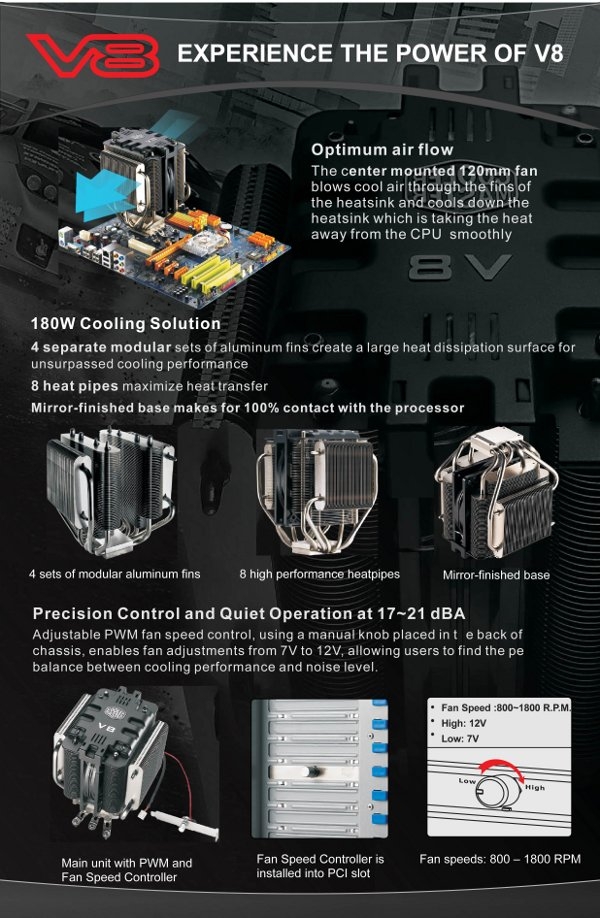

Challenging a new generations of PC mod-ding, the Cooler Master V8 revs up ahead with its tough guard cooling engine. Superior in its design, this wicked-fun V8 monster has enough horsepower to out-perform its duties with any high-performance CPU while under the most critical heat conditions. On top of its stylish finish, the V8 Cooler has quite some rich features. For heat dissipation it is supported with it's smart 180W cooling solution. Modularized by 4 separate set of aluminium fins and linked by 8 diagonal up-rise heat pipes, the V8 structural design allows speedy heat transfer to a large heat dissipation surface. Another excellent key feature of the V8, is its precision fan control. The V8 is compatible with all current CPU sockets, and provides unsurpassed cooling performance.
Overview
The V8 certainly is one of Cooler Master's innovative hallmark. After receiving an iF Product Design Award in 2008 for CM Sphere, Cooler Master proudly announces an ongoing winning tradition, with V8 winning iF product design award 2009!
3D Measurement Diagram
Specifications:
| Model |
RR-UV8-XBU1 |
| CPU Socket |
Intel Socket:
LGA 1366 / 1156 / 1155 / 775 *
AMD Socket:
FM1 / AM3+ / AM3 / AM2+ / AM2
|
| CPU Support |
Intel:
Core i7 Extreme / Core i7 / Core i5 / Core i3 / Core2 Extreme / Core2 Quad / Core2 Duo / Pentium / Celeron
AMD:
FX-Series / A-Series / Phenom II X4 / Phenom II X3 / Phenom II X2 / Phenom X4 / Phenom X3 / Athlon II X4 / Athlon II X3 / Athlon II X2 / Athlon X2 / Athlon / Sempron
|
| Dimensions |
120 x 128 x 161.1mm |
| Weight |
865g |
| Heat Sink Dimensions |
120 x 120 x 158mm |
| Heat Sink Material |
Copper Base / Aluminum Fins / 8 Heat Pipes |
| Heat Pipes Dimensions |
6mm |
| Fan Dimension (W / H / D) |
120 x 120 x 25mm |
| Fan Speed |
800 - 1800 RPM |
| Fan Airflow |
69.69 CFM |
| Air pressure (mmH2O) |
2.94mm H2O |
| Bearing Type |
Rifle Bearing |
| Fan Life Expectancy |
40,000 hrs |
| Fan Noise Level (dB-A) |
17 - 21 dBA |
| Fan Speed Adjustment |
Install on PCI Slot |
| Connector |
4-pin |
| Fan Control |
PWM + VR Controller |
| Rated Voltage |
12V |
| Start Voltage |
7V |
| Operating Voltage |
10.38V - 13.2V |
| Rated Current |
0.12A |
| Input Power |
1.44W |
| Note |
* Supplied accessories may differ by country or area. Please check with your local distributor for further details. |
