CoolerMaster 700W UCP Power Supply - ATX 12V v2.3, EPS 12V v2.92, 120mm Fan, SLI Ready
  • 6x SATA, 2x PCI-E 8-pin, 4x PCI-E 6-pin

IMG 1 of 1
No Longer Available
Part Number:
89562
(?) Brand:
CoolerMaster Web Site
Manuf No:
RS-700-UCP
RS700UCP
Shipping Weight:
4 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
RS700UCP, RS-700-UCP


Cooler Master's UCP (Ultimate Circuit Protection) re-defines the standard for efficient and durable computer power supplies.



Innovative circuitry layout has resulted in industry-leading efficiency levels, thanks to the high performance active clamp switch design, dual-VRM circuit boards for maximized 12V conversion to 5V and 3.3V and re-design of circuit board layout.



The UCP series is meant for powering the high-end system setups; with circuit protection in mind to prolong the life-time of the power supply.Features that enable this includes: soft-start circuitry to limit inrush currents (a Cooler Master unique feature)and the usage of quality components such as solid capacitors and intelligent fan control.

Cooler Master's excellence in design & engineering has resulted in this milestone achievement and has already gained worldwide acclaim, which includes: Tom's Hardware MOST Innovative product out of 1725 exhibitors at Computex 2008.
Features:
  1. VRM(Voltage Regulation Module) Circuit offers high efficiency and Power density.
  2. Compliance with the newest Intel standard ATX 12V V2.3
  3. Compliance with the newest SSI standard EPS 12V V2.92

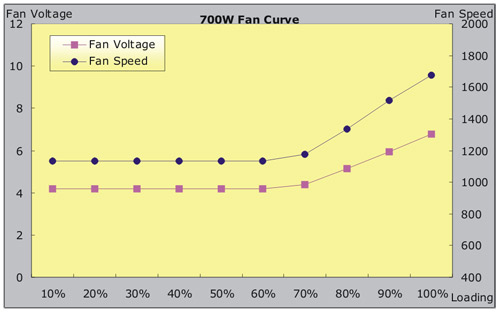

  4. Ultra-silent operation with intelligent 120mm fan speed control
  5. Eco-design for energy and money saving by Active PFC.(>0.9) / high efficiency(>88%)
  6. Power Failure Detector will light up when OVP /OCP / OPP / SCP / UVP /OTP occur
  7. Soft-start circuit A protection mechanism that limits the input inrush current by delaying the actual power-on of the PSU to prevent damage to it.
  8. Green mode PFC control circuit by intelligent PWM power conversion
  9. By using a single 12V switching circuit design you get a more efficient AC to DC conversion which leads to an overall more efficient PSU


Model RS-700-AAAA-A3
Type Intel ATX 12V V2.3 / SSI EPS 12V V2.92
Dimension (W / H / D) 150 x150 x 86 (mm)
Input Voltage 90~264V
Input Current 10A@115Vac / 5A@230Vac
Input Frequency Range 47~63Hz
PFC >0.9
Power Good Signal 100~500ms
Hold Up Time >17ms
Efficiency >87%
MTBF >100,000hrs
Protection OVP / OCP / OPP / SCP / UVP / OTP

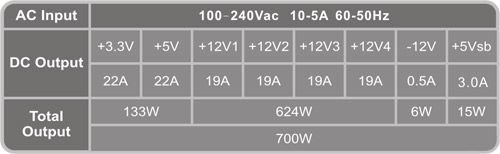

Output Capacity 700W
Max. Output Capacity 840W
Operation Temperature 0~40 (Nominal Input Voltage)
Regulatory NEMKO / TUV / CE / GOST / C-tick / UL / FCC
Fan 120mm Fan
Certification SLI / 80 Plus
Connector M/B 24 Pin Connector x 1
CPU 4+4 Pin x 1
PCI-E 8 Pin x2
PCI-E 6 Pin x4
Peripheral x 5
SATA x 6
Floppy x 1


No additional files, specification sheets, guides or documentation found for product.

Warranty: 5 Year

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
