MSI 945GCM478 Motherboard
Socket 478, 533/800 FSB, Intel 945GC, 2x DDR2-667, PCI-Ex16, 4x SATA-II, 1-Channel IDE, LAN, 8Chl, VGA, mATX

CPU


 Supports Intel P4 Northwood/Prescott/Celeron processors.
 Supports FSB 533/ 800MHz.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

Intel 945GC Chipset
- Integrated Intel GMA 950 graphics core

Intel ICH7 Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.
- 4 SATAII ports with transfer rate up to 3Gb/s.
- 1 channel Ultra ATA 100 bus master IDE controller.
- PCI Master v2.3, I/O APIC.

Main Memory

Supports two unbuffered DIMM of 1.8 Volt DDR2 SDRAM
Supports dual channel DDR2 memory architecture.
Supports DDR2 533/667 memory interface. (4GB Max)

On-Board IDE/SATA

One Ultra DMA 66/100 IDE controllers integrated in ICH7
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.

 SATAII controller integrated in ICH7
- Up to 3Gb/s transfer speed.
- Can connect up to four SATAII devices.

Audio

Chip integrated by Realtek ALC888
- Flexible 7.1-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN

Supports 10 / 100 Mb/s Fast Ethernet by Realtek RTL8101E.

- Supports ACPI Power Management.

Internal I/O Connectors

- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- 1 x CPU / System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- 2 x Front panel connectors
- 2 x USB 2.0 connector support additional 4 ports
- 1 x Floppy disk drive connector
- 4 x Serial ATAII connectors
- 1 x ATA100 connector
- 1 x SPDIF-out connector
- Chassis intrusion switch connector
- Clear CMOS jumper

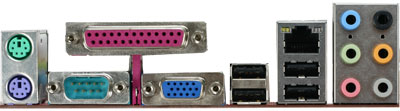

Back Panel I/O Ports

- 1 x Parallel port

BIOS

The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and
expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface(DMI) function which records your
mainboard specifications.

Dimension

24.5cm(L) x 20.0cm(W) Micro-ATX Form Factor

Mounting

6 mounting holes.
