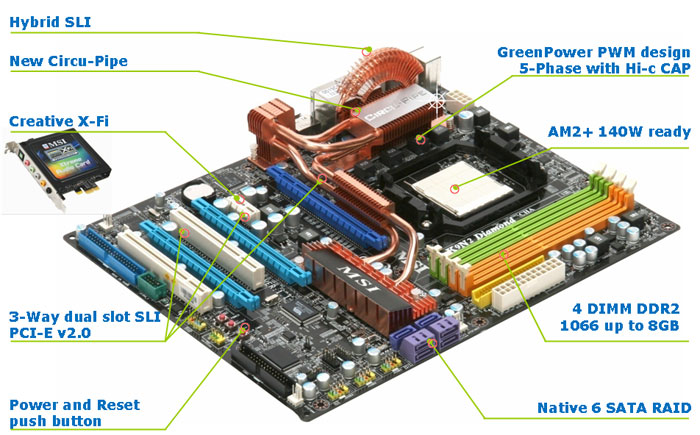

MSI K9N2 Diamond Motherboard
AM2, nForce 780a SLI, HT 5200, 4x DDR2-1066, 3x PCI-Ex16, 6x SATA, 2x eSATA, RAID, 2x GigLAN, 8Chl Creative X-Fi, Firewire, DVI, ATX


Large image is available

Product May Vary From Image

Our Price:Discontinued

Techbuy Part No:90636
Usually Ships: No Longer Available Details
Brand:MSI Web Site
Manuf No:K9N2 DIAMOND
Shipping Weight:3 KG How Much?
Date Added:23/9/2008
Rating: Not Rated
Currency:AUD Convert

Product Description





Features

M-Connectors
Easy connect to front panel & chassis cable
2x USB, IEEE 1394, front panel (JFP1/2)& audio(JAUD1) M-connector in the package
Easy to tell the definition of each pin

3-way SLI Technology
NVIDIA 3-way SLI Technology build the fastest gaming solution available with NVIDIA nForce chipsets and three NVIDIA GeForce high-end graphics cards.(*Note:For Windows Vista Only.)
Compared with single graphic card solution, it brings 2.8X faster performance gained.

Green Power Design
With Multi-phase PWM IC, which lead to better power converting, reducing noise and expand the lifespan and stability.

User Friendly Design
Functions designed with button to be easy use.
Help power-users tweaking process in-chasis enviornment
Onboard SATA ports are stacked on the mainboard to avoid mechanical issue with giant graphic cards like 8800 Ultra.

X-Fi Audio
Make MP3 music sound better than CDs
Transform to surround sound (speakers/headphone) from stereo audio source
EAX ADVANCED HD 4.0 provides the fidelity of gaming audio effect
Worlds 1st PCIe interface X-Fi audio card

Hybrid SLI
Support NVIDIA HybridSLI Technology.
Boost 3D graphics performance with GeForce8400/8500 graphic card

ESA Ready
The ESA (Enthusiast System Architecture) is the industrys first open-standard PC monitoring and control protocol, which brings bi-directional, real-time communication and control of system thermal, electrical, acoustic and operating characteristics.
ESA-certified components and applications allow power users to diagnose component-specific issues and tune their systems to meet their individual needswhether it be unleashing hidden performance of PC or modifying for a whisper-quiet home theater operation.

MSI Advanced Live Update Online
The MSI Live Update online is designed to automatically download and update the BIOS and driver when theres a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website.

Dual Core Center
Key components status hardware monitor.
Monitor the Dual Core CPU each unit status.
Optimize System status define.
Auto speed up with system loading change.

live_update_3 standard
Live Update 3 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating.

Cool'n'quiet
AMD Cool'n'Quiet technology that based on famous PowerNow technology just brings fresh air to hot-fighting desktop platform. Cool'n'Quiet technology can automatically adjust processor ratio to throttle CPU speed with four modes.


Specifications





CPU

AMD  Phenom/Athlon/Sempron CPU.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus

HyperTransport 3.0 supporting speed up to 5200MT/s
- AM2 CPU supports HyperTransport 1.0/2.0
- AM2+ CPU supports HyperTransport 3.0


Chipset

NVIDIA nForce 780a SLI single chipset


Main Memory


Supports Dual DDR2 667/800/1066 (1066 for AM2+ only)
- 4 DDR2 DIMMs (240pin / 1.8V)
- Supports a maximum memory size up to 8GB.




Slots

3 PCI Express x16 slots compatible with PCIE 2.0 specification
- Supports 3-way SLI, the three PCIE x 16 lanes will be configured as x16/ x8/ x8.
- If there are only two graphic cards installed, please use the mazarine slot and the first blue slot, the three PCIE x 16 lanes will be configured as x16/ x16/ x0.
1 PCI Express x1 slots
2 PCI slots, support 3.3V/ 5V PCI bus interface.


On-Board IDE


Two IDE port by NVIDIA nForce 780a SLI and JMicron JMB363
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices

On-Board SATA

6 SATA II ports by NVIDIA nForce 780a SLI
2 eSATA II ports by JMicron JMB363
- Supports storage and data transfers at up to 3Gb/s

RAID Function

- SATA II 1~4 support RAID 0/ 1/ 0+1 /5 or JBOD mode by NVIDIA nForce 780a SLI
- SATA II 5~6 only support AHCI Mode
- 2 eSATA ports support RAID 0/ 1 mode by JMicron JMB363

MSI Reminds You...
The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.


Audio

Creative SB X-Fi Xtreme H/W Audio Card (MS-4132)
- 24-bit / 96KHz audio quality
- 100dB SNR clarity
- Up to 7.1ch EAX 5.0 Surround Sound


LAN

Dual LAN jacks
- Supports Dual LAN 10/100/1000 Fast Ethernet by Realtek 8211BL/8111C


IEEE1394 / FireWire


Chipset integrated by VIA VT6308P
- Transfer rate is up to 400Mbps


Internal I/O Connectors

- ATX 24-pin power connector
- ATX 6-pin 12V CPU power connector
- CPU x 1 / System x 4 FAN connectors
- CD-in connector
- Clear CMOS button
- Power / Reset button
- Chassis intrusion switch connector
- Front panel audio connector
- Front panel connector
- Serial port connector
- 1 x IEEE1394 connector support additional 1 port
- 3 x USB 2.0 connector support additional 6 ports
- 1 x Floppy disk drive connector
- 6 x Serial ATA II connectors
- 2 x ATA133 IDE connectors

MSI Reminds You...
The floppy disk cable will be optional.

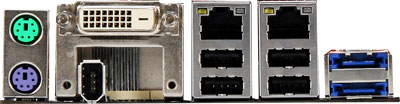

Back Panel I/O Ports

- 1 x PS/2 keyboard


- 1 x PS/2 mouse
-  1 x DVI-D output
- 1 x IEEE1394 Port
- 4 x USB 2.0 ports
- 2 x RJ45 LAN jack
- 2 x eSATA ports


Dimension

30.5cm(L) x 24.4cm(W) ATX Form Factor

Mounting

9 mounting holes.




Product Accessories




Product Warranty


1 Year Return to Base
