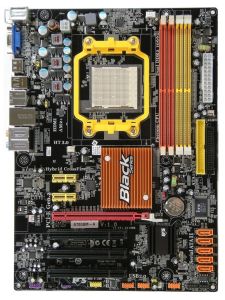

Elitegroup A780GM-A Black Series Motherboard
  • AM2+, 780G, HT 5200, 4x DDR2-800, PCI-Ex16 v2.0, 5x SATA-II, eSATA, RAID, GigLAN, 8Chl, VGA, HDMI, ATX

IMG 1 of 1
No Longer Available
Part Number:
94612
(?) Brand:
Elitegroup
Manuf No:
A780GM-A
A780GMA
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
A780GMA, A780GM-A

The A780GM-A is ECS Black Series platform based on the best combination of the new AMD 780G and SB700 chipset plus support for the latest Phenom quad core processors up to HT 5200 MT/s with Hyper Transport 3.0 technology links and integrated DDR2 1066* memory controller on the latest AM2+ platform. The A780GM-A provides the AMD latest technology Hybrid Graphics and also features support for UVD 2.0, DirectX 10, PCI Express2.0 and HDMI/HDCP for the extreme graphic performance computing. The ECS A780GM-A is the best reliable choice for AMD AM2+ platform.
*(Whether 1066 MHz memory speed is supported depends on the CPU being used.)


AMD Phenom
Being inherited from the excellent architecture of multitasking, AMD Phenom processors lead to a new milestone in the computing performance with its powerful multi-core as well as the support for HT 3.0 technology.
Certified For Windows Vista
The latest generation Microsoft O.S., delivers better personal productivity and digital entertainment on your PC through its improved reliability, security, and performance.
ATI Hybrid Graphics Technology
To provide better gaming performance than a single graphics card, the innovative design of ATI Hybrid Graphics Technology is capable to bring additional performance increase up to 1.75X by enabling the power of both integrated graphics core and the add-on graphics card simultaneously.
DDR2 1066
Expands memory bandwidth up to 8.5GB/s.
Dual core
Outperforms single-core processors on most multithreaded applications while running at lower clock speeds and consuming less power.
8 Channel High Definition Audio
Integrated 8-channel HD Audio CODEC delivering advanced multi-channel audio and bringing you the experience of home theater-quality sound.
PCI EXPRESS 2.0
The exceptionally increased interconnect bit rate from 2.5GT/s up to 5.0GT/s would effectively eliminates the bottle neck of the system performance and brings the most terrific computing experience from the present to the future.
HT3.0
The highly scalable Hyper Transport 3.0 is capable to provide incredible bandwidth of the system bus up to 20.8GB/s which would dramatically elevate the efficiency of computing performance.
HDMI
The interface supports existing high-definition video formats(720p, 1080i, and even 1080p), plus multi-channel digital audio on a single cable. Combination with HDCP, provides a secure audio/video interface that meets the security requirements of content providers and systems operators.
HDCP
A specification developed by Intel Corporation to protect digital entertainment content across the DVI/HDMI interface. HDCP encrypts transmission of digital content between HDCP-compliant devices that it allows users to enjoy HD content through HDCP-compliant playback software.
Over-Clocking
Maximizes your system performance by selecting overclocking options.


AMD Phenom
Being inherited from the excellent architecture of multitasking, AMD Phenom processors lead to a new milestone in the computing performance with its powerful multi-core as well as the support for HT 3.0 technology.
Certified For Windows Vista
The latest generation Microsoft O.S., delivers better personal productivity and digital entertainment on your PC through its improved reliability, security, and performance.
ATI Hybrid Graphics Technology
To provide better gaming performance than a single graphics card, the innovative design of ATI Hybrid Graphics Technology is capable to bring additional performance increase up to 1.75X by enabling the power of both integrated graphics core and the add-on graphics card simultaneously.
DDR2 1066
Expands memory bandwidth up to 8.5GB/s.
Dual core
Outperforms single-core processors on most multithreaded applications while running at lower clock speeds and consuming less power.
8 Channel High Definition Audio
Integrated 8-channel HD Audio CODEC delivering advanced multi-channel audio and bringing you the experience of home theater-quality sound.
PCI EXPRESS 2.0
The exceptionally increased interconnect bit rate from 2.5GT/s up to 5.0GT/s would effectively eliminates the bottle neck of the system performance and brings the most terrific computing experience from the present to the future.
HT3.0
The highly scalable Hyper Transport 3.0 is capable to provide incredible bandwidth of the system bus up to 20.8GB/s which would dramatically elevate the efficiency of computing performance.
HDMI
The interface supports existing high-definition video formats(720p, 1080i, and even 1080p), plus multi-channel digital audio on a single cable. Combination with HDCP, provides a secure audio/video interface that meets the security requirements of content providers and systems operators.
HDCP
A specification developed by Intel Corporation to protect digital entertainment content across the DVI/HDMI interface. HDCP encrypts transmission of digital content between HDCP-compliant devices that it allows users to enjoy HD content through HDCP-compliant playback software.
Over-Clocking
Maximizes your system performance by selecting overclocking options.

  CPU
AMD Phenom processor (Socket AM2+)
AMD Athlon 64 X2 Dual Core/ Athlon 64 / Sempron processor
High-performance HyperTransport 3.0 CPU Interface
Support transfer rate up to 5200 mega-transfers per second
Note: This board supports CPU up to 95W TDP only; you can refer to AMD website to check your CPU.

  CHIPSET
AMD  780G & AMD  SB700
North Bridge: AMD  780G
South Bridge: AMD  SB700

  GRAPHICS
On Chip (AMD 780G-based with ATI Radeon HD3200 graphics)
Integrated DirectX10 graphics processor
Max Dynamic Hyper Memory: 1920MB

  MEMORY
Dual-channel DDR2 800 memory architecture
4 x 240-pin DDR2 DIMM socket support up to 32GB*
Support DDR2 1066/800/667/533/400 DDR2 SDRAM
* (Due to the DRAM maximum size is 2GB at present, the memory maximum size we have tested is 8GB)

  EXPANSION SLOT
1 x PCI Express x16 slot
2 x PCI Express x1 slots
3 x PCI slots

  STORAGE
Support by AMD SB700
2 x Ultra DMA133/100/66 devices
5 x Serial ATA 3.0Gb/s devices
RAID0, RAID1, RAID10 configuration

  AUDIO
Compliant with HD audio specification
IDT 92HD206 8-channel audio CODEC

  LAN
ATHEROS L1 Gigabit Fast Ethernet NIC

  REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
1 x External SATA port
6 x USB ports
1 x Gigabit Ethernet Port
1 x Audio port (Line-in, Line-out, Mic-in)
1 x VGA port
1 x HDMI Port

  INTERNAL I/O CONNECTORS & HEADERS
1 x FDD connector
5 x Serial ATA connectors
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
CPUFAN/PWRFAN/SYSFAN connectors
1 x IDE connector
1 x Speaker header
1 x Front panel switch/LED header
1 x Front panel audio header
1 x SPDIF out header
1 x CD in header
3 x USB 2.0 headers support additional 6 USB ports
1 x COM1 header

  SYSTEM BIOS
AMI BIOS with 8Mb SPI ROM
Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI,HDCP
Supports ACPI revision 3.0 specification

  FORM FACTOR
ATX Size, 305mm*220mm
