HOME / Back -> Power Protection/UPS -> Stand Alone -> Repotec

Repotec RPT-603AU Standalone UPS - 600VA/360W UPS, Line Interactive, USB Port

IMG 1 of 1
No Longer Available
Part Number:
94938
(?) Brand:
Repotec
Manuf No:
RPT-603AU
RPT603AU
Shipping Weight:
12 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
RPT603AU, RPT-603AU

UPS 600VA with USB port
Front Panel:

1. Master Power Switch: On/Off Button.
2. On-line LED: AC normal.
3. Back-up LED: Battery in Back-up.
4. Cut off LED: UPS off.

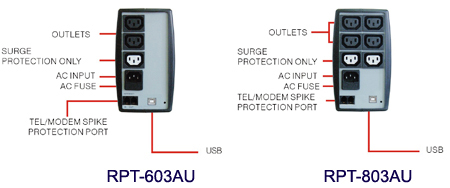

Rear Panel:

FEATURES

 Line interactive design.

 Easy replaceable Battery Design.

 Easy LED Display.

 Equipped with Boost and Buck AVR to stabilize input Voltage.

 Provide lightning, surge, overload, and short-circuit protection.

 Built-in CCCV battery charger and battery over drain protection.

 Auto restart when AC recovery.

 Cold start function (DC power on).

 Tel / Modem / Fax / internet surge suppression.

 Optional Bundle software: Automatically save your valuable files
before auto shutdown.



SPECIFICATIONS

Model:
RPT-603AU

TOPOLOGY
Line-interactive
CAPACITY VA / Watts
600VA / 360W


INPUT Voltage
115VAC / 230VAC
Voltage range
86Vac~144Vac /172Vac~288Vac
Frequency
47Hz~53Hz / 57Hz~ 63Hz
OUTPUT Voltage
115VAC / 230VAC A10%
Frequency
50Hz / 60Hz A1Hz
Waveform

Simulated Sine-Wave
Transfer Time
<6ms (typical)
Outlets: IEC-320 / NEMA 5-15R

2UPS+ 1Surge / 2

BATTERY Battery Type
12V / 7AH*1Pcs

Recharge Time
5 hours to 90% after complete discharge
User's Replacement
Yes
Battery Protection
Over discharger protection,short circuit protection by fuse
Advance Battery Management
Yes
Battery Back-up Time
20mins (Load with 1PC)


FUNCTION Display
LED status indicator for line-on(Green), back-up(Yellow),
UPS cut-off (Red)
Alarm
Buzzer on for back-up mode, Battery low
Output Short Protection
AC fuse and electronic circuit (Line mode); electronic circuit (back-up mode)
Communication Port(USB) Imate software for windows 95/98/NT/2000/ME/XP
Modem / Phone Prnotectio
RJ-11
Lightning / Surge Protection
320 Joules
AVR (Auto. Voltage Regulation)
Boost / Buck
DC-start Function
Yes
Auto. Restart UPS
Yes
Over / Under Voltage Protection
Yes
ENVIRONMENT Safety Standard CE (EN50091-1,EN62040-1-1)
EMC Standard FCC Part 15 Class B, CE (EN50091-2,EN55011,
EN61000-3-2,EN61000-3-3)
Operating Temperature
0 ~ 40BC
Relative Humidity
0-95%, non-condensing
Audible noise
<40 dBA at 1 meter
PHYSICAL Dimension, D*W*H
290*95*170 mm
Net Weight
6.5kgs


Specifications subject to change without notice.
