UPS With USB Port
|
Front Panel
|
|
|
| |
|
| 1. |
Master Power Switch: Turn on/off the UPS. |
| 2. |
Green LED: AC Normal . |
| 3. |
Yellow LED: Battery in back-up |
| 4. |
Red LED: UPS Cut-off |
| |
|
|
| |
 |

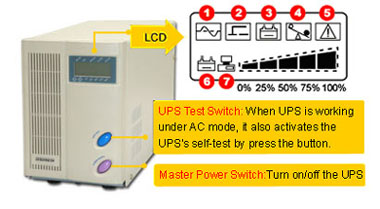

| 1. |
On-line: AC Normal |
| 2. |
AVR Protection LCD: When AVR is working under protection mode, the light will turn on |
| 3. |
Back-up: Battery in back-up |
| 4. |
Overload: If the UPS is overloaded,the light will turn on and the alarm will sound continuously |
| 5. |
UPS Cut off: Overload or Cut off |
| 6. |
Battery Level: A bar graph showing how much of the UPS battery is being used |
| 7. |
Load Level: A bar graph showing how much of the UPS power is being used |
| 8. |
UPS Test Switch:When UPS is working under AC mode, it also activates the UPS's self-test by press the bottom |
| 9. |
Master Power Switch: Turn on/off the UPS |
|
|
Rear Panel
|
|
|
| |
|
| 1. |
Input: IEC type connector to connect the power cable. |
| 2. |
AC Fuse: Protection against short-circuits electronic fuse. |
| 3. |
Data line protection:Filtering of electrical noise on data transmission lines. |
| 4. |
Communication port: Basic communications. |
| 5. |
AC/Battery outputs:Output protected for critical loads that require additional electrical power 6. |
| 6. |
UPS function setup: No load auto-shut down, Dc-start On and Buzzer Alarm auto-reset. |
| 7. |
USB PORT (OPTION) |
| |
|
|
| |
|
|
| 1. |
AC line input socket: Connect power cable from the UPS to AC utility. |
| 2. |
AC input fuse:Contain the fuse to protect the UPS from over current from incoming AC utility. |
| 3. |
Output receptacles:Connect power cables of computer equipment to this sockets. |
| 4. |
Computer interface:This socket combines relay contact signals DB9 connector. |
| 5. |
Phone/Fax/Modem jack:Telecom transfer ports provide users to extend the applications. |
| 6. |
USB port: Communication port. |
| 7. |
UPS setup switch: |
| |
Dip1. |
Low load(below 50w) auto-shut OFF. |
| |
|
Low load auto-shut ON. |
| |
Dip2. |
DC-start ON. |
| |
|
DC-start OFF. |
| |
Dip3. |
Buzzer auto-reset . |
| |
|
Buzzer auto-reset . |
| |
|
|
|
FEATURES
|
| |
Line interactive design. |
| |
Easy replaceable Battery Design. |
| |
Easy LED Display. |
| |
Equipped with Boost and Buck AVR to stabilize input Voltage. |
| |
Provide lightning, surge, overload, and short-circuit protection. |
| |
Built-in CCCV battery charger and battery over drain protection. |
| |
Auto restart when AC recovery. |
| |
Cold start function (DC power on). |
| |
Tel / Modem / Fax / internet surge suppression. |
| |
Optional Bundle software: Automatically save your valuable files
before auto shutdown. |
|
|
SPECIFICATIONS
|
| Model: |
|
RPT-2003AU
|
| TOPOLOGY |
|
Line-interactive
|
| CAPACITY |
VA / Watts |
|
2000VA/1100W
|
| INPUT |
Voltage |
115VAC / 230VAC
|
| Voltage range |
86Vac~144Vac /172Vac~288Vac
|
| Frequency |
47Hz~53Hz / 57Hz~ 63Hz
|
| OUTPUT |
Voltage |
115VAC / 230VAC 10%
|
|
Frequency
|
50Hz / 60Hz 1Hz
|
| Waveform |
Simulated Sine-Wave
|
| Transfer Time |
<6ms (typical)
|
| BATTERY |
Battery Type |
|
12V / 9AH*2Pcs
|
| Recharge Time |
5 hours to 90% after complete discharge
|
| User's Replacement |
No
|
| Battery Protection |
Over discharger protection,short circuit protection by fuse
|
| Advance Battery Management |
Yes
|
| Battery Back-up Time |
|
50mins (Load with 1PC)
|
| FUNCTION |
Display(LED) |
LED status indicator for line-on, back-up, UPS cut-off
|
| Display(LCD) |
LCD indicator for line-on,battery back-up,AVR protection,load and battery level, overload and UPS ctp-off
|
| Alarm |
Buzzer on for back-up mode, Battery low, Over load
|
| Output Short Protection |
AC fuse and electronic circuit (Line mode); electronic circuit (back-up mode)
|
| Communication Port |
IMate software for windows 95/98/NT/2000/ME/XP |
| Modem / Phone Protection |
RJ-11/RJ-45
|
| Lightning / Surge Protection |
320 Joules
|
| AVR (Auto. Voltage Regulation) |
Boost / Buck
|
| DC-start Function |
Yes
|
| Auto. Restart UPS |
Yes
|
| Over / Under Voltage Protection |
Yes
|
| ENVIRONMENT |
Safety Standard |
CE (EN50091-1,EN62040-1-1)
|
| EMC Standard |
FCC Part 15 Class B, CE (EN50091-2,EN55011,EN61000-3-2,EN61000-3-3)
|
| Operating Temperature |
0 ~ 40BC
|
| Relative Humidity |
0-95%, non-condensing
|
| Audible noise |
<40 dBA at 1 meter
|
| PHYSICAL |
Dimension, D*W*H |
|
408*143*205mm
|
| Net Weight |
|
18kgs
|
Specifications subject to change without notice.
|
|
|
|
|
