Repotec RPT-3003AU Standalone UPS - 3000VA/1800W UPS, Line Interactive, USB Port

IMG 1 of 1
No Longer Available
Part Number:
94957
(?) Brand:
Repotec
Manuf No:
RPT-3003AU
RPT3003AU
Shipping Weight:
25 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
RPT3003AU, RPT-3003AU

UPS With USB Port

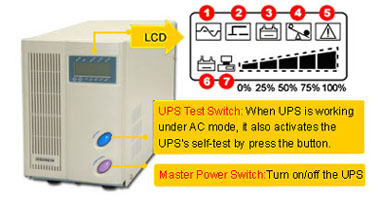

Front Panel

1. On-line: AC Normal
2. AVR Protection LCD: When AVR is working under protection mode, the light will turn on
3. Back-up: Battery in back-up
4. Overload: If the UPS is overloaded,the light will turn on and the alarm will sound continuously
5. UPS Cut off: Overload or Cut off
6. Battery Level: A bar graph showing how much of the UPS battery is being used
7. Load Level: A bar graph showing how much of the UPS power is being used
8. UPS Test Switch:When UPS is working under AC mode, it also activates the UPS's self-test by press the bottom
9. Master Power Switch: Turn on/off the UPS

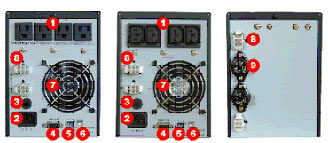

REAR PANEL
1. Outlets
2. AC Input
3. AC Fuse
4. Communication Interface Port
5. UPS Function Set up
a. No Load Auto Shutdown
b. DC Start
C. Buzzer Alarm Auto Reset
6. USB Port
7. Cooling Fan
8. External Battery Connector
9. DC Fuse
Main UPS
Battery Bank

FEATURES


 Line Interactive Design

 User-friendly LCD Display

 Provide Boost and Buck AVR to stabilize Input Voltage

 Provide Lightning,Surge,Overload and Short Circuit Protection

 Built-in CCCV Battery Charger and Battery Over Drain Protection

 No Load Auto Shutdown (Dip Switch Set up)

 Auto Restart when AC Recovery

 Buzzer Alarm Auto Reset (Dip Switch Set up)

 Cold Start Function (DC Power On)

 Tel/Modem/Fax/Internet Surge Suppression

 Optional Bundles Software:Automatically save Your Valuable

 Files before Auto Shutdown

 Microprocessor Design for True RS-232 (Optional)

 Available to extend Back-up Time (To add Extra External Battery Bank)



SPECIFICATIONS
Model

RPT-3003AU
TOPOLOGY

USB
CAPACITY VA / Watts
3000VA/1800W
INPUT Voltage
110/115/120VAC or 220/230/240VAC
Voltage range
86VAC~144VAC or 172VAC ~288VAC (+/-25%)
Frequency
47Hz~53Hz or 57Hz ~63Hz
OUTPUT Voltage Regulation (Batt. Mode)
110/115/120VAC or 220/230/240VAC +/-10%
Frequency
50Hz / 60Hz 1Hz
Waveform
Simulated Sine-Wave
Transfer Time
<6ms (typical)
Outlets: IEC-320/ NEMA 5-15R
4/4
BATTERY Battery Type
12V/12AH*4pcs
Recharge Time
5Hrs to 90% after complete discharge
User's Replacement
Yes
Battery Protection
Over discharge protection & Short circuit protection by fuse
Advance Battery Management
Yes
Battery Back-up Time
It depends on connecting loads
FUNCTION Display(LCD)
LCD indicator for line-on,battery back-up,AVR protection,load and battery level, overload and UPS ctp-off
Alarm
Buzzer on for Back-up mode,Battery low,Overload
Output Short Protection
AC fuse and electronic circuit (Line mode); electronic circuit (back-up mode)
Communication Port(RS-232) Shutdown software for Windows 95/98/NT/2000/ME/XP/Vista
Modem / Phone Protection
RJ-11/RJ-45
Lightning / Surge Protection
320 Joules
AVR (Auto. Voltage Regulation)
Boost / Buck
DC-start Function
Yes
Auto. Restart UPS
Yes
Over / Under Voltage Protection
Yes
ENVIRONMENT Safety Standard
CE (EN50091-1,EN62040-1-1)
EMC Standard
FCC Part 15 Class B, CE (EN50091-2,EN55011,
EN61000-3-2,EN61000-3-3)
Operating Temperature
0 C ~ 40 C
Relative Humidity
0%-95%, Non-Condensing
Audible noise
<40 dBA at 1 meter
PHYSICAL Dimension, D*W*H

408*143*197mm
Net Weight

20Kgs

Specifications subject to change without notice.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2-year RTB

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
