HOME / Back -> Power Supplies -> 600W - 699W -> ASUS

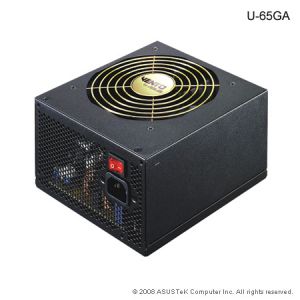

ASUS 650W U-65GA - ATX 12V v2.3, 120mm Fan, 80 PLUS Certified
  • 6x SATA, 2x PCI-E 6+2-Pin

IMG 1 of 1
No Longer Available
Part Number:
95303
(?) Brand:
ASUS Web Site
Manuf No:
U-65GA
U65GA
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
U65GA, U-65GA
  Advanced Thermal and Acoustics Technologies for
  Reliable Computing

Energy-efficient
Certified with 80 PLUS specification (up to 86% efficiency)
Active PFC delivers environmentally friendly power with a high power factor (PF) of up to 99%

Stability
Accurate power rating delivers its full rated power
ATX12V Ver. 2.3 compliant-real triple 12V rails provide stable support for high-end graphic cards
Dedicated power circuitry: delivers reliable output to delicate components

Ventilation
12 cm ball-bearing fan with auto thermal acoustics noise control
 Cable sleeve improves internal airflow within the system.
Hexagon venting holes for efficient heat dissipation

Expandability
Provides both 6-pin and 8-pin PCI-Express connectors for future upgrade to graphic cards
Rich expandability with 6 SATA, 6 peripherals, 2 FDD, 2 PCI-E and 1 EPS connectors
EPS connector provided for dual CPU usage

Safety
Certified with CUS, Nemko, CE, BSMI, TUV, FCC, C-TICK
Protection: OVP, SCP, OCP, NLO, OTP, UVP, OPP



Input/Output Performance

Model No.

Input Range

Output Voltage

Total Output

Input Voltage Range

Input Frequency Range



+3.3V

+5V

+12V1

+12V2

+12V3

-12V

+5VSB

U-65GA

100~240Vac

47~63Hz

Max. Load

25A

25A

16A

16A

16A

0.5A

2.5A

650W

Max. Output

160W

540W

6W

12.5W

631.5W


Specifications

Power 650W
Dimensions 155 (L) x 150 (W) x 86 (H) mm
Output Connectors
1 x 24 pins main connector
6 x Peripheral
2 x Floppy Drive
6 x Serial ATA
1 x +12V Power
2 x PCI Express
1 x EPS
PFC Active
Fan 12 cm x 1
Input Voltage 100 ~240 Vac
Safety Agency BSMI CE C-TICK CUS FCC NEMKO TUV
Protections NLO OCP OPP OTP OVP SCP UVP

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.
