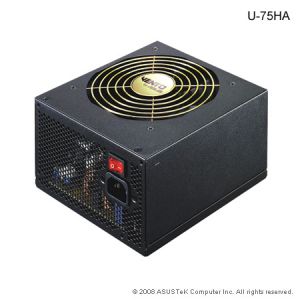

ASUS 750W U-75HA Power Supply - ATX 12V v2.3, EPS
  • 6x SATA, 4x PCI-E

IMG 1 of 1
No Longer Available
Part Number:
95306
(?) Brand:
ASUS Web Site
Manuf No:
U-75HA
U75HA
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
U75HA, U-75HA
Advanced Thermal and Acoustics Technologies for
  Reliable Computing

Energy-efficient
Certified with 80 PLUS specification (up to 86% efficiency)
Active PFC delivers environmentally friendly power with a high power factor (PF) of up to 99%

Stability
Accurate power rating delivers its full rated power
ATX12V Ver. 2.3 compliant-real four 12V rails provide stable support for high-end graphic cards
Dedicated power circuitry: delivers reliable output to delicate components

Ventilation
13.5 cm ball-bearing fan with auto thermal acoustics noise control
 Cable sleeve improves internal airflow within the system.
Hexagon venting holes for efficient heat dissipation

Expandability
Provides both 6-pin and 8-pin PCI-Express connectors for future upgrade to graphic cards
Rich expandability with 6 SATA, 6 peripherals, 2 FDD, 4 PCI-E and 1 EPS connectors
EPS connector provided for dual CPU usage

Safety
Certified with CUS, Nemko, CE, BSMI, TUV, FCC, C-TICK
Protection: OVP, SCP, OCP, NLO, OTP, UVP, OPP



Input/Output Performance

Model No.

Input Range

Output Voltage

Total Output

Input Voltage Range

Input Frequency Range



+3.3V

+5V

+12V1

+12V2

+12V3

+12V4

-12V

+5VSB

U-75HA

100~240Vac

47~63Hz

Max. Load

30A

30A

18A

18A

18A

18A

0.6A

3.5A

750W

Max. Output

160W

648W

7.2W

17.5W

727.8W




  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.




Specifications
Power
750W
Dimensions
180 (L) x 150 (W) x 86 (H) mm
Output Connectors
1 x 20+4 pins main connector
6 x Peripheral
2 x Floppy Drive
6 x Serial ATA
1 x +12V Power
4 x PCI Express
1 x EPS
PFC
Active
Fan
13.5 cm x 1
Input Voltage
100 ~240 Vac
Safety Agency
BSMI CE C-TICK CUS FCC NEMKO TUV
Protections
NLO OCP OPP OTP OVP SCP UVP

  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
