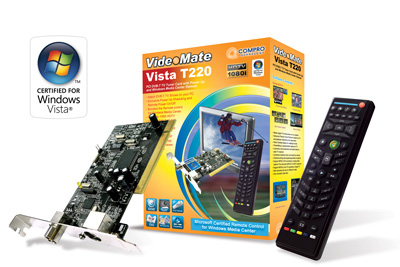

VideoMate Vista T220

PCI DVB-T TV Tuner & Capture Card with
Windows Media Center Remote and Power Up

Compro VideoMate Vista T220, an advanced silicon digital TV tuner card, provides the reception of free-to-air digital terrestrial TV viewing and personal digital video recording capabilities on your PC. It also offers S5(shutdown)/ S4(hibernation)/S3(standby) mode power up schedule recording and remote controlled power on/off. VideoMate Vista T220 also comes with the Microsoft certified Windows Media Center remote that gives users the control of Windows Media Center and ComproDTV 4.

The included ComproDTV 4 software features digital TV watching/recording, channel surfing, timeshifting, single/multiple still frames capture, customize color settings of brightness/saturation/contrast/hue/sharpness in each TV channel. It also provides the advanced Picture In/Out Picture functions which allows users to watch live TV and playback video files at the same time. The Video Desktop function lets users to stream live TV shows as wallpaper and use other applications simultaneously. ComproDTV 4 can simultaneously operate, viewing or recording, multiple Compro TV devices on the same machine, internal and external.

To enhance the usability of Windows Vista and Windows Media Center, VideoMate Vista T220 also offers an array of useful functions. ComproDTV Vista Gadget provides live TV view and playback list with click of a button on the Windows SideBar. The DTV Add-In function makes the Media Centre more powerful by integrating it with DTV 4.The schedule recording list from Windows Media Center can be integrated to ComproDTV 4 for more an easier schedule recording control. With the bundled Windows Media Center remote and powerful features, VideoMate Vista T220 PCI TV card is undoubtedly your best TV card choice.


Key Features

  • High-quality silicon digital TV tuner card with Philips 9-bit ADC chip and low-profile card design
  • Watch free-to-air digital terrestrial TV shows on your PC
  • Bundle with Windows Media Center remote to control Windows Media Center and ComproDTV 4
  • All-new ComproDTV 4 software with Vista Gadget, DTV Add-In, and Windows Media Center schedule recording list integration (Vista Gadget & Compro DTV Add-In are meant for Vista 32 bit operation system only)
  • ComproDTV 4 can simultaneously operate, viewing or recording, multiple Compro TV devices on the same machine, internal and external
  • Compro exclusive Power Up Scheduled Recording
  • Convenient Remote Controlled Power On/Off
  • Autoscan in UHF/VHF band (6,7,8 MHz channels)
  • Advanced PIP/POP feature offers users watch up to 4 TV channels and one playback recorded video file at the same time
  • Video Desktop can stream live TV shows as wallpaper Customize Brightness, Hue, Saturation, Contrast, Sharpness, and audio selection in each TV channel
  • High-quality MPEG-2 formats digital TV recording
  • Support Transport Stream record and playback
  • Support digital FM radio reception (not DAB type)
  • Support SDTV and 1080i HDTV (where available)
  • Support all digital TV audio/language selection
  • Supports EPG, subtitle, & Teletext
    (where available, does not support MHEG-5 in UK)
  • Flexible scheduled recording
  • Capture analog video from S-Video input in MPEG-1/2/4
  • Certified for Microsoft Windows Vista 32/64bit

Hardware Equipment

Hardware

  • Philips 9-bit ADC, silicon DVB-T tuner, & SMD capacitors
  • Shielding cover for better EMI resistance
  • Microsoft certified remote control for Windows Media Center
  • Card dimensions: 120 x 65 mm

Connectors

  • DVB-T digital TV signal input (I-type)
  • 9-pin connector (S-Video/Composite/Audio-OUT/Line-IN)
  • IR receiver connector
  • Power switch connector (2-pin x 2)

Product Requirements

  • CPU
    -1.7 GHz for TV viewing, DVD-quality recording
    -2.6 GHz with SSE 2 support for HDTV
    -3.0 GHz with SSE 2 for multiple PIP/POP TV watching
  • Memory: 512 MB ( 1GB recommended)
  • Open PCI 2.2 slot
  • CD drive for software installation
  • Sound card or on-board sound chip
  • Graphics Card or on-board graphics chip supports
  • ATX power
  • 2-pin power switch connector from system case
  • OS: Windows XP SP2 / Vista x86/x64
  • Digital Terrestrial TV Antenna

Specifications

LAYOUT

Dimension

120 x 65 mm

PCB Color

Black

Card Design

multiple voltage regulators, hardware power up circuit design

Video System (Analog Capture)

Capture Format

NTSC/PAL

Video ADCs

9-bit Video CMOS Analog-to-Digital Converters (ADCs)

Resolution (Screen size)

PAL 720*576 max
NTSC 720*480 max

Video bit-rate

0.2M ~10M bit / second

Video Compression

ISO / IEC 13818-2 (MPEG-2)
ISO / IEC 11172-2 (MPEG-1)

Audio System ( Analog Capture)

Stereo Format

Stereo (through sound card)

Audio ADCs

16-bit audio ADCs support capture of audio signals

Audio Sample Rate

44.1KHz / 48KHz (depending on sound card)

Audio bit-rate

128k~384k bit/second

Audio Compression

ISO/IEC 11172-3 Layer 2 (The real time software compression)

Video/Audio System ( Digital TV )

DVB Standard

DVB-T

Video/Audio Formats

Video : MPEG-2 Main Profile & Main Level
Audio : MPEG-2 Audio Level I & II

Tuner (Digital TV)

Impedance

75 Ohm

Frequency Range

48.25 - 863.25 MHz

I/O Connector

External

  • DVB-T digital TV signal input (I-type connector)
  • S-Video connector
  • IR receiver connector
