All-in-one Solution for Digital Office |
|
| CPU, Chipset and Graphics features |
|
   LGA775 Intel Core2 Processor Ready
This motherboard supports the latest Intel Core2 processors in LGA775 package. It also can support Intel next generation 45nm Multi-Core CPU. With new Intel Core microarchitecture technology and 1333 / 1066 / 800 MHz FSB, Intel Core2 processor is one of the most powerful and energy efficient CPU in the world.
|
  Intel Q35 Chipset
* Better cost management and safer computing encironment
The Intel Q35 Express Chipset is the latest chipset designed to support the next generation 45nm CPU; and up to 8GB of dual-channel DDR2 800/667 MHz memory architecture. It also supports 1333/1066/800 FSB (Front Side Bus), PCI Express x16 graphics and multi-core CPUs.
|
 Intel vPro Technology
The Intel vPro Technology allows IT organizations to remotely manage corporate PCs, even when they are powered off or with non-functional operating systems. It features the Intel Active Management Technology and offers IT organizations a lighter weight form of virtualization to audit all Intel AMT-based platforms in a network environment. PCs with Intel vPro Technology allow IT departments to remotely retrieve assets and hardware/software inventories, contain security threats, resolve system problems, and increase the uptime of desktops with lower maintenance costs.
|
|
|
|
  Q-Connector
Make connection quick and accurate!
The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate.
|
 CrashFree BIOS 3
Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
|
 EZ Flash 2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
|
| ASUS Overclocking Tools |
 O.C. Profile
Conveniently store or load multiple BIOS settings
Freely share and distribute favorite overclocking settings
The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.
|
 C.P.R. (CPU Parameter Recall)
Protect your BIOS data when overclocking.
When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.
|
| ASUS Crystal Sound |
 Noise Filter
Eliminate background noise while recording
This feature detects repetitive and stationary noises like computer fans, air conditioners, and other background noises then eliminates it in the incoming audio stream while recording.
|
| ASUS Unique Features |
 ASUS Advanced Q-Fan
Smoother and quieter fan control
Stabilize system temperature with advanced quiet fan control
The ASUS Advanced Q-Fan technology is powered by Intel Quiet System Technology. It makes the change of fan speed more smoothly. Its better in fan use, and efficiently reduces the noise caused by fans abruptly speeding up. Moreover, Advanced Q-Fan has a better control over a constant temperature system environment.
|
 Save CPU Power- AI Gear 2
Power Savings for Environment-Friendly Computing
AI Gear 2 allows users to choose profiles to adjust CPU frequency and vCore voltage to minimize system noise and power consumption. For example, users can change the mode in real-time in the operating system to max power saving mode and can save CPU power when using word processing applications.
|
 AI Nap
Minimize noise and power consumption when temporarily away
With AI Nap, users can instantly snooze your PC without terminating the tasks. System will continue operating at minimum power and noise when user is temporarily away. It keeps downloading files or running applications in quietest state while youre sleeping. Simply click keyboard or mouse, you can swiftly wake up the system in few seconds.
|
 MyLogo 2
Personalize your system with customizable boot logo
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen. |
|
|
 IEEE 1394a interface
IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.
|
TPM
Trusted Platform Module (TPM) system, which can securely store keys( for encryption/ decryption), digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.
|
| RoHS |
 GreenASUS
The motherboard and its packaging comply with the European Union's Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers' health while minimizing the impact on the environment.
|
|
|
|
CPU
|
LGA775 socket for Intel Core2 Quad / Core2 Extreme / Core2 Duo / Pentium Extreme / Pentium D / Pentium 4 Processors
Compatible with Intel 05B/05A/06 processors
Support Intel next generation 45nm Multi-Core CPU
|
|
Chipset
|
Intel Q35 / ICH9DO support Intel Active Management Technology
|
|
Front Side Bus
|
1333 / 1066 / 800 MHz
|
|
Memory
|
4 x DIMM, max. 8GB, DDR2 1066* / 800 / 667 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
* The Chipset offically supports 800 / 667 memory; for the 1066MHz memory support, please check the Memory QVL at www.asus.com
**When installing total memory of 4GB capacity or more, WindowsR 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
|
|
Expansion Slots
|
1 x PCIe x16
1 x PCIe x1
2 x PCI
|
|
VGA
|
Intel Graphics Media Accelerator 3100 (Intel GMA 3100) integrated
High Definition Video Processing with max. resolutions to 2048 x 1536 bpp(@ 75Hz)
Max. shared memory of 384MB*
*Only support when installed 1G memory
|
|
Storage
|
Southbridge
- 6 x SATA 3.0 Gb/s ports
- Support RAID 0, 1, 0+1, 5
JMicron JMB368 PATA controller
- 1 x UltraDMA 133/100/66 for up to 2 PATA devices
|
|
LAN
|
Intel 82566DM PCIe Gigabit LAN controller
|
|
Audio
|
Realtek ALC883, 8-channel High-Definition Audio CODEC
- Support Jack-detection, Enumeration, Multi-streaming
|
|
IEEE 1394
|
Agree 1394 controller supports 2 x IEEE 1394a ports
(one at midboard; one at back panel)
|
|
USB
|
12 x USB 2.0 ports (8 ports at mid-board, 4ports at back panel)
|
|
TPM
|
Infineon TPM chip 9635 TT 1.2 on board
|
|
Special Features
|
ASUS Quiet Thermal Solution:
- ASUS AI Gear 2
- ASUS AI Nap
- ASUS Advenced Q-Fan
ASUS Crystal Sound:
- ASUS Noise Filter
ASUS EZ DIY:
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
|
|
Other ASUS Special Features
|
ASUS MyLogo 2
|
|
Overclocking Features
|
Precision Tweaker:
- vCore: Adjustable CPU voltage at 0.0125V increment
- vDIMM: 4-step DRAM voltage control
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- Memory tunning from 667MHz up to 1066 MHz
- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
Overclocking Protection:
- ASUS C.P.R. (CPU Parameter Recall)
|
|

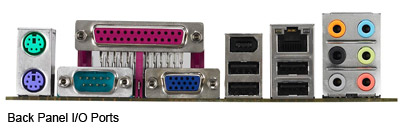

Back Panel I/O Ports
|
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x VGA port
1 x Parallel port
1 x COM Port
1 x IEEE1394a
1 x RJ45 port
4 x USB 2.0/1.1
8-channel Audio I/O
|
|
Internal I/O Connectors
|
4 x USB connectors support additional 8 USB ports
1 x Floppy disk drive connector
1 x IDE connector
6 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x IEEE1394a connector
Front panel audio connector
1 x S/PDIF Out Header
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
System Panel
|
|
BIOS
|
32 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a
Intel vPro technology support
|
|
Manageability
|
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
|
|
Accessories
|
UltraDMA 133/100/66 cable
FDD cable
Serial ATA signal cables
Serial ATA power cable
I/O Shield
User's manual
3 in 1 Q-connector
|
|
Support Disc
|
Drivers
ASUS PC Probe II
ASUS Update
Anti-virus software (OEM version)
|
|
Form Factor
|
uATX Form Factor, 9.6"x 9.6" (24.4cm x 24.4cm)
|
|
| The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products. |
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
