- Revolutionary design C.R.M.3 Cable Routing Management 3
- Innovative design A.T.C.3 Advance Thermal Chamber 3
- Fancool 8 Support up to 8 fans for greater thermal performance
- Easy install Advanced tool-free mechanism for 5.25, 3.5 and PCI devices
- HDD relocation 3.5 HDD cage swappable to 5.25 drive bay
- Hot swapping design for side 23cm fan
- Adjustable fan bar redirecting airflow to CPU or VGA for better thermal performance
- Removable & 90-degree rotated HDD cage for easier installation
- Bottom-placed PSU design for better and easier installation
|
|

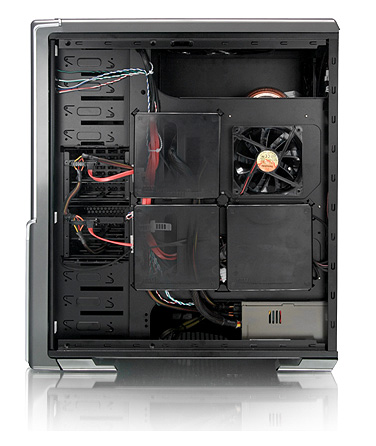

C.R.M.3 Cable Routing Management 3
Thermaltake has introduced excellent cable routing management feature into Spedo. The cables could be well positioned and arranged beneath the plastic covers. With such advanced feature, youll find the most clean and well- organized internal structure on SPEDO. Together with A.T.C.3, C.R.M.3 can further avoids cables from blocking the ventilation inside the case, thus enhancing the thermal performance of SPEDO.
|
 |

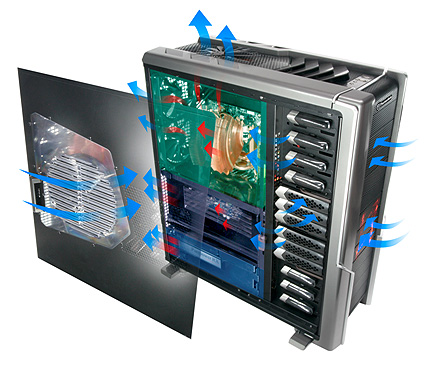

A.T.C.3 Advance Thermal Chamber 3
Following the design concept of the Automobile engine bay, the internal structure of SPEDO has been seperated into 3 chambers, isolating the CPU, GPU and PSU areas by specially made partitions. This ATC3 design gives SPEDO the flawless air circulation, and further maximizing the thermal performance with the Fancool 8 feature.
|
 |

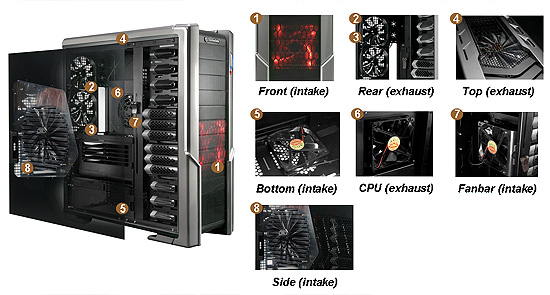

Front (intake) : 140 x 140 x 25 mm red LED fan, 1300rpm, 17dBA
Rear (exhaust) : Two 120 x 120 x 25 mm TurboFan, 1300rpm, 17dBA
Top (exhaust) : 230 x 230 x 20 mm fan, 800rpm, 15dBA
Bottom (intake) : 120 x 120 mm fan (optional)
CPU (exhaust) : 120 x 120 mm fan (optional)
Fanbar (intake) : 120 x 120 x 25mm TurboFan, 1300rpm, 17dBA
Side (intake) : 230 x 230 x 20 mm fan, 800rpm, 15dBA
|

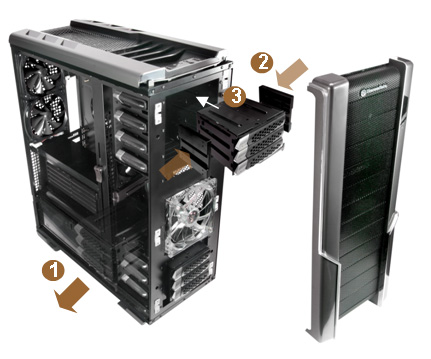

INNOVATION 3.5 HDD RELOCATION
 |
In order to further enhance system airflow, a smart 5.25 drive bay convertor has been included to enable the relocation of your 3.5 HDD cage on SPEDO.
|

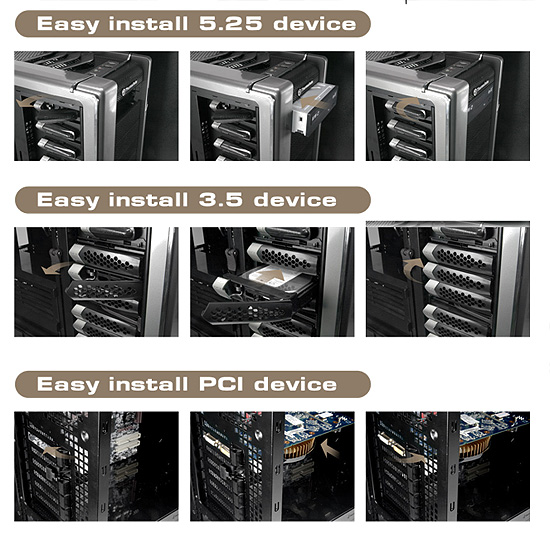

Advanced tool-free 5.25, 3.5 and PCI devices on SPEDO will not only be able to minimize the installation time, but it can further improve system airflow with the new enhanced mechanism.
|
 |
| |
| |
INNOVATION Plug & Play Fan
top
 |

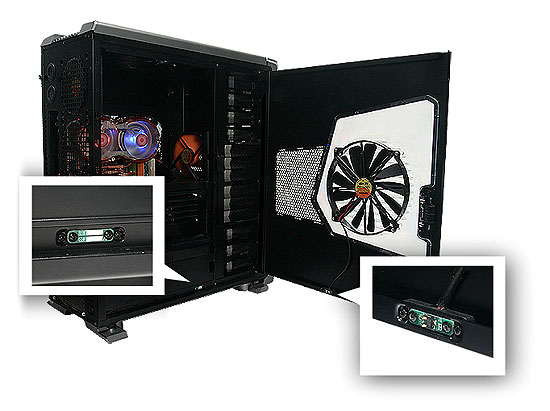

| SPEDO has build-in Plug & Play fan on its side panel. The 23cm fan automatically stops once the side panel is detached from chassis. With the feature enhanced, side panel can be removed more easily than ever. |

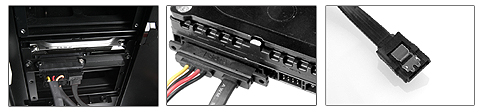

| Upgrade Kits of SPEDO including the exclusive PSU, cables and SATA connectors have been specially created to further extend the performance and to ensure the continuous pleasure offered by SPEDO. |
|
Toughpower XT 850W Spedo edition
|
|
|
P/N: W0315
Toughpower XT 850W Spedo edition 80 Plus & extra length cables for convenient cable routing (PCI-E & SATA cables 600mm / Main power, CPU power & peripheral cables 650mm). |
|
Cable Box
|
 |
P/N: AC0001
Extra length cables for cable routing management
24pin adaptor cable x 1
4pin - 4pin adaptor cable x 1
8pin - 8pin adaptor cable x 1
4pin peripheral adaptor cable x 1
S-ATA adaptor cable x 3
6pin - 6+8pin(PCI-E) adaptor cable x 2 |
|
Easy Swap Package
|
|
|
P/N: AC0002
For 3.5 SATA HDD device
For SPEDO series case only
|
 |
| |
Support Thermaltake Spedo Series Case |
|
Easy swap 3.5" SATA device |
|
Safety locking latch |
|
|
|
| Model |
VI90001W2Z |
| Case Type |
Full Tower |
| Dimension H x W x D |
536.0 x 232.0 x 610.0 mm
(21.1 x 9.1x 24.0 inch) |
| Net Weight |
13.0 kg / 28.7 lb |
| Side Panel |
Transparent window |
| Color |
Exterior & Interior : Black |
| Material |
Front bezel: Metal mesh
Chassis: SECC |
| Cooling System |
Front (intake) :
140 x 140 x 25 mm Red LED fan, 1000rpm,
16 dBA
Rear (exhaust) :
Two 120 x 120 x 25 mm TurboFan, 1300rpm, 17dBA
Top (exhaust) :
230 x 230 x 20 mm fan, 800rpm, 15dBA
Bottom (intake) : 120 x 120 mm fan (optional)
CPU (exhaust) : 120 x 120 mm fan (optional)
Fanbar (intake) :
120 x 120 x 25 mm TurboFan, 1300rpm, 17dBA
Side (intake) :
230 x 230 x 20 mm fan, 800rpm, 15dBA |
| Drive Bays |
5.25 drive bay : 7
3.5 drive bay : 1(Converted from one 5.25 drive bay)
3.5 drive bay (Hidden) : 6 |
| Expansion Slots |
8 |
| Motherboards |
Micro ATX , Standard ATX |
| I/O Ports |
USB 2.0 x 2, e-SATA connector x 1, HD Audio |
| Advanced Thermal Chamber |
Yes |
| Cable Management |
Yes |
|
