2SV120BND1 | Avocent SwitchView 100 2-Port USB KVM Switch w. Audio

Part shop - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

HOME / Back -> KVM/Switch Boxes -> CPU/KVM -> Avocent

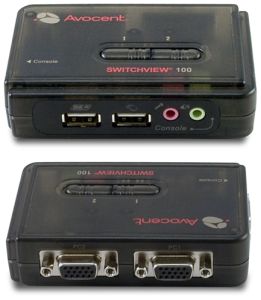

Avocent SwitchView 100 2-Port USB KVM Switch w. Audio
Inc. Cables

No Longer Available

Part Number:

98474

(?) Brand:

Avocent

Manuf No:

2SV120BND1

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Date Added:

11/12/2008

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

2SV120BND1, 636430045122

The SwitchView 100 2-port miniature KVM switch provides access and control two USB-enabled multimedia computers.

The SwitchView 100 2-port KVM switching solution is one of the industrys smallest and most versatile desktop KVM solutions. You can easily connect and control your small-office home-office (SOHO) desktop environment with this space-saving KVM switch. The SwitchView 100 2-port switch lets you access and control two USB-enabled multimedia computers using only one USB keyboard and mouse and VGA monitor. Plus, this solution supports 2048 x 1536 video resolution and provides audio and microphone support.

Single user, 2-port miniature switch does not compete for space on the desktop
Convenient USB connectivity
Supports 2048 x 1536 video resolution
Access multiple multimedia computers using a single keyboard, monitor, mouse, speaker set and microphone
Affordably priced for the small office/home office

Features and Benefits

Feature	Benefit
Slim design	Does not compete for space on the desktop
Audio and microphone switching	Monitor the audio/microphone input/output of each multimedia computer without moving the plugs from PC to PC. Allows for uninterrupted multimedia experience across multi-platforms.
Channel selection	Switch between channels using pushbuttons or hotkeys.
USB interface powered	No external power supply
Cables included	Save money

Specifications

PC Connections	2
Console Connections	1
Cables	2 x USB KVM combo cable 2 x Audio/Mic Cables (USB Mini B-3.5 mm jack)
PC Port Connectors	2 x HDB 15-pin male 2 x audio/mic connector (USB Mini B)
Console Port Connectors	2 x USB Type A (keyboard and mouse) 1 x HDB 15-pin female 1 x 3.5 mm audio jack 1 x 3.5 mm mic jack
PC Selection	Pushbuttons/Hotkeys
PC Port LEDs	2 Green
VGA Resolution	2048 x 1536
Power Type	USB interface power
Housing	Plastic
Dimensions (LxWxH)	96x61x24 mm
Certifications	FCC, CE, C-tick

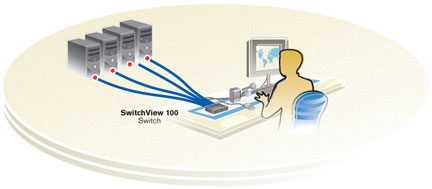

Diagram

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2 Years

Full manufacturers warranty details are available at the manufacturers web site.
