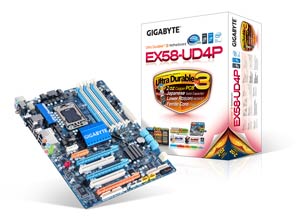

Gigabyte GA-EX58-UD4P Motherboard
LGA1366, X58, QPI 6.4GT/s, 6x DDR3-2000, 2x PCI-Ex16 v2.0, 1x PCI-Ex8 v2.0, 8x SATA-II, RAID, GigLAN, 8Chl, Firewire, ATX


Product May Vary From Image
[Large image available]

Our Price:Discontinued

Techbuy Part No:99018
Usually Ships: No Longer Available Details
Brand:Gigabyte Web Site
Manuf No:GA-EX58-UD4P
 GAEX58UD4P
Shipping Weight:3 KG How Much?
Date Added:22/12/2008
Rating: Not Rated
Currency:AUD Convert

Product Description

GA-EX58-UD4P (rev. 1.0)
Intel  X58 + ICH10R Chipset
  1. Ultra Durable 3 Technology with copper cooled quality for lower working temperature
  2. Supports the newest Intel  Core i7 processors in socket LGA1366 with QPI 6.4 GT/s
  3. Revolution energy saving design with DES Advanced featuring hardware based Dynamic 6-Gear switching
  4. Supports 3 channel DDR3 2100+ memory by 6 DIMMs
  5. Scalable ability to both 3 way CrossFireX and 3 way SLI support for ultimate graphics performance
  6. Advanced 12+2+2 power phase design with VRD 11.1 support
  7. Built-in TPM chip with 2048bits encryption to highest level digital data protection
  8. Unique hardware control IC to provide more precision voltage control
  9. 100% 50,000 hour lifespan Japanese solid capacitors design
  10. Professed onboard LED allow user to easily catch on PC status
  11. Patented DualBIOS with dual hardware BIOS protection
  12. Features high speed Gigabit Ethernet connection
  13. Supports Dolby Home Theater audio to create a stunning surround sound listening experience
  14. Power/reset/Clr CMOS onboard button for easily operation on the workbench
  15. Blu-ray playback outputs supported by high quality 106dB SNR ALC889A HD audio


Overview

    Introduction


The EX58-UD4P is the latest high performance X58 Series motherboards of GIGABYTE, designed from the ground up to unleash the awesome power of Intels new Core i7 processors. Equipped with a host of new features including the new QPI interface, 3 channel DDR3 support, 3 Way SLI and CrossFireX support, Ultra Durable 3 technology and the industrys most extensive range of overclocking features, the EX58-UD4P is bringing excitement back into the high performance motherboard industry.
    Intel  Core i7 Processor and X58 Chipset support


The EX58-UD4P was designed specifically to take advantage of the raw power of the next generation Intel  Core i7 processors and the Intel  X58 Express chipset, whose new evolution in computing architecture is able to deliver an amazing performance break through from past processor generations. Replacing the Front Side Bus is the new Quick Path Interconnect, or QPI, whose 25.6 GB/sec transfer rate (double the bandwidth of the 1600MHz FSB) eliminates the communication bottleneck between the processor and chipset.
The Intel  Core i7 processors also feature an integrated memory controller inside the processor die and support 192bit 3-channel DDR3 memory that delivers a 50% memory bandwidth enhancement and lower memory latency for incredibly fast memory access. Additionally, The EX58-UD4P features Intel  Turbo Boost Technology, which is able to power down idle processor cores and dynamically reroute the power to the active cores for significant performance boosts, and at the same time, maintain greater energy efficiency.
  Integrated Memory Controller
Intel  Core i7 Processors feature triple channel DDR3 support
Intel Core i7 processors feature the memory controller integrated directly into the processor die, rather than as part of the Northbridge as in previous generations, allowing for faster memory performance. Core i7 processors also provide additional memory support including.
  QPI , QuickPath Interconnect
Replacing the role of FSB
Intel uses the QPI to connect internal components of Core i7 processors , and to connect the CPU itself to the Northbridge and banks of memory.

QPI delivers:
Up to 25.6GB/sec of bandwidth between Core i7 processors and the rest of the system,providing exactly double the bandwidth of 1600 Hz FSB
  Intel Turbo Boost Technology
Dynamically reroutes power to improve performance For situations when all cores are not needed for a particular workload, Intel Turbo Boost Technology powers down the idle cores and dynamically reroutes the power to the active cores, boosting their performance without wasting power. This allows the active cores to achieve significant overclocks.


Ultra TPM - Industrys highest level of data Security via onboard TPM
  • Maximum level of data protection with 2048 bit encryption
  • Security, manageability and flexibility that surpasses software-based encryption
  • Portable User Key to protect data when away from your system
  • Additional backup of user key in BIOS in case of misplaced key

......TPM Configuration Procedure
  • After creating the password(s) and key(s) associated the TPM, be sure to store them in a secure location and back them up. Loss of the password(s) or the key(s) will render the files encrypted via the TPM unable to be cracked or read.
  • Though the TPM delivers the latest data security technology, it does not guarantee data integrity or give hardware protection. GIGABYTE is not liable for loss of encrypted data as a result of hardware damage.
(Note)If you want to uninstall the Ultra TPM utility, be sure to insert the USB flash drive containing the TPM key into your computer before the uninstallation.
  Multi-display support with 3 way CrossFireX and 3 way SLI
Flexible graphics capabilities - Up to 3 VGA cards are supported for either 3 way CrossFireX or 3 way SLI action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.


Ultra Durable 3


GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTEs Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking.
  Benefits of 2 oz Copper PCB
Cooler than traditional motherboards
Enhanced durability
Improved energy efficiency
Greater margins for overclocking

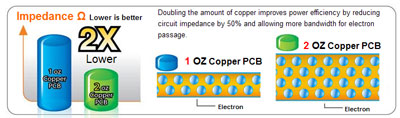

    2X Lower Impedance


In addition, doubling the amount of copper lowers the PCB impedance by 50%. Impedance is a measure of how much the circuit impedes the flow of current. The less the flow of current is impeded, the less amount of energy is wasted. For GIGABYTE Ultra Durable 3 motherboards, this means total PCB electrical waste is reduced by 50%, which also means less heat is generated. 2 ounces of copper also provides improved signal quality, providing better system stability and allowing for greater margins for overclocking.
  50,000 Hours Japanese Solid Capacitors
GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.


Dynamic Energy Saver Advanced
GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the worlds only motherboard energy saving technology with hardware-based Dynamic 6-Gear* Switching. With support for VRD 11.1, GIGABYTEs DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings.

GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
* The 6-Gear feature may vary by model. Gear 1 phase switching requires 45nm processors with PSI signal enabled.


DualBIOS - Patented Dual Hardware BIOS Protection
DualBIOS is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.


Hardware OverVoltage Control IC - Enabling Extreme Overclocking
GIGABYTE Hardware Overvoltage Control ICs featuring more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control, which means there is no delay compared to the GPIO controller in past implementations. In addition, GIGABYTEs Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance.
  OV-Alert LED
4 sets of OV-Alert LEDs indicate the overvoltage level of the CPU, Memory, North Bridge and South Bridge to prevent component damage.
  Visible Overclocking Reminder
OC-Alert LED indicates the level of CPU overclock from low to high.
  Visible Temperature Reminder
Two sets of Temperature Alert LEDs indicate the current temperature level of the CPU and North Bridge
    Onboard Quick Switches
Onboard Power, Clear CMOS and Reset buttons allow for quick and easy tweaking for power users working in an in chassis environment.
  EasyTune6
GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.
  Dolby Home Theater  - Enjoy a Rich Home Theater Surround Sound Experience
Dolby Home Theater places listeners in the middle of the action, giving their PCs a powerful set of tools to deliver a cinema-style experience in vivid surround sound.
  • Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones
  • Designed to automatically deliver the best possible listening experience

Specifications
CPU
  1. Support for an Intel  Core i7 series processor in the LGA 1366 package
    (Go to CPU Support List for the latest CPU support )
  2. L3 cache varies with CPU
QPI
  1. 4.8GT/s / 6.4GT/s
Chipset
  1. North Bridge: Intel  X58 Express Chipset
  2. South Bridge: Intel  ICH10R
Memory
  1. 6 x 1.5V DDR3 DIMM sockets supporting up to 24 GB of system memory (Note 1)
  2. Dual/3 channel memory architecture
  3. Support for DDR3 2100+/1333/1066/800 MHz memory modules
(Go to Memory Support List for the latest memory support list.)
Audio
  1. Realtek ALC889A codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for Dolby  Home Theater (Note 2)
  5. Support for S/PDIF In/Out
  6. Support for CD In
LAN
  1. 1 x Realtek 8111D chips (10/100/1000 Mbit)
Expansion Slots
  1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1/PCIEX16_2) (Note 3)
  2. 1 x PCI Express x8 slot, running at x8 (PCIEX8_1) (Note 4)
    (The PCIEX16_1, PCIE16_2 and PCIEX8_1 slots support 2-Way/3-Way NVIDIA SLI/ATI CrossFireX technology and conform to PCI Express 2.0 standard.)
  3. 1 x PCI Express x4 slot
  4. 1 x PCI Express x1 slot
  5. 2 x PCI slots
Storage Interface South Bridge:
  1. 6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
  2. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
GIGABYTE SATA2 chip:
  1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  2. 2x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices
  3. Support for SATA RAID 0, RAID 1 and JBOD
iTE IT8720 chip:
  1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
IEEE 1394
  1. T.I. TSB43AB23 chip
  2. Up to 3 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394a brackets connected to the internal IEEE 1394a headers)
USB
  1. Integrated in the South Bridge
  2. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x floppy disk drive connector
  4. 1 x IDE connector
  5. 8 x SATA 3Gb/s connectors
  6. 1 x CPU fan header
  7. 3 x system fan headers
  8. 1 x power fan header
  9. 1 x North Bridge fan header
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x CD In connector
  13. 1 x S/PDIF In header
  14. 1 x S/PDIF Out header
  15. 2 x USB 2.0/1.1 headers
  16. 2 x IEEE 1394a headers
  17. 1 x power LED header
  18. 1 x chassis intrusion header
  19. 1 x power switch
  20. 1 x reset switch
Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x coaxial S/PDIF Out connector
  4. 1 x optical S/PDIF Out connector
  5. 1 x IEEE 1394a port
  6. 1 x clearing CMOS switch
  7. 8 x USB 2.0/1.1 ports
  8. 1 x RJ-45 ports
  9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
  1. iTE IT8720 chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System/North Bridge temperature detection
  3. CPU/System/Power fan speed detection
  4. CPU overheating warning
  5. CPU/System/Power fan fail warning
  6. CPU/System fan speed control (Note 5)
BIOS
  1. 2 x 8 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support for DualBIOS
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Virtual Dual BIOS
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for EasyTune (Note 6)
  8. Support for Dynamic Energy Saver Advanced
  9. Support for Time Repair
  10. Support for Q-Share
Bundle Software
  1. Norton Internet Security (OEM version)
Operating System
  1. Support for Microsoft  Windows  Vista/XP
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
Note (Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) For Windows Vista/XP 32-bit operating system only.
(Note 3) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
(Note 4) The PCIEX8_1 slot shares bandwidth with the PCIEX16_2 slot. When PCIEX8_1 is populated with a PCI Express graphics card, the PCIEX16_2 slot will operate at up to x8 mode.
(Note 5) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
(Note 6) Available functions in EasyTune may differ by motherboard model.


* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.

* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
