All stock codes associated to this product
0761345248518, 0-761345-24851-8, CP850, CP-850
Uniquely designed to bridge performance and value

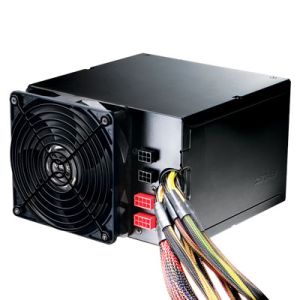

The CP-850 features a unique design with an advanced cooling system, exclusively compatible with some of Antec's most cutting-edge Gamer and Performance One enclosures, including the Twelve Hundred, P183 and P193. By breaking the mold of standardized power supply size restrictions, the CP-850 design is able to provide an excellent price-to-performance ratio. A silent rear 120mm Pulse Width Modulation (PWM) fan and dual PCB layout also ensure optimal cooling performance and reliability.
Features:
Unique power supply construction compatible with the following Antec cases:
- Twelve Hundred
- P183
- P193
- DF-85
NVIDIA SLI-ready certified
Advanced hybrid cable management improves airflow and reduces clutter
Meets 80 PLUS certification standards
Electrical compliance with ATX12V version 2.3 and EPS version 2.91
Dual PCB layout optimizes cooling efficiency and allows for heavy duty components
Quiet 120mm PWM cooling fan
Four +12V output circuits
Industrial grade protection: OVP (Over Voltage Protection), SCP (Short Circuit Protection), and OCP (Over Current Protection)
Universal Input with Active PFC
Two 8-pin(6+2) PCI-E connectors and two 6-pin PCI-E connectors
SATA connectors for Serial ATA drive
MTBF: 100,000 hours
Safety approval: UL, FCC, TV, CE, C-tick, CCC, CB
Safety protection: Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Current Protection (OCP)
Input Voltage: 100~240VAC 10%
Input frequency Range: 47Hz ~ 63Hz
Operating Temperature: 0C to 50C
AQ5 - Antec Quality five-year parts and labor warranty
Net weight: 7 lbs / 3.2 kg
Unit Dimensions:
4.7"(H) x 6.9"(W) x 7.9"(D)
11.94 cm(H) x 17.53 cm(W) x 20.07 cm(D)
Certification
Output Table
| |
Output Voltage |
|
Range MAX |
|
Reg. |
|
OCP Set Point |
Ripple & Noise |
| |
+5V |
|
30.0A |
|
5 |
|
34A |
50 |
| |
+12V1 |
|
22.0A |
|
5 |
|
37A |
120 |
| |
+12V2 |
|
22.0A |
|
5 |
|
37A |
120 |
| |
+12V3 |
|
25.0A |
|
5 |
|
37A |
120 |
| |
+12V4 |
|
25.0A |
|
5 |
|
37A |
120 |
| |
-12V |
|
0.6A |
|
10 |
|
|
120 |
| |
+5VSB |
|
3.0A |
|
5 |
|
|
50 |
| |
+3.3V |
|
24.0A
|
|
5 |
|
32A |
50 |
