Power Supplies -> 600W - 699W -> ThermalTake

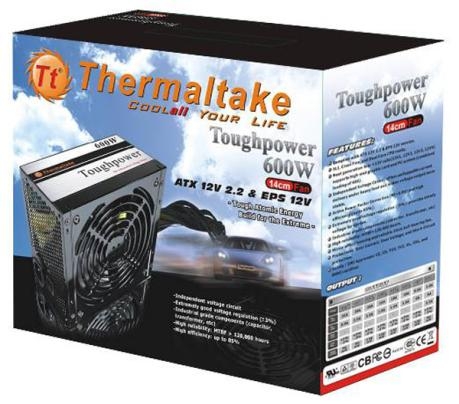

ThermalTake 600W ToughPower - ATX 12V v2.2, EPS 12V v2.91, 140mm Fan, CrossFire Certified
6xSATA, 1xPCI-E 8-Pin, 1xPCI-E 6-Pin


Product May Vary From Image
[More images available]

Our Price:Discontinued

Techbuy Part No:62786
Usually Ships: No Longer Available Details
Brand:ThermalTake Web Site
Manuf No:W0103
Shipping Weight:3 KG How Much?
Date Added:5/6/2006
Rating: Not Rated
Currency:AUD Convert

Product Description


12V Combined Output 48A AMD / Intel Dual Core Support ATX 12V 2.2 Complies EPS 12V 2.91 Version Mirror Finish PCI Express Connectors X2 S-ATA Connectors X6 SLI / Cross-Fire Ready
Complies with ATX 12V 2.2 & EPS 12V version
SLI, Cross-Fire, and Dual Core CPU ready
Next generation four +12V rails(12V1, 12V2, 12V3, 12V4) supports high-end graphic card and PC system (combined loading of 48A)
Independent Voltage Circuit: offers unflappable current delivery under heavy load and makes voltage output more stable
Active Power Factor Correction (PF>0.99) and high efficiency (up to 85%)
Extremely good voltage regulation (3%): provides steady voltage for system
Industrial grade components (capacitor, transformer, etc)
High reliability: MTBF>120,000 hours
Mirror effect housing and reliable 14cm ball-bearing fan
Protections: Over Current, Over Voltage, and Short-Circuit protection
Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified
8 pins PCI-E connector for next generation graphic card


  Total Output Connector:


24-pin Main Connector
X 1		 8-pin +12V Power Connector
X 1		 4-pin +12V Power Connector
X 1

4-pin Peripheral Power Connector
X 7		 4-pin Floppy Drive Connector
X 2 		5-pin S-ATA Connector
X 6

6-pin PCI Express Connector
X 1 		8-pin PCI-E Connector
X 1 		8-pin to 6-pin PCI-E Connector
X 1


  Detailed Feature:

Mirror Effect Housing
Quad +12V Rails and EPS Structure


Six S-ATA Connectors Silent 140mm Fan

Noise Preventive Silicon Pad - Effectively reduces vibration noise by as much as 80%


  Performance:

Specifications

GENERAL:
- Wattage 600 Watts
- Fan 140 mm
1900 RPM 10%
- Efficiency 85% +
- PFC Acitve PFC
- Hold-Up Time 16 ms
- Switches
ATX Logic on-off additional power rocker switch
- Motherboard Connectors

24-pin Main Connector
8-pin Power Connector
4-pin Power Connector
- Power Good Signal 100-500 ms
- Form Factor ATX 12V 2.2
- Dimension 6.3 x 5.9 x 3.3 inch (L)x(W)x(H)
160 x 150 x 85 mm (L)x(W)x(H)
- Warranty 5 Years
- Certifications ATI CrossFire X Certified
80 Plus Certified
AC INPUT:
- Input Voltage

100 VAC ~ 240 VAC
- Input Current

115 VAC / 8A max
230 VAC / 4A max
- Input Frequency Range 47 ~63 Hz
- Inrush Current
- Operating Range
- MTBF >120,000 hours
- RFI / EMI CE, CB, TUV, FCC, UL, CUL, BSMI
DC OUTPUT:
- Output Table
ENVIRONMENT:
- Operating Temperature
- Storage Temperature
- Operating Humidity
- Storage Humidity
PROTECTION:
- Over Voltage Protection

+5V trip point @ 7.0 Vmax
+3.3V trip point @ 4.5 Vmax
+12V trip point @15.6 Vmax
- Over Current Protection
- Over Load Protection
- Over Termperature Protection
- Under Voltage Protection
- Short Circuit Protection


Product Warranty


5 Year Return to Base
