No Longer Available

Part Number:
158952
Usually Ships:
No Longer Available More info
(?) Brand:
Manuf No:
JW-IG41M-L3
JWIG41ML3
Shipping Weight:
3 KG (Includes product packaging)

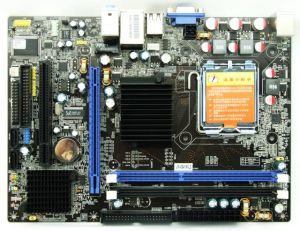

JW-IG41M-L3

  1. LGA775 for Intel Core 2 Quad/ Duo, Pentium Dual Core, Celeron processors
  2. Supports 2 x DDR3 1066/800 MHz memory modules
  3. Built-in Intel GMA X4500 DirectX 10 graphics
  4. 1 x true, full-speed PCIe x16, 1 x PCI
  5. FDD x 1, IDE x 1, SATA II x 2
  6. Realtek 5.1 Channel HD Audio
  7. Realtek 10/100M PCIe LAN
  8. VGA output, LPT and COM headers
Overview



The Intel G41 Express Chipset, with the next-generation Intel Graphics Media Accelerator X4500 (Intel GMA X4500), includes built-in support for smooth high-definition video playback without the need for add-in video cards or decoders (under Windows 7 or Windows Vista environment).

Intel GMA X4500 comes with Intel Clear Video Technology, a combination of video processing hardware and software technologies designed to enhance the visual experience.

In addition to video, the Intel G41 Express Chipset delivers optimized 3D graphics performance and support for Microsoft DirectX 10, Shader Model 4.0 and OpenGL 2.0, these graphics enhancements deliver the performance and compatibility you need for entertaining, everyday gameplay for the most popular game titles.

The Intel G41 Express Chipset includes support for the latest PC operating systems, including Windows 7.

* The specification and pictures are subject to change without notice.

* All trademarks and logos are the properties of their respective holders.

Specification


Processor

  1. LGA775 for Intel® Core™ 2 Quad, Core™ 2 Duo, Pentium® Dual Core, Celeron® (Conroe-L) processors
  2. Maximum TDP supported: 65W

Chipset

  1. Intel® G41 + ICH7 (Built-in Intel® GMA X4500 Graphics)
  2. Realtek® 10/100 Mbps PCIe Ethernet Controller
  3. Super I/O: Winbond W83627DHG(-P) chip
  4. Realtek ALC 662 5.1-Channel HD Audio Codec
  5. 8M bit flash ROM

Front Side Bus

  1. 1333/ 1066/ 800 MHz FSB

Memory

  1. Type: Dual Channel DDR3 1066/800 MHz memory support
  2. Max capacity: 8 GB
  3. DIMM slots: 2

Internal I/O

Connectors

  1. 1 x 24-pin ATX power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x Floppy disk drive connector
  4. 1 x IDE connector (for 2 PATA devices)
  5. 2 x SATA II 3Gb/s connectors
  6. 1 x CPU fan header
  7. 1 x System fan header
  8. 1 x Front panel header
  9. 1 x Front panel audio header
  10. 1 x USB 2.0 header for additional 2 USB 2.0 ports (by cables)
  11. 1 x IR header (optional)
  12. 1 x Speaker header
  13. 1 x S/PDIF Out header
  14. 1 x LPT port header
  15. 1 x Serial port header

Expansion Slots

  1. 1 x PCI-E x16 slot** (True, full x16 speed)
  2. 1 x PCI slot

Rear Panel I/O

  1. 1 x PS/2 Keyboard port
  2. 1 x PS/2 Mouse port
  3. 1 x VGA port
  4. 4 x USB 2.0 ports
  5. 1 x RJ-45 LAN port
  6. 3 x Audio jacks (Line In/ Line out/ Microphone)

Form Factor

  1. Micro-ATX
  2. 169mm (W) x 235mm (L)

H/W Monitoring

  1. Winbond W83627DHG(-P)
  2. System health status auto-detect and reported by BIOS

BIOS

  1. 1 x 8Mbit flash ROM, AMI BIOS

Bundle Software

  1.  Driver and Utility CD/DVD

Remark

  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME.
  3. Solid capacitors on CPU VRM.
