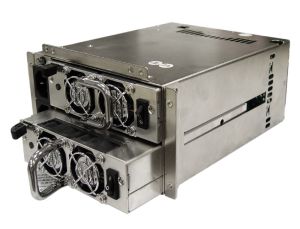

SilverStone ST46GF Redundant Power Supply - 460W+460W, Hot swappable, 40mm Fans, 24+8+4 Pin

IMG 1 of 1
No Longer Available
Part Number:
50868
(?) Brand:
SilverStone Web Site
Manuf No:
54ST46G4020
Shipping Weight:
6 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
54ST46G4020, ST46GF

Introduction
  For users with mission-critical systems or file servers, nothing is more important than a power supply with always up reliability and redundancy. By combining proven industrial grade components and a focus on performance, we came up with our first power supply in the Gemini series, the ST46GF. With an amazing dual 460W independent power packs stowed inside a PS/2 frame, it is now possible to enjoy the bullet-proof security of a 24/7 server in just about any case and any system!

Special Feature

460W + 460W PS/2 redundant power supply
Hot swappable
Industry-leading reliability
Durable zinc-plated surface
Convenient pull-out handle bars
Dual 40mm fans
Status LEDs

Max. DC Output 460W+460W
Load Range
  +3.3V +5V +12V +5VSB -12V -5V
Max.(Amps) 25A 25A 30A 2.0A 0.8A /
Peak (Amps) / / / / / /
Min.(Amps) 2A 2A 2.5A 0.1A 0.1A /
Range (%) +/-5% +/-5% +/-5% +/-5% +/-10% /
Line Reg.(%) +/-1% +/-1% +/-1% +/-1% +/-1% /
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV /
combined +3.3, +5V 150W Max
combined +12V 360W / 30A
Input Voltage 90V ~ 264V (Auto Range)
Input Frequency Range 47Hz ~ 63Hz
PFC Active PFC (PF>0.95 at full load)
Efficiency >70%
MTBF 100,000 hours at 25C , full load
Operating temperature 0 ~ 40C
Protection Over current protection, Over power protection, Over voltage protection, Short circuit protection, No Load Operation
Connectors 1 x 24-pin motherboard connector (550mm)
1 x 8-pin EPS12V connector (550mm)
1 x 4-pin ATX12V connector (550mm)
4 x Quad 4-pin IDE & single floppy power connectors
(500mm + 150mm + 150mm)
Color Silver
Cooling System Dual 40 mm Fan x 2
Noise Level 50 dBA
Dimension 150 mm (W) x 86 mm (H) x 140 mm (D)
Weight 2.3 kg


+3.3V & +5V : 150W Max.
3.3V & +5V & +12V : 440W Max.
Total DC output : 460W Max.
Protection : Over Current Protection , Over Voltage Protection , Short Circuit Protection , No Load Operation

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (SilverStone) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
