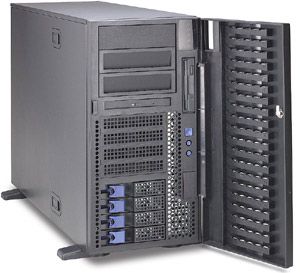

The Tyan Transport VX50 (B4881) offers nothing less than the flexibility and power to meet or exceed your computing requirements. Need a 5U rackmount? Need a full-scale tower? The Transport VX50 is convertible to both form factors!
In addition, the Transport VX50 supports up to eight (8) AMD Opteron 800 series processors with single and dual core support, and also offers four (4) SATA hot-swap drive bays (and additional four (4) with optional add-on kit), support for up to 128GB of Registered DDR memory, dual Gigabit Ethernet LAN ports, and redundant power supply options.
Motherboard: Thunder K8QW (S4881)
Motherboard
• TYAN Thunder K8QW (S4881): supports four
AMD Opteron™ 800 series processors
• SSI EEB (13" x 16")
CPU Board
• TYAN M4881: supports four AMD Opteron™
800 series processors (13" x 12")
Processor Compatibility
• Support four or eight AMD Opteron™
800 series processors
• Supports single⁄dual core
Chipset
• NVIDIA nForce™ Pro 2200 + AMD-8131™ Hyper
Transport PCI-X tunnel
• Winbond W83627HF Super I⁄O chip
• ADT7468 Hardware monitor IC
System Memory
• (32) DDR DIMM sockets: (16) M4881, (16) S4881
• Support up to 128GB reg. DDR 333⁄266 ECC
memory on 32 DIMMs (Only 64GB DDR 400
supported by quad-processor system)
• Supports 4-rank memory modules
Expansion Slots
• Two x16 PCI Express slots, one with x4 signal
• Two independent 64-bit PCI-X bus
• One 64-bit 133 MHz (3.3V) PCI-X slot
• Two 64-bit 100 MHz (3.3V) PCI-X slots
Integrated PCI Graphics
• ATI® RAGE™ XL PCI graphics controller
• 8MB Frame Buffer of video memory
Server Management
• Automatic system fan speed control
• Chassis intrusion alert
• Support Tyan Server Management (TSM)
• Tyan SMDC, IPMI compliant
remote server management kit (option)
Integrated LAN Controllers
• Broadcom BCM5704C dual-channel GbE LAN
- Two RJ-45 LAN connectors with LEDs
- Connected to PCI-X Bridge A
• Two Front Panel LED headers
BIOS
• Phoenix BIOS with 8Mbit LPC Flash ROM
• Serial Console Redirect; USB device boot
• ACPI 2.0 power management support
Chassis
Enclosure
• Convertible Pedestal and 19" rack-mountable
5U chassis
• Storage bay:
- (4) 3.5" HDD SATA hot swap bays
- (4) 3.5" Internal HDD bays
Upgradeable to hot swap bays via add-on kit
- (1) Slim CD-ROM bay
- (1) Standard FDD bay
- (3) 5.25" device bay
• Dimension: 16.7" (W) x 26.8" (D) x 8.7" (H)
• Dimension (mm): 425 (W) x 680 (D) x 220 (H)
Power Supply
• 900W 2+1 for (4-way); 1350W 3+1 for (8-way)
Front Panel Feature
• I⁄O: (2) USB 2.0 ports
• LED indicators for Power, HDD Active, ID, & LAN
• Switch: Power ⁄ Reset
Back I⁄O Ports
• (1) keyboard & one PS⁄2 mouse port
• (2) RJ45 10⁄100⁄1000 Base-T ports
with activity LEDs
• Two USB 2.0 ports
• One 9-pin UART serial port, one 15-pin VGA port
Storage Controller
• Two dual-port SATA II controllers integrated in
NVIDIA nForce Pro chip, supports up to four
SATA-2 drives with RAID 0, 1, 0+1
System Cooling
• 4 x 80*38mm DC Fans; 4 active CPU coolers
