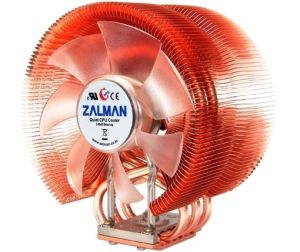

Zalman CNPS9700LED - 2-Ball bearing, Multi Socket, Ultra Quiet 110mm Fan with blue LED

IMG 1 of 1
No Longer Available
Part Number:
67071
(?) Brand:
Zalman Web Site
Manuf No:
CNPS9700
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Details Reviews Files Images & Video
All stock codes associated to this product
CNPS9700, ZMC9700LED, ZM-C9700LED
Compatible CPUs and Motherboards
  Socket CPU Silent Mode Normal Mode
Intel 775 Celeron D Supports all speeds Supports all speeds
Pentium 4
Pentium D
Core 2 Duo
AMD AM2 Sempron Supports all speeds Supports all speeds
Athlon 64
Athlon 64 X2
Athlon 64 FX
754 Sempron Supports all speeds Supports all speeds
Athlon 64
939 Athlon 64 Supports all speeds Supports all speeds
Athlon 64 X2
Athlon 64 FX
Opteron
Dual-Core Opteron
940 Athlon 64 FX Supports all speeds Supports all speeds
Opteron
Dual-Core Opteron
Specifications
FHS
Dimensions 90(L) X 124(W) X 142(H) mm
Weight Heatsink: 690g, Total (including fan): 764g
Base Material Pure Copper and Aluminum
Dissipation Area 5,490 cm2

Fan
Bearing Type 2 Ball-Bearing
Speed Silent Mode 1,250RPM 10 % Low-noise Mode 2,800RPM 10 %
Noise Level Silent Mode 19.5dB 10% Low-noise Mode 35dB 10%

FAN Speed Controller (FAN MATE 2)
- Dimensions : 70(L) x 26(W) x 26(H)mm
- Weight : 20g
- Output Voltage : 5V ~ 11V 2%
- Allowable Power : 6W or lower
- Connector : 3-Pin
Directions for Use
ZM-STG1
- Type : Non-curing compound
- Capacity : 3.5g
- Specific Gravity : 2.42
- Temperature Stability : -40C-150C (-40-302)
Directions for Use
1. Compatible with all single and dual core CPUs for Intels Socket 775 and AMDs Socket
AM2/754/939/940.

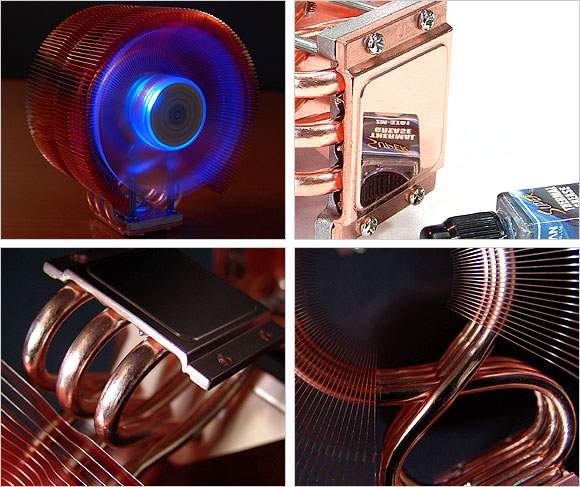

2.100% copper heatsink with aerodynamically optimized tunnel design for maximum cooling
efficiency.
3. Innovative and patented, curved heatpipe design for a heat transfer capacity of up to six heatpipes with
the use of just three.
4. 0.2mm ultra-slim fins for minimized weight and reduced airflow resistance.
5. Ultra quiet CNPS 110mm LED fan.
6. Does not generate noise or vibration in Silent Mode.
7. Adjustable fan speed controller (FAN MATE 2) included.
8. Super Thermal Grease (ZM-STG1) included.
Common Components
1) One (1) CNPS9700
2) One (1) Thermal Grease (ZM-STG1)
3) One (1) Fan Speed Controller (FAN MATE 2)
4) One (1) FAN MATE 2 Cable
5) One (1) Double-sided Tape (For attaching FAN MATE 2)
6) One (1) Users Manual

Components for Intel Socket 775
7) One (1) Clip (S-Type)
8) Four (4) Bolts (for installing the cooler)
9) Four (4) Clip Support Fixing Bolts for Socket 775
10) One (1) Clip Support for Socket 775
11) One (1) Backplate for Socket 775

Components for AMD Sockets AM2/754/939/940
12) One (1) Clip for AMD Sockets
13) One (1) Clip Lever for AMD Sockets
Zalman affixes a Computer Noise Prevention System (CNPS) mark to all components used for
noiseless computers.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12-month Manufacturer

Full manufacturers warranty details are available at the manufacturers (Zalman) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

Average Visitor Review:
Number of Reviews Found: ( / 5 )

Reviewd By: George
Visitors Age: 45
Visitors Rating:

Stable cooling,good enough to use on my QX6700.

I have a P5W DH Deluxe Asus mainboard,Intel 975X chipset inside a kandalf case by thermaltake with a 25cm fan side replacement panel.On the average my bios temperature shows around 40 dregrees celcius and may be up to 45 degrees celcius when I over clock to 3.16 or 3.2 GHz.QX6700 is native at 2.66 GHz.I have 2 fans in front and 2 in rear and 1 at top plus the 25cm side fan panel.I have had this overclocked for several days in a row and had no trouble with this cpu.This fan is good enough to do the job.
