Zalman 600W ZM600-HP PSU - ATX 12V v2.2, EPS 12V, Heatpipe/120mm Fan, Modular Cabling, SLI Ready
  • 6xSATA, 2xPCI-E 6-Pin

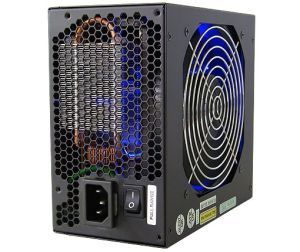

IMG 1 of 1
No Longer Available
Part Number:
67072
(?) Brand:
Zalman Web Site
Manuf No:
ZM600-HP
ZM600HP
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
ZM600HP, ZM600-HP
ZM600-HP is ultra-quiet power supply complies with ATX12V Version 2.2, and supports the lastest dual-core CPUs(Intel Core2 series/AMD Athlon64-X2 series), as well as the lastest dual graphic card systems(SLI).

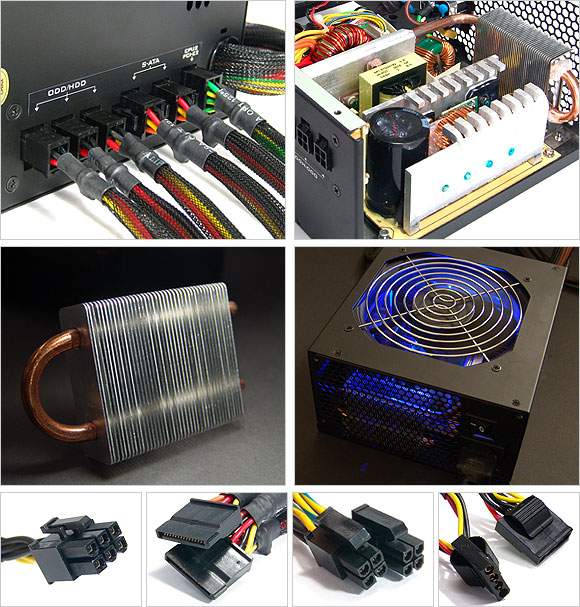

Heatpipe Installed for Maximum Cooling Performance and Ultra-Quiet Operation
A heatpipe with ultra-high cooling performance incorporated on the power supplys main
rectifiers enables high load operation even at low RPM for a dramatic reduction in noise levels.

Improved Power Factor & Reduced Harmonics through Active PFC
By implementing Active PFC(Power Factor Correction), the Power Factor (PF) is improved from 75% (Passive PFC) up to 99% while harmful harmonic frequencies are reduced to meet the line harmonic distortion requirements of IEC61000-3-2 Class D.

High Efficiency Design
This power supply is capable of reaching a maximum of 84% efficiency(230VAC, Full & Typical Load) through its use of high switching frequency and low power-loss circuitry.

ATX20+4 Pin Main Connector
ATX20+4 pin main connector broadens the range of motherboard compatibility.

Supports ATX12V CPU 4-Pin and EPS12V CPU 8-Pin
Two ATX12V CPU 22(4-Pin) power cables can be combined to form an EPS12V CPU
8-Pin power cable.

Dual PCI Express VGA Power 6-Pin Connector
Support Nvidia SLi dual graphic card systems.

Module Cables
Modular cables provide organized cable management and improved air circulation inside the computer case.

Ultra Quiet 120mm Fan
Ultra quiet 2-Ball Bearing 120mm fan maximizes the airflow and minimizes the noise level enabling a noiseless computing environment with optimized cooling.

Four Independent +12VDC Outputs
Four +12VDC rails supply power independently to the CPU, VGA, motherboard, and peripheral
components for the highest level of stability and performance.

EZ Grip Connectors for ODDs & HDDs
EZ Grip Connectors for easy removal of the plugs from ODDs & HDDs.

Gold-Plated Terminals
Gold-plated the terminals minimize power loss by reducing contact resistance.

Sleeved Cables
All power cables are sleeved for easy cable management and improved air circulation inside
the computer case.

Multiple Safety Features
Over-Voltage Protection, Over-Current Protection, Short-Circuit Protection, Under-Voltage Protection, Over-Temperature Protection.

Internal Blue LED
Blue LEDs are installed inside the power supply for cool aesthetics.

WEEE & RoHS
Complies to WEEE & RoHS Environmental Directives of Europe.

- WEEE : Waste Electrical and Electronic Regulations
- RoHS : Restriction of Hazardous Substances Regulations

International Safety and EMC Certifications
Specifications
Output Power Cable Specifications

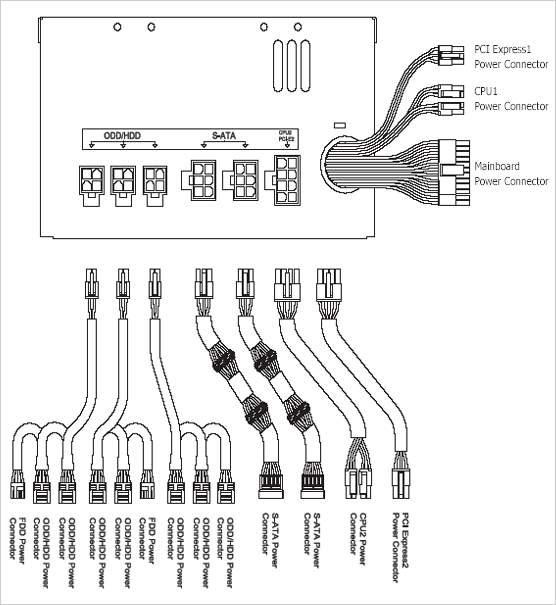

[Cable Lengths & Connector Names]

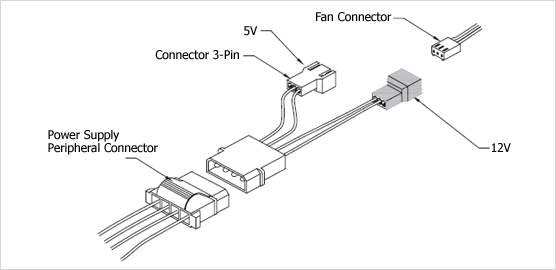

[Using the Multi-Connector (ZM-DC1)]
Electrical & Physical Characteristics
AC Input Range
 Voltage
100VAC ~ 240VAC 10% DC OUTPUT
Frequency 47Hz~63Hz Output V. Output Load
ange
 Combined
Power
AC Input Current
(Rated)		 115VAC 10A Imin Imax Ipeak
230VAC 5A +3.3V 0.8A 24A
   155W 600W
PFC Type Active PFC +5V 0.3A 24A
Power Factor 99% Maximum
 +12V1 0A 16A   504W
Inrush Current
Limit
(@ Cold start
at 25C)		 115VAC 60A
 +12V2 0A 16A
230VAC 100A +12V3 1A 16A
Efficiency 84% Maximum @230VAC, Full&Typical load
 +12V4 1A 16A
DC Output
Voltage
Regulations
 Output V. Regulation Range
 At Full
Load		 -12V 0.0A 0.5A   18.5W
+3.3V 5% +3.14V~+3.47V
 +5VSB
 0.0A 2.5A 3.5A
+5V 5% +4.75V~+5.25V Protection Features
+12V1 5% +11.4V~+12.6V Over Voltage Protection(OVP)
+12V2 5% +11.4V~+12.6V Over Current Protection(OCP)
+12V3 5% +11.4V~+12.6V Short Circuit Protection(SCP)
+12V4 5% +11.4V~+12.6V Over Temperature Protection(OTP)
-12V 10% -10.8V ~-13.0V Under Voltage Protection(UVP)
+5VSB 5% +4.75V~+5.25V Ambient Temperature
DC Output
Ripple
& Noise		 Output V. Specification At Full
Load		 Operation 0C ~ +50C
+3.3V 100mV Storage -20C ~ +80C
+5V 100mV Ambient Humidily
+12V1 200mV Operation 5%RH ~ 95%RH
+12V2 200mV Storage 5%RH ~ 95%RH
+12V3 200mV Dimensions
+12V4 200mV 150(L) X 165(W) X 86(H) mm
-12V 200mV
+5VSB 100mV
To create a true noise-free computer, Zalmans Quiet CPU Cooler, Quiet VGA Cooler, Heatpipe HDD Cooler, Fanless Northbridge Cooler, and Noiseless Case Fan should be used together with this product.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year RTB

Full manufacturers warranty details are available at the manufacturers (Zalman) web site.
