All stock codes associated to this product
41TJ09SW0021, 41TJ09S-W0021, TJ09SIW, TJ09-SI-W

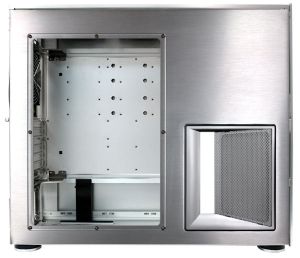

The Temjin TJ09 is the first SilverStone chassis designed with graphics card cooling as one of the priorities. To meet this challenge, a brand new mid-section air duct was created to bypass the hard drive cage, allowing the strategically placed 120mm to draw cool air from outside of the chassis and blow it directly onto the expansion slot area. CPU and hard drives are also cooled exclusively by 120mm fans to maximize airflow while reducing noise. Covered in styling reminiscent of beautiful chassis of years past, the TJ 09' s advanced structure is second in stiffness only to the unibody designed TJ07. If you have been waiting for a chassis with plenty of technical and aesthetic excellence worthy of an upgrade, then the TJ09 is the one.
Premium all-aluminum chassis for extended ATX, ATX, SSI motherboards
120mm fan only design for ultimate performance & quietness
Unprecedented air duct dedicated for graphics card cooling
Advanced structural engineering with superior chassis stiffness
User friendly layout with multiple tool-less access
Classic SilverStone styling and finish
| Material |
5.0mm aluminum front panel, 2.0mm aluminum body
|
| Color |
Black |
| Silver |
| Motherboard |
SSI, Extended ATX, ATX, Micro ATX |
| Model |
Standard Model |
SST-TJ09B (black) |
W / Window |
SST-TJ09B-W (black) |
| SST-TJ09S (silver) |
SST-TJ09S-W (silver) |
| Drive Bay |
Exposed |
5.25 x 4, 3.5 x 1
|
| Internal |
3.5 x 6 |
| Cooling System |
Top |
2 x 120mm fan slots |
| Rear |
1 x 120mm exhaust fan, 1200rpm, 21dBA |
| Mid-section |
1 x 120mm intake fan, 1200rpm, 21dBA |
| Front/HDD area |
1 x 120mm fan slot |
| Expansion Slot |
7
|
| Front I/O Port |
USB2.0 x 2
IEEE1394 x 1
audio x 1 ]
MIC x 1
|
| Power Supply |
1 x Optional standard PS2 (ATX) or 1 x Redundant PS2 |
| Net Weight |
11 kg
|
| Dimension |
210 mm (W) x 525 mm (H) x 605 mm (D) |
