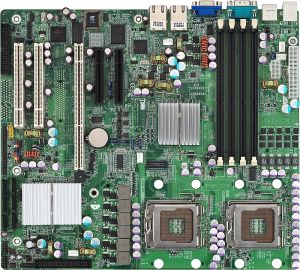

MB-S5370G2NR | Tyan Tempest i5000VF S5370G2NR

Processor
Dual LGA771 sockets
Support up to two Intel Xeon processors
5000/5100 series; dual-Core
1333/1066/667MHz FSB; VRD 11.0

Chipset
Intel 5000V chipset
Intel 6321ESB I/O Controller Hub
SMSC SCH5017 Super I/O chip

Memory
Four (4) 240-pin DDR2 FBDIMM sockets
Dual memory channels
Supports ECC memory
Supports DDR2 FBDIMM 667/533MHz

Expansion Slots
Two (2) PCI-E x8 slots (with x4 signal)
One (1) PCI-X slot 133/100MHz slot
Two (2) PCI 32-bit 33MHz slots
Total of five (5) expansion slots (from ESB2)

Integrated I/O
One 9-pin 16550 UART serial port
One 15-pin VGA port
Eight USB 2.0 ports (two at rear,
three front headers support six ports)
PS/2 mouse and keyboard connectors
One FDD connector
One IDE connector supports ATA 100
Six standard/integrated SATA ports
Two RJ-45 10/100/1000 LAN ports side by side

System Management
Winbond W83793G Hardware Monitor ASIC
CPU thermal and voltage monitoring support
2-pin chassis intrusion header
4-pin fan monitoring header
Five (5) fan headers with tachometer and
auto fan control (4-pin configuration)

Integrated Video Controller
XGI Volari Z7 (XG20); PCI interface
16MB DDR frame buffer of video memory

Integrated LAN Controllers
Intel Gigabit from ESB2 (w/ "Gilgal"); ASF 2.0 opt.
Two front panel LED headers (Link/Act)
Two RJ-45 port with LEDs

Integrated SATA Controller (ESB2)
Six (6) SATA 2.0 ports from Intel ESB2
RAID 0, 1, 5, 10 supported
(RAID 10 only supported under windows)

Intelligent Platform Management Interface (optional)
Baseboard Management Controller (BMC)
BMC from daughter card M3291
(Hitachi BMC Renesas H8S2167)
Tailored for IPMI 2.0 specification
Supports remote Power on/off and reset support
(IPMI-over-LAN)
Server Management Daughter card via built-in
2x25 header

BIOS
Phoenix BIOS on 8Mbit Flash ROM
Serial Console Redirect
PXE via Ethernet, USB device boot
PnP, DMI 2.0, WfM 2.0 Power Management
Auto-configuration of hard disk types
Multiple boot options
48-bit LBA support

Form Factor
SSI CEB v1.01 footprint (12" x 10.5")

Power
EPS12V / SSI (24 + 8 pin) power connectors

Regulatory
FCC Class B (Declaration of Conformity)
European Community CE (DoC)
