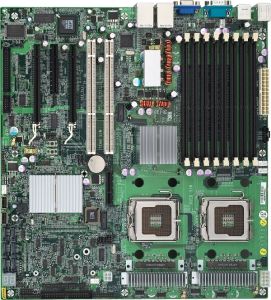

Processor
Dual LGA771 sockets
Supports up to two Intel Xeon processors
5000/5100 series; dual-core
1333/1066/667MHz FSB; VRD 11.0
Chipset
Intel 5000P chipset
Intel 6321ESB I/O Controller Hub + PXH-V
Winbond 83627HF Super I/O chip
Memory
Eight (8) 240-pin DDR2 FBDIMM sockets
- Eight (8) FBDIMMs onboard
Supports DDR2-533/667 FBDIMM; max. 16GB
Expansion Slots
(2) PCI-X 64/133MHz slots
(1) inversed PCI-E x4 slot (w/ x8 signal) for
risers, in-lined with the first PCI-X slot
(1) PCI-E x16 slot (w/ x8 signal)
(1) PCI-E x8 slot (w/ x4 signal)
(1) PCI-E x16 slot (w/ x8 sig. from Blackford MCH)
Total of five expansion slots
Integrated I/O
One 9-pin 16550 UART serial port
One 15-pin VGA port
One IDE and onefloppy connector
Six (6) SATA 2.0 ports support RAID 0, 1, 5, 10
Eight (8) USB 2.0 ports (six at rear, two onboard
vertical USB Type A connectors))
PS/2 mouse and keyboard connectors
System Management
Analog Devices ADT7468 Hardware Monitor
ASIC
CPU thermal and voltage monitor support
2-pin chassis intrusion header
Multiple 4-pin and 3-pin fan monitoring headers
Integrated Video Controller
ATI ES1000; PCI interface
32MB DDR frame buffer of video memory
|
|
|
Integrated LAN Controllers
One Intel Intel "Gilgal" network controller
- Direct link to ESB2
Two Gigabit LAN ports
Front panel LED headers (Link/Act)
Integrated SATA Controller
Six (6) SATA 2.0 ports from Intel ESB2
RAID 0, 1, 5, 10 supported
(RAID 10 only supported under windows)
Intelligent Platform Management Interface (optional)
Baseboard Management Controller (BMC)
BMC from daughter card M3291
(Hitachi BMC Renesas H8S2167)
Tailored for IPMI 2.0 specification
Supports remote Power on/off and reset support
(IPMI-over-LAN)
Server Management Daughter card via built-in
2x25 header
BIOS
Phoenix BIOS on 8Mbit Flash ROM
Serial Console Redirect
PXE via Ethernet, USB device boot
PnP, DMI 2.0, WfM 2.0 Power Management
User-configuration of H/W monitoring
Auto-configuration of hard disk types
Multiple boot options
48-bit LBA support
Form Factor
SSI / Extended ATX footprint (12" x 13")
Power
EPS12V / SSI (24 + 8 + 4 pin) power connectors
Regulatory
FCC Class B (Declaration of Conformity)
European Community CE (DoC)
|
|
