All stock codes associated to this product
P65MDDE128F, P65-MDDE128F, 11P65MDDE128, 11P65-MDDE128

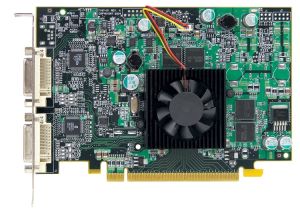

The Matrox P650 PCIe 128 is a dual monitor PCI Express x16 graphics card with 128 MB of memory.
- Native PCI Express x16 support
- Matrox DualHead to use two digital or analog monitors at a time (in "independent" or "stretched" mode)
- Joined graphics card mode enables an additional Matrox DualHead* or TripleHead** graphics solution to work in tandem in one system to drive up to four displays
- 128 MB graphics memory
- Matrox UltraSharp Display Output Technology
- Multi-display 2D/3D OpenGL and Microsoft DirectX acceleration
- Unified Microsoft Windows 2000, Windows XP, and Windows Vista XDDM display driver for P-series and Parhelia series
- Matrox-certified display driver available for leading CAD and GIS software
- Easy-to-use Matrox PowerDesk driver interface
- Widescreen resolution support and additional functionality via Matrox PowerRes
- Display pivoting (rotation) support
- Matrox Clone to view a copy of one display on the other display
- Matrox Multi-Display Zoom to view a portion of one display full-screen on the other display
- Matrox PureVideo to view hardware-accelerated video playback in a video window on one display and full-screen on the other display
- Matrox Glyph Anti-Aliasing for the hardware-accelerated smoothing of text edges
- Support for customizable unattended installation for rapid multi-system setup
* With Joined graphics card mode, a DualHead graphics card can only be joined with another DualHead graphics card to drive a maximum of four displays.
** TripleHead graphics cards are supported in DualHead mode only.
Joined graphics card mode multi-display configurations can be obtained by downloading the Matrox PowerDesk-SE version 2.04 display driver and above.
Hardware included
- Matrox P650 PCIe 128 graphics card
- 2 DVI-to-HD15 connector adapters
Software included
- Matrox display driver for Microsoft Windows 2000 and Windows XP*
- Matrox PowerDesk (driver interface and utilities)
* Drivers for Windows Server 2003, Windows XP X64 (64-bit) and Windows Vista XDDM available online. For other possible operating systems, contact Matrox.
Optional upgrades
- TV-output adapter cable (composite video and S-video, 1-foot)
Maximum resolutions (per display)
- Digital, 1-2 monitors: 1920 x 1200
- Analog, 2 monitors: 1920 x 1440
- Analog, 1 monitor: 2048 x 1536
| Part Number |
P65-MDDE128F * |
| Card type |
PCIe x16 (PCI Express x16) |
| Graphics Memory |
128 MB |
| Bracket connectors |
DVI x 2 |
| Card form factor |
ATX |
| Bracket form factor |
ATX |
| EMC certifications |
Class A ACA, CE, CSA, FCC, VCCI |
| Card size |
6.4" x 4.4"
(Card size = length, not including bracket and bracket connectors x height, including slot connector. Card width is within specifications for a single card of the given type.)
|
