ASUS WL-500W Wireless Router - 802.11b/g, Draft 802.11n, 4-Port Switch, USB

IMG 1 of 1
No Longer Available
Part Number:
72021
(?) Brand:
ASUS Web Site
Manuf No:
WL-500W
WL500W
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
WL500W, WL-500W
WL-500W
The First 802.11n Multi-Functional Wireless Router
  • Draft 802.11n compliant, fully compatible with 802.11b/g
  • Suitable for seamless multimedia stream
  • EZSetup for network security - Automatically configure SSID and WPA or WEP encryption
  • Plug-n'-Share hard drive function via USB 2.0
  • ASUS Download Master - Download anytime even when the PC is off or disconnected



The ASUS WL-500W Super Speed N multifunctional wireless router adopted the latest 802.11n draft to deliver high-speed data transfer and unparalleled interoperability between n-draft devices. It also incorporated Download Master and USB Pug-n-Share features for convenient digital content downloads and sharing of printer, webcam and external hard drive functions.

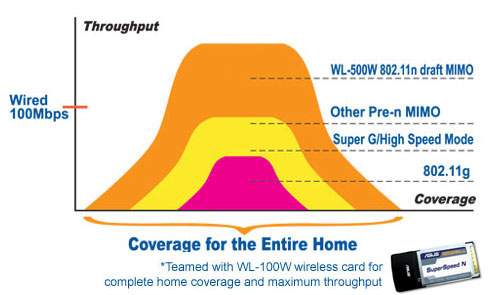

Faster than Wired Connection
The WL-500W router adopted the latest wireless technology, 802.11n draft. With MIMO (Multiple Input, Multiple Output) technology, the WL-500W achieves speeds higher than 100Mbps, making it suitable for whole home multimedia streams. 802.11n draft products are fully compatible with legacy 802.11b/g devices.


Download Master The Easy Way Download
Turn the WL-500W into a wireless storage device by connecting an external hard drive, and enjoy the convenience brought by Download Master. It is a unique technology found in ASUS wireless solutions that features several innovations to simplify the download process. For laptop users, simply set download priorities then disconnect the laptop, and let the WL-500W and Download Master take care of everything. When users return from home or office, the files they demanded will be neatly arranged in the external hard drive.

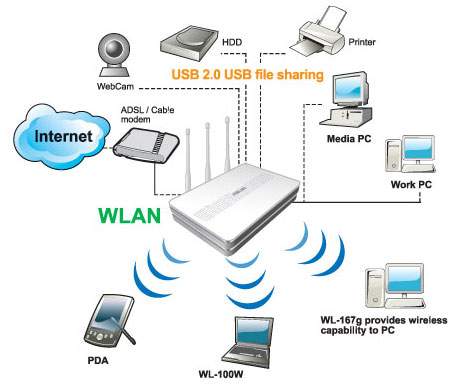

Plug-n-Share
The WL-500W offers a host of USB Plug-n-Share functions. Whether its hard drives, printers or webcams, just plug them in via the USB 2.0 ports to enable other devices in the network to share their functions.
Plug-n-Share hard drive is especially worth highlight. It acts as a ftp server, which lets users backup data from their computers and use network neighborhood in Windows to browse external hard drive content. All these functions can be enjoyed without connecting the WL-500W to any computer systems.




Specification
WAN Ports
1 x RJ45 for 10/100 BaseT
LAN Ports
4 x RJ45 for 10/100 BaseT
Antenna
3 x external dipole antenna
Power
AC input: 100V~240V(50~60HZ); DC output: 5V with max. 2.5A~3A current
USB Interface
2 x USB2.0
Operating Frequency
2.4 - 2.5 GHz
Data Rate
802.11n Draft up to 270Mbps* (*Note: The maximum wireless signal rate is IEEE802.11n draft specifications. Actual throughput will vary depending on the wireless environment and other parameters)

802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps

802.11b: 1, 2, 5.5, 11Mbps
Encryption
64/128-bit WEP, WPA, WPA2, TKIP, AES, WPA-PSK, WPA2-PSK, MAC address, 802.1x
Applications
Download Master: Download ftp, http and BT (BitTorrent) automatically
FTP Server
WebCAM Server
Printer Server: TCP/IP (LPR, supported in Windows XP, Windows 2000 and MAC OS)
Management
Smart Wizard browser-based administration
Bandwidth Management
Remote management
DHCP server, WAN DHCP client
Save/restore configuration files
Upgrades via web browser
Firmware restoration
Device discovery
Security
Firewall:
- NAT and SPI (Stateful Packet Inspection), intrusion detection including logging

Logging:
- Dropped packet, security event, Syslog

Filtering
- Port, IP packet, URL Keyword, MAC address
Buttons
Restore button: Push for 5 seconds to restore factory setting

EZSetup button: Automatically SSID and WEP or WPA configuration
Operating Modes
11 for N. America, 14 Japan, 13 Europe (ETSI)
Output Power
12~15dBm(g mode), 15~18dBm(b mode), 14~16dBm(n mode)
WAN Service
Static IP Address
Dynamic IP Address (DHCP Client)
PPP over Ethernet (PPPoE)
PPTP
L2TP
Big Pond

* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2-year Manufacturer

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
