IMG 1 of 1
No Longer Available

Part Number:
72515
(?) Brand:
Manuf No:
QUADRO NVS 440X1
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
QUADRONVS440X1, QUADRO NVS 440X1, VGLEQUNVS440E1

The NVIDIA Quadro NVS 440 multi-display graphics solution provides rock-solid hardware that delivers crystal clear images and display flexibility with support for both analog and digital displays. Combining hardware and software, the Quadro NVS 440 supports up to 256MB ultra-fast DDR3 memory and incorporates the innovative NVIDIA nView display technology, the highly efficient Lightspeed Memory Architecture (LMA) II, and the advanced NVIDIA Accuview antialiasing techniques.

Power by two state-of-the-art GPUs (Graphics Processing Units) and equipped with two high-density DMS-59 connectors and dual integrated 400 MHz RAMDACs, the Quadro NVS 440 supports up to four analog and/or digital displays. (4 x DVI-I or 4 x VGA; up to 20481536 at 75 Hz for analog displays and up to 19201200 for digital displays.) Combined with nView software which manages and displays more data faster, these features make the Quadro NVS 440 the ideal graphics solution that requires multi-display function with the best price performance.

Aim to offer superior graphics performance and value to power users, the NVIDIA Quadro NVS 440 delivers high image quality, compatibility, and stability to professionals who require such abilities as tracking data across multiple displays, navigating several desktop applications and administering the entire corporate enterprise. Quadro NVS 440 is the preferred choice for a majority of the financial trading houses, hospitals, corporate desktops, insurance, emergency dispatch (911), call centers, advertising, video wall, EDA, and process control centers. Hundreds of applications can run on Quadro NVS 440 including: Bloomberg, Reuters, Hummingbird, pcAnywhere, Lotus Notes, Microsoft Office Suites, and many others.

NVIDIA nView software allows Quadro NVS 440 users to spread their work across multiple displays instead of stacking window upon window on one monitor. Professionals can section off displays with gridlines to organize windows, gain quicker access to hidden windows using transparencies in applications and maximize desktop real estate.

NVIDIA UDA, the single unified driver for all NVIDIA graphics products, ensures high performance and image quality with a set of backward-and-forward, top-to-bottom compatible graphics drivers that make large-scale system deployment and unattended installations easy.


The Quadro NVS 440 key features:
PCI-Express x1 High Speed Graphics Bandwidth
The bandwidth of the Quadro NVS 440 PCI-E x1 interconnection is much higher than PCI and reaches 250MB/sec in both upstream and downstream data transfers. PCI-E x1 design allows Quadro NVS 440 to be compatible with all compliant PCI-E slots (compatible with any xPCI-E slots: x1, x4, x8, x16).
*Available on NVIDIA Quadro NVS 440 PCI-E x1 product.
High-Density Connectors
Provide flexible support for a variety of display types from analog to digital. Dual high-density connectors support quad-analog or digital displays (4 x DVI-I or 4 x VGA).
Dual 400MHz RAMDACs
Deliver crystal-clear image quality, and support to 2048 1536 at 75Hz on each display.
Intergrated TMDS Transmitters
Enable support for the latest digital flat panel (DFP) displays, resolution up to 1920 1200.
nView Multi-Display Technology
Permits work to be viewed on two monitors with nView multi-display software. The nView hardware and software technology combination delivers maximum flexibility for multi-display options, and provides unprecedented end-user control of the desktop experience.

Unified Driver Architecture
Provides easy installation and manage ability through a single unified driver for large scale system deployment.



Quadro NVS 440 Specifications

Board Features Quadro NVS 440
Memory Size 256MB GDDR
Memory Interface 128-bit
Bus Interface PCI-E x16 PCI-E x1
Form Factor ATX
Display Connectors DMS-59 (2)
Max Displays per Board 4 [4 VGA/DVI]
Maximum Digital Display Support 1920 x 1200
Maximum Analog Display Support 2048 x 1536
Passive Cooling Yes
nView Enabled Yes
RoHS Compliant Yes

NVIDIA Quadro NVS 440 GPU
Unlike the regular 32bit 33MHz PCI bus (bandwidth 133 MB/sec), the bandwidth of the new Quadro NVS 440 PCI Express x1 interconnection is much higher and reaches 250MB/sec simultaneously in each direction. The PCI-E x1 design allows Quadro NVS 440 to be compatible with all compliant PCI-E slots.
*Available on NVIDIA Quadro NVS 440 PCI-E x1 product.
nView Multi-display Technology Empower users with maximum flexibility in display options and control
Ships with 256 MB DDR3 local frame buffer and is targeted as an ideal solution for the corporate and enterprise markets.
Offers professional 2D workstation features such as dual integrated 400 MHz RAMDACs that deliver up to 2048 1536 at 75 Hz for analog displays and up to 1920 1200 for digital displays. (1900 1200 is supported on some panels only)
Supports four display options: 2 x DMS-59 (4 x DVI-I or 4 x VGA).
Fully compliant with professional OpenGL 2.0 and DirectX 9.0c applications

System Requirements
Intel Pentium 4/Celeron, or AMD Athlon/Opteron class processors or higher
One available PCI Express compatible slot
Installation software requires CD-ROM or DVD-ROM drive
Microsoft Windows XP, 2000, or Linux operating system
50MB of available disk space for full installation
VGA or DVI-I compatible monitor
Package Contents

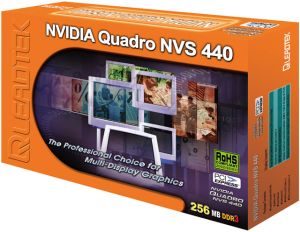

Leadtek Quadro NVS 440 graphics card
User's Manual
Software CD
DMS-59 to DVI-I cable x 2

DVI to VGA Converter x 4

  All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  The bundled adapter, cable and software information on this webpage is provided for informational purposes only and is subject to change without notice.
  Brand and product names mentioned are trademarks of their respective companies.

No additional files, specification sheets, guides or documentation found for product.
