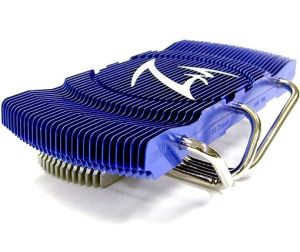

Zalman VNF100 Passive Video Card Cooler, Includes VGA Memory Heatsinks

IMG 1 of 1
No Longer Available
Part Number:
74640
(?) Brand:
Zalman Web Site
Manuf No:
VNF100
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
VNF100
VNF100 VNF100

1. Zalmans patented VFP (Variable Fin Profile) Fin Design maximizes cooling efficiency and dissipation surface area for excellent performance.

2. Fanless VNF100 does not emit any noise and can be used semi-permanently.

3. Three high performance heatpipes provide maximized heat transfer.

4. Thin aluminum fins (0.4mm) provide minimized heatsink weight, and prevents excessive force on the VGA card.

5. The heatsink positioned above the VGA card optimizes cooling efficiency and allows compatibility with SLI and CrossFire setups.

6. VGA RAM Heatsninks allow the cooling of VGA RAM.

7. Improved installation structure provides easy installation and broad compatibility.
Specifications

- Dimensions : 166(L) X 95(W) X 38.5(H)mm
- Weight : 180g
- Materials
Fins : Pure Aluminum (Anodized)
Base : Pure Aluminum
Front Heatsink : Aluminum
Heatpipes : Pure Copper (Nickel-Plated)
RAM Heatsink : Pure Aluminum

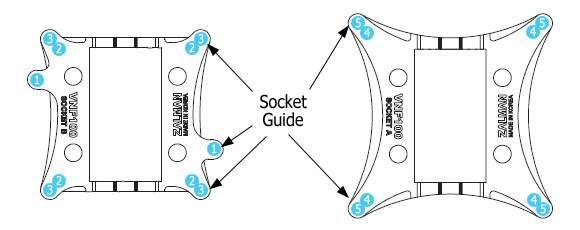

Nipple Installation Holes for Various VGA Cards


Nipple Installation Holes VGA Card
ATI X1050 Series
ATI X1300 Series
ATI X1600 Series
ATI Radeon 9*** Series
ATI Radeon X*** Series (except X700 Pro, X850 Series)
NVIDIA Geforce4 MX Series
NVIDIA Geforce FX 5200
NVIDIA Geforce FX 5500
NVIDIA Geforce FX 5600 (FX 5700)
NVIDIA Geforce 6600 Series (except 6600 AGP Series)
NVIDIA Geforce 7300 Series (except 7300 AGP Series)
NVIDIA Geforce4 TI 4 Series
NVIDIA Geforce FX 5700(Ultra) Series
NVIDIA Geforce FX 5800 Series
NVIDIA Geforce 6600 Series (except 6600 AGP Series)
ATI X1300 Series
ATI X1550 Series
ATI X1600 Series
NVIDIA Geforce 8600 Series
NVIDIA Geforce 8500 Series
NVIDIA Geforce 7600 GS Series
NVIDIA Geforce 6600 Series (except 6600 AGP Series)
NVIDIA Geforce FX 5900 Series
NVIDIA Geforce FX 5950 Series
ATI X1800 XL Series
NVIDIA Geforce 7950 Series (except GX2 Series)
NVIDIA Geforce 7900 Series (except GTO, GTX Series)
NVIDIA Geforce 7800 Series (except GS, GTX Series)
NVIDIA Geforce 7600 Series (except 7600 AGP Series)
NVIDIA Geforce 7300 Series (except 7300 AGP Series)
NVIDIA Geforce 6800 Series
1) One (1) Rear Heatsink
2) One (1) Base
3) One (1) Socket A
4) One (1) Socket B
5) One (1) Front Heatsink
6) Four (4) Nipples
7) Four (4) Fixing Nuts
8) Four (4) Fixing Bolts
9) One (1) PVC Washer Plate
10) Four (4) Rubber Rings
11) Two (2) Thermal Grease
12) Eight (8) RAM Heatsinks (ZM-RHS2)
13) One (1) Users Manual

1. If this product will be installed on a recently released VGA card, please check for compatibility at Zalmans website first.

2. The product cannot be installed on Matrox VGA cards, NVIDIA PCX 5 , NVIDIA Geforce 6600 AGP Series, Geforce 7600/7300 AGP Series, and ATI Radeon X700 Pro Series.

3. If the VGA card and its components interfere with the installation of this product, stop the installation, refer to the list of compatible VGA cards at Zalmans website and install this product with one of the compatible VGA cards.

4. The use of an exhaust fan positioned on the rear side of the case is recommended for enhancement of product performance.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12-month Manufacturer

Full manufacturers warranty details are available at the manufacturers (Zalman) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
