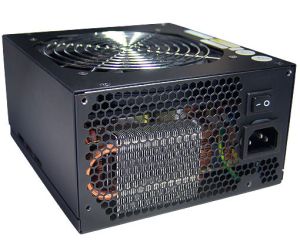

Zalman 750W ZM750-HP PSU - ATX 12V, EPS 12V, 120mm Fan, Modular Cables, SLI Ready, 80 PLUS Certified
  • 9xSATA, 2xPCI-E 6-Pin

IMG 1 of 1
No Longer Available
Part Number:
77230
(?) Brand:
Zalman Web Site
Manuf No:
ZM750-HP
ZM750HP
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
ZM750HP, ZM750-HP

Zalmans CNPS products enable a noiseless computing environment, in accordance with our policy of developing people-friendly products. This ultra-quiet power supply complies with ATX12V Ver2.2 and supports the lastest dual-core CPUs(Intel Core2 series/AMD Athlon64-X2 series), as well as the lastest dual graphic card systems(SLI/CrossFire).

* CNPS (Computer Noise Prevention System) refers to a system that reduces a conventional
computers noise level (30dB or more) to an inaudible level (20dB or less). Zalmans noiseless
solutions enable the user to build silent/ultra-quiet computers of the highest quality.

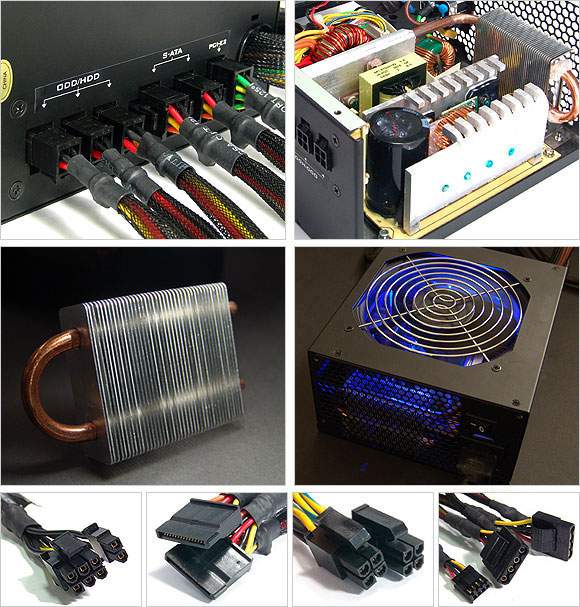

Heatpipe Installed for Maximum Cooling Performance and Ultra-Quiet Operation

A heatpipe with ultra-high cooling performance incorporated on the power supplys main rectifiers enables high load operation even at low RPM for a dramatic reduction in noise levels.

Improved Power Factor & Reduced Harmonics through Active PFC

By implementing Active PFC (Power Factor Correction), the Power Factor(PF) is improved up to 99% while harmful harmonic frequencies are reduced to meet the Line Harmonic Distortion Requirement of IEC61000-3-2 Class D.

High Efficiency Design and 80 PLUS Certified

This power supply is capable of reaching a maximum of 86% efficiency (230VAC, Full & Typical Load) through its use of high switching frequency and low power-loss circuitry. This product has been certified with the 80 PLUS Power Supply Certification and guarantees a higher efficiency compared to uncertified products.

* 80 PLUS is an innovative, electric utility-funded incentive program that strives to integrate more energyefficient power supplies into desktop computers and servers.

ATX20+4 Pin Main Connector

ATX20+4 pin main connector broadens the range of motherboard compatibility.

Supports ATX12V CPU 4 Pin and EPS12V CPU 8 Pin

Two ATX12V CPU 22(4-Pin) power cables can be combined to form an EPS12V CPU 8 Pin power cable.

6 Pin Power Connector for Two PCI Express Graphic Cards

Two independent 6-Pin power connectors fully support Nvidias SLI.

Module Cables

Modular cables provide organized cable management and improved air circulation inside the computer case.

Ultra Quiet 120mm Fan

The ultra quiet 2 ball-bearing 120mm fan maximizes the airflow and minimizes the noise level
enabling a noiseless computing environment with optimized cooling.

Four Independent +12VDC Outputs

Four +12VDC rails supply power independently to the CPU, VGA, motherboard, and peripheral components for the highest level of stability and performance.

EZ Grip Connectors for ODDs & HDDs

EZ Grip Connectors for easy removal of the plugs from ODDs & HDDs.

Gold-Plated Terminals and 16AWG Wires

All connector terminals are gold-plated to minimize contact resistance and power lose. 16AWG (thicker than 18 AWG)wires are incorporated to minimize voltage drop during high load operation.

Sleeved Cables

All power cables are sleeved for easy cable management and improved air circulation inside the computer case.

Multiple Safety Features

Over-Voltage Protection, Over-Current Protection, Short-Circuit Protection, Under-Voltage Protection, and Over-Temperature Protection.

Internal Blue LED

Blue LEDs are installed inside the power supply for cool aesthetics.

WEEE & RoHS

Complies with WEEE & RoHS environmental directives of the European Union.

- WEEE (Waste Electrical and Electronic Equipment)
- RoHS (Restriction of Hazardous Substances)

International Safety and EMC Certifications

Specifications

Output Power Cable Specifications

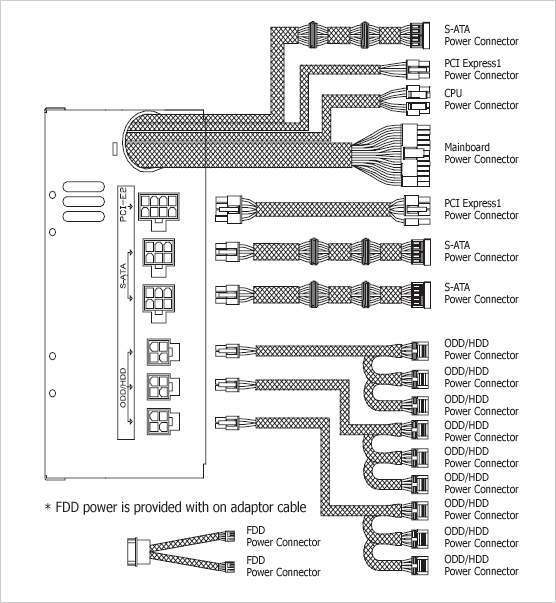

[Cable Types and Functions]

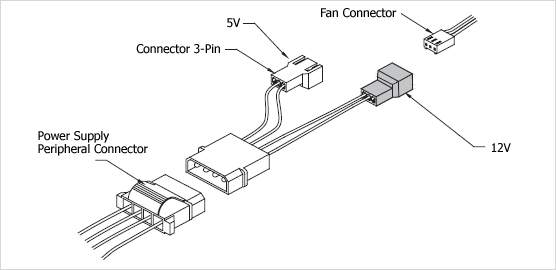

[Dual-Connector (ZM-DC1) Components]
Electrical & Physical Characteristics

AC Input Range
 Voltage
100VAC ~ 240VAC 10% DC OUTPUT
Frequency 47Hz~63Hz ZM750-HP
AC Input Current
(Rated)		 115VAC 12A Output V. Output Load
ange
 Combined
Power
230VAC 5.5A Imin Imax Ipeak
PFC Type Active PFC +3.3V 0.8A 30A
   160W 750W
Power Factor 99% Maximum
 +5V 0.5A 30A
Inrush Current
Limit
(@ Cold start
at 25C)		 115VAC 60A
 +12V1 0.5A 20A   720W
230VAC 100A +12V2 0.5A 20A
Efficiency 86% Maximum @230VAC, Full&Typical load
 +12V3 0.5A 20A
DC Output
Voltage
Regulations
 Output V. Regulation Range
 At Full
Load		 +12V4 0.5A 20A
+3.3V 5% +3.14V~+3.47V
 -12V 0.0A 0.8A   22.1W
+5V 5% +4.75V~+5.25V +5VSB
 0.0A 2.5A 3.5A
+12V1 5% +11.4V~+12.6V Protection Features
+12V2 5% +11.4V~+12.6V Over Voltage Protection(OVP)
+12V3 5% +11.4V~+12.6V Over Current Protection(OCP)
+12V4 5% +11.4V~+12.6V Short Circuit Protection(SCP)
-12V 10% -10.8V ~-13.0V Over Temperature Protection(OTP)
+5VSB 5% +4.75V~+5.25V Under Voltage Protection(UVP)
DC Output
Ripple
& Noise		 Output V. Specification At Full
Load		 Ambient Temperature
+3.3V 80mV Operation 0C ~ +50C
+5V 80mV Storage -20C ~ +80C
+12V1 150mV Ambient Humidily
+12V2 150mV Operation 5%RH ~ 95%RH
+12V3 150mV Storage 5%RH ~ 95%RH
+12V4 150mV Dimensions
-12V 150mV 165(L) X 150(W) X 86(H) mm
+5VSB 80mV MTBF(25) 100,000 hours
To create a true noise-free computer, Zalmans Quiet CPU Cooler, Quiet VGA Cooler, Heatpipe HDD Cooler, Fanless Northbridge Cooler, and Noiseless Case Fan should be used together with this product.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year RTB

Full manufacturers warranty details are available at the manufacturers (Zalman) web site.
