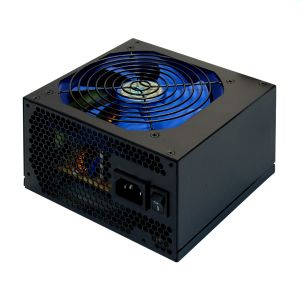

SilverStone ST50F - 500W Strider Power Supply - 120mm Fan, 6x SATA, 2x PCI-E 6-pin

IMG 1 of 1
No Longer Available
Part Number:
78048
(?) Brand:
SilverStone Web Site
Manuf No:
ST50F
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
ST50F
  POWER SUPPLY ST50F
Introduction
  The ST50F is power supplies with elevated performance that also satisfy both users and the environment. Their smart running 120mm fan will ensure maximum efficiency with the least amount of noise possible while the advanced active PFC circuitry helps reduce overall power consumption. As the norm for all Strider series, the exterior of all three models are dressed in durable black surface to reflect the quality components within.

Special Feature
  Strong continuous power output
Components designed for reliability
Dual +12V rails for newest systems
Dual 6pin PCI-E connectors
Six serial ATA connectors
Intelligent 120mm variable speed fan
Active PFC



Specifications

Max. DC Output
  500W
Load Range
  +3.3V +5V +12V1 +12V2 +12V3 +12V4 +5VSB -12V -5V
Max.(Amps) 30A 30A 18A 18A / / 2.5A 0.5A /
Peak (Amps) / / / / / / 3.5A / /
Min.(Amps) 0.5A 0.3A 1.0A 1.0A / / +/-5% +/-10% /
Range (%) +/-5% +/-5% +/-5% +/-5% / / +/-5% +/-10% /
Line Reg.(%) 50mV 50mV 120mV 120mV / / 50mV 120mV /
combined +3.3, +5V
  152W
combined +12V
  36A/432W
Input Voltage
  90V ~ 265V (Auto Range)
Input Frequency Range
  47Hz ~ 63Hz
PFC
  Active PFC (PF>0.95 at full load)
Efficiency
  80%(at typical load)
MTBF
  100,000 hours at 25C , full load
Operating temperature
  0 ~ 50C
Protection
  Over current protection, Over voltage protection, Short circuit.
Connectors
  1 x 24-pin motherboard connector (550mm)
1 x 8-pin EPS12V connector (750mm)
1 x Dual 6-pin PCI-E connector (550mm)
2 x triple SATA connector (500mm +150mm + 150mm)
2 x triple 4-pin IDE & single floppy power connectors
(500mm + 250mm + 150mm + 150mm)
Color
  black (lead-free paint)
Cooling System
  1x 120mm fan
Noise Level
  22 dBA minimum
Dimension
  150 mm (W) x 86 mm (H) x 140 mm (D)
Weight
  1.8 kg

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (SilverStone) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
