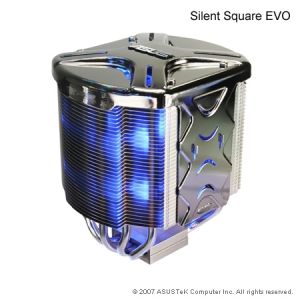

ASUS Silent Square EVO - Intel S775, AMD S754/939/940/AM2, 2300rpm, 22dBA, Sleeve Bearing

IMG 1 of 1
No Longer Available
Part Number:
78331
(?) Brand:
ASUS Web Site
Manuf No:
SILENT-SQUARE-EVO
SILENTSQUAREEVO
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
SILENTSQUAREEVO, SILENT-SQUARE-EVO
Best Choice to Quad-Core CPU Support

Advantages and Benefits

Multiple Application with PWN Function
Silent Square EVO supports the Intel Core 2 Extreme/Core 2 Quad Quad-core CPU (LGA 775) and AMD Athlon 64 FX/X2 Dual-Core processors (939/940/AM2). PWM function automatically modulates 9cm fan speed according to CPU temperature and delivers a quiet cooling at a mere 22dBA.

Inner Fan
The fan positioned inside the frame for maximum airflow and VRM shield guides cool air to critical components around the CPU for stable operation.

Fast Heat Transfer
The "wave-shaped" double side fin design on both sides of the cooler for larger heat exchange area, and combined of the copper base and five copper heat pipes can efficiently transfer the heat to the fins, maintaining the temperature for high-performance computing and stable operation.

Copper Base + 5 Heat Pipes for Better Heat Transfer

Double Sides "Wave-Shaped" Fins for Effective Heat Dissipation

Blue LED Fan - Stylize your PC

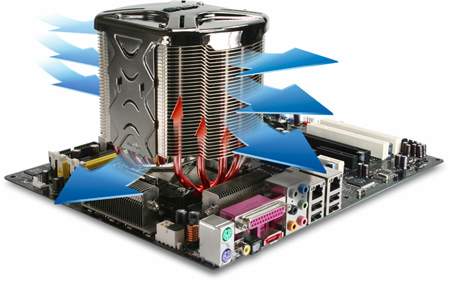

Unique Ventilation Design to Integrated Cooling of Voltage Converters
* 20% Lower VRM Temp
* 30% Lower CPU Temp

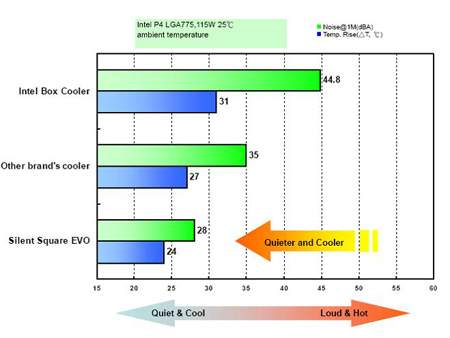

Best Performance & Low Acoustics
Compared Competing Solutions


* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.




Specification
CPU Support
Intel Core2 Extreme/ Core2 Quad (Quad-Core)
Intel Core2 Duo/ Pentium Dual Core/ Pentium D (Dual-Core)
Intel Core2 Duo/ Pentium Dual Core (Dual-Core)
Intel Pentium 4 HT/Celeron D
AMD Athlon 64 FX
AMD Athlon 64 X2
AMD Athlon 64
AMD Sempron
CPU Socket
Intel LGA 775
AMD 754/939/940
AMD AM2
Dimensions (L x W x H)
120 (L) x 105 (W) x 146 (H) mm
Net Weight (g)
745 g
Heatsink Material
Cu. Base + Al. fins + 5 Heat Pipes
Fan
Dimension (mm)
92 x 92 x 25
Bearing Type
Vapo
Connector
4 Pin with PWM Control
Speed
2300 rpm 10%
Max. Airflow
36.5 CFM
Max. Air Pressure
2.8 mm-H2O

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12-month Manufacturer

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.
