All stock codes associated to this product
MB-S2696A2NRF
Supported Processors
Tempest i5000XT - S2696
667MHz FSB
5020, 5030,5040, 5050, (2.5 - 3.0GHz)
1066MHz FSB
5060, 5063, 5070, 5080,5110, 5120, E5310 , E5320 (1.6 - 3.73GHz )
1333MHz FSB
5130, 5140, 5148LV, 5150, 5160, E5335, E5345, X5355, X5365 (2.0 - 3.0GHz)

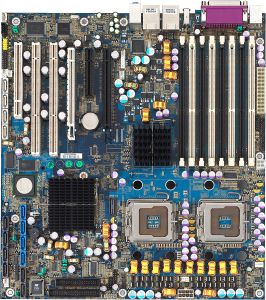

Power and performance combine in this exciting new offering for the workstation market: the Tempest i5000XT (S2696). Based on Intel's 5000X chipset, the Tempest i5000XT offers many key features, including support for (2) Intel Xeon processors 5000/5100 series; FBDIMM support; dual PCI Express x16 slots, as well as multiple PCI-X slots; built-in FireWire (1394a), Audio, SAS, and SATA-II with RAID, and onboard dual Gigabit Ethernet ports.
Processor Dual LGA771 sockets
Supports up to two Intel Xeon processors 5000/5100 series ("Dempsey/Woodcrest"); dual-Core
1333/1066/667 MHz FSB; VRD 11.0
Chipset Intel 5000X chipset
Intel 6321ESB I/O Controller Hub
Winbond 82627EHG Super I/O chip
Memory (8) 240-pin DDR2 FBDIMM sockets
Four memory channels; supports ECC DIMMs
Maximum of 32/16GB of DDR2-533/667
Expansion Slots (2) PCI-E x16 slots (one x4 sig. from EBS2; one x16 signals for graphics cards)
(1) PCI-E x8 slot (x4 sig. from EBS2)
(2) PCI-X 133/100MHz slots from EBS2
(1) PCI 32-bit 33MHz slot
Integrated I/O One 9-pin 16550 UART serial port
Six USB 2.0 ports (4 rear; 4 for 2 pin headers)
PS/2 mouse and keyboard connectors
Six standard SATA connectors
Two RJ-45 10/100/1000 LAN ports
One IDE and one floppy ports
Eight SAS ports
System Management ADI ADT7470 Hardware Monitor
CPU thermal & voltage monitor support
Five (5) fan headers (4-pin configuration)
Integrated Audio Controller HDA link; SPDIF in/out port in rear
RealTek ALC888 controller (High-Def. Audio)
Stacked Mic-in/Line-in/Line-out rear ports
Front panel audio header
CD-in, Aux-in headers (4-pin configuration)
Integrated SATA Controller (6) SATA-II ports running at 3.0Gb/s
RAID 0, 1, 5, and 10 supported (RAID 10 only supported under windows)
Integrated FireWire (1394a) Controller TI TSB43AB22 1394a controller
1394a channel for rear (connector)
1394a channel for front (header)
Integrated LAN Controllers Intel Gigabit from ESB2 (w/ dual pors "Gilgal")
- ASF 2.0; two RJ-45 ports with LED
Trusted Platform Management (TPM) Infineon SLB9635TT 1.2 (w/ 5000X-G chipset) BIOS Phoenix BIOS on 8Mbit Flash ROM
Support ACPI 2.0
PXE via Ethernet, USB device boot
PnP, DMI 2.0, WfM 2.0 Power Management
User-configurable H/W monitoring
Auto-configuration of hard disk types
Multiple boot options
48-bit LBA support
Form Factor SSI / Extened ATX footprint (12" x 13")
Power EPS12V / SSI (24 + 8 + 4 pin) power connectors
Regulatory FCC Class B (Declaration of Conformity)
European Community CE (DoC)
