| Key Points |
 |
Powered Vertical and horizontal lens shift and a complete line of optional bayonet style lenses (5)
Changeable Color Wheels
BrilliantColor
DynamicBlack
4500 Lumens
Wired network projector |
| Unique Features |
|
Remote diagnostics
Lamp saver technologies with heat sensor and reserve power to keep cooling fan running even after disconnected from power. |
| Display Technology |
|
0.65 in DMD |
| Native |
|
XGA 1280 x 768 |
| Maximum |
|
UXGA 1600x1200 |
| Light Output (lumens) |
|
4500 normal |
| Contrast Ratio |
|
up to 2100:1 |
| Lamp Type |
|
260W AC |
| Lamp Life (up to) |
|
2000 hours normal/2500 hours eco |
| Screen Size (diagonal) |
|
NP06FL: 50-200 in, 1270-5080 mm
NP07ZL, NP08ZL, NP09ZL, NP10ZL: 40-500 in, 1016-12700 mm |
| Throw Ratio |
|
NP06FL 0.77:1
NP07ZL 1.33 - 1.79:1
NP08ZL 1.78 - 2.35:1
NP09ZL 2.22 -.43:1
NP10ZL 4.43 - 8.3:1
|
| Projection Distance |
|
NP06FL 2.8 - 11.5 ft, 0.85 - 3.52 m
NP07ZL 3.8 - 60.9 ft, 1.15 - 18.56 m
NP08ZL 5.1 - 79.9 ft, 1.55 - 4.35m
NP09ZL 6.3 - 152.3 ft, 1.92 - 46.41 m
NP10ZL 12.6 - 283.3 ft, 3.85 - 86.36 m
|
| Projector Angle |
|
NP06FL 0
NP07ZL 12.4 /9.3
NP08ZL 9.2 /7.0
NP09ZL 8.8 /7.4
NP10ZL 3.8 /2.0 |
| Zoom |
|
Powered |
| Focus |
|
Powered |
| F-number, f-number |
|
NP06FL F=2.0 mm, f=11.4 mm
NP07ZL F=1.8 to 2.3 mm, f=19.3 to 25.8 mm
NP08ZL F=1.7 to 1.9 mm, f=26.0 to 34.0 mm
NP09ZL F=2.1 to 2.9 mm, f=32.0 to 63.0 mm
NP10ZL F=2.2 to 3.1 mm, f=63.5 to 117.4 mm |
| Shift |
|
Manual, 50% Vertical, +/- 10% Horizontal |
| Keystone Correction |
|
Vertical +/-40 , horizontal +/-27 degrees |
| Horizontal |
|
15 to 90 kHz |
| Vertical |
|
50 to 85 Hz |
| Supported Video Standards |
|
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
| SD/HD Video Signal Compatibility |
|
1080i, 720p, 576p, 576i, 480p, 480i |
| PC Signal Compatibility |
|
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WXGA |
| Macintosh Compatibility |
|
Yes |

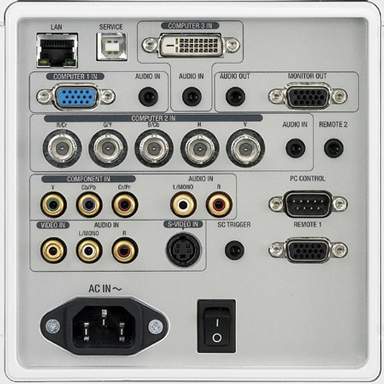

| RGB 1 (analog) |
|
15 pin |
| RGB 2 (analog) |
|
5 BNC |
| RGB 3 (digital) |
|
DVI-D w/ HDCP |
| Video 1 |
|
RCA |
| Video 2 |
|
S-Video |
| Video 3 |
|
Component |
| HD Video 1 |
|
N/A |
| HD Video 2 |
|
N/A |
| Audio |
|
(2) L/R RCA, 3 mini stereo |
| Monitor out |
|
1 - 15pin |
| Audio out |
|
Variable 1 x mini stereo |
| Audio |
|
2 x 3W Stereo Speakers |
| External Control |
|
RS232, IR |
| Sync Compatiblity |
|
Separate Sync/Composite Sync/Sync on G |
| Networking |
|
Wired LAN using integrated RJ45 |
| Power Req. |
|
100 - 240VAC, 50/60Hz |
| Input Current |
|
6.5A |
| Power Consumption |
|
655W |
| Installation Orientation |
|
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
| Dimensions (WxDxH) |
|
505 x 385 x 209 mm |
| Net Weight |
|
16.5kg |
| Fan Noise |
|
36 dB normal/34 dB eco-mode |
| Regulations |
|
USA UL60950-1 FCC Class B, Canada CSA60950-1 (C-UL), NOM-001-SCFI-1993 |
| Operational Temp. |
|
5 to 40 C Sea Level 41 to5 to 23 C @ 10,000 ft |
| Humidity |
|
20-90% (non-condensing) |
| Storage |
|
-10 to 60 C |
| Warranty |
|
Registered owners receive a 3-year limited warranty including parts and labour. The lamp is covered for six months or 2000 hours - whichever comes first. |
| Additional Features |
|
|
| VORTEX Technology Plus |
|
Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image. |
| Autosense |
|
Automatically syncs with any computer signal and features one touch image optimization. |
| Advanced AccuBlend |
|
Ensures detailed images when non-native resolution sources are connected to the projector. |
| Kensington Lock Slot |
|
Enables security cable to be attached to projector. |
| Image Magnification |
|
64-step image magnification with location control |
| Sleep Timer |
|
N/A |
| Eco-Mode Technology |
|
Extends lamp life, lowers audible noise and reduces total cost of ownership. |
| Discreet Source Keys |
|
Projector and remote feature direct access buttons for source selection |
| Computer free presentations |
|
N/A |
| High speed wireless |
|
N/A |
| In the Box |
|
Remote control, remote control cable, batteries, power cord, RGB signal cable, lens cap, user's manual on CD-ROM, product registration card |
