45nm Ready Serverboard with Rich Expansion capability |

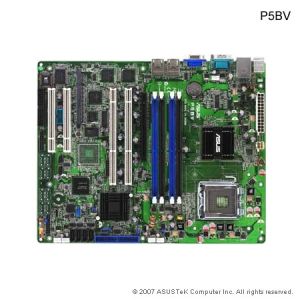

ASUS new platform sever board the P5BV supports the latest 45nm Multi-Core Intel Xeon processor at FSB1333MHz based on the Intel 3200 MCH and Intel ICH7R chipset, features up to 8GB DDR2 800/667 memory capacity and PCI-E expansion slots support.
All New 1P Platform with Latest Technology
 Single Quad-Core/Dual-Core Intel Xeon 3200/3000 Series Processors Support
Upgradeable to next-generation 45nm Intel Xeon processors
FSB 1333MHz support
Up to 8GB DDR2 800/667 Unbuffered ECC/non-ECC memory capacity
Professional Network Connections
Dual-LAN features a "teaming" function and provides higher transferring bandwidth
High communication efficiency- even if an error occurs to one port, the networking connection will not be affected in any way
High Storage Capacity and Data Protection
4-port SATA support RAID 1, 10, 5 (for Windows ) and embedded LSI MegaRAID driver support RAID 1 & 10 for Linux OS
Flexible Expansion Choices
Support one PCI-Ex16 (x8 link) slot for higher bandwidth
Protect users investment by supporting two PCI 32 bit/33Mhz and two PCI-X slots for legacy device
KEY SPECIFICATIONS
|
Processor Support
|
1 * LGA 775 socket
Quad-Core Intel Xeon 3200 Series
Dual-Core Intel Xeon 3000 Series
Next-Generation 45nm Intel Xeon Processors support
|
|
FSB
|
FSB 1333/1066/800 MHz
|
|
Core Logic
|
Intel 3200 MCH + Intel ICH7R +NEC UPD720404
|
|
Memory
|
4-DIMMs support DDR2 800/667 Unbuffered, ECC /non-ECC up to 8GB
|
|
Storage
|
Total 4-port SATA
Intel ICH7R: 4-port SATA2
|
|
1 * IDE UltraATA 33/66/100
|
|
RAID Support
|
4-port SATA (ICH7R):
Support RAID 0,1,10 & 5 for Windows (Intel Matrix Storage)
Support RAID 0,1 & 10 for Linux (LSI MegaRAID Driver)
|
|
NIC
|
2 * Broadcom BCM5721 PCI-E GbE LAN
|
|
Onboard Gfx
|
XGI Z9s (32MB DDR2)
|
|
Expansion Slot
|
1* PCI-E x16 (x8 link)
2* PCI-X
2* PCI 32bit/33MHz
|
|
Form Factor
|
ATX, 12" * 9.6"
|
|
