SilverStone Suscool 81 - 80mm, Enter Bearing, 900-1750rpm, 14.68-28.55CFM, 15-19dBA - Blue/Black

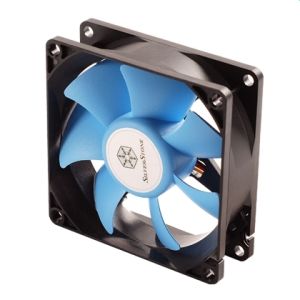

IMG 1 of 1
No Longer Available
Part Number:
80717
(?) Brand:
SilverStone Web Site
Manuf No:
G520SC020080020
Shipping Weight:
0.2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
G520SC020080020, SUSCOOL81, SUSCOOL-81
  SUSCOOL81
Introduction
  The Suscool 81 is an ultra quiet fan that is specially designed for special quiet computing environment needs; it has the latest bullet hub design that takes advantage of aerodynamics and improved efficiency, lowered overall noise on all speed level to a point that youll barely notice its even operating. Designed with automatic thermal control that will increase or decrease speed depending on the temperature it detects. The use of rubber screws to dampen any physical shocks from the out side, combined with the enter bearing; Suscool 81 is designed to last and cool as long as your system.

Special Feature
  Ultra quite at all speeds, almost no sound during idle mode
Sky blue fan blades and black frame

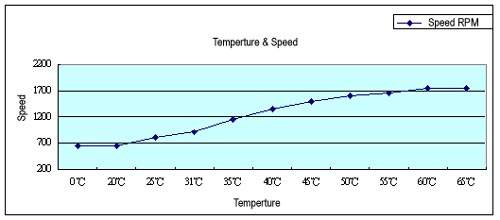

Thermal control 900rpm~1750rpm speed range @ 31~60
Enter bearing design for quietness and reliability
Includes shock dampening rubber screws


Specifications
DIMENSION Plastic (PBT)
ITEMS STARAND REMARKS
Material
  Sky Blue Blade & Black frame

BEARING
  Enter bearing

RATE VOLTAGE
  12V DC

START VOLTAGE
  9V DC
  Nominal
OPERATING RANGE
  9V~13.8V DC

RATED CURRENT
  0.09 Amp @ 60
0.06Amp @31
  IN FREE AIR AT RATED VOLTAGE
RATED POWER
  1.08W @60
0.72W @31
  IN FREE AIR AT RATED VOLTAGE
SPEED
  1750rpm @60
900rpm @31
  IN FREE AIR AT RATED VOLTAGE
AIRFLOW
  28.55 CFM @60
14.68CFM @31
  AT RATED VOLTAGE
STATIC PRESSURE
  1.38 mm-H20 @60
0.36mm-H20 @31
  AT RATED VOLTAGE AT ZERO AIRFLOW
NOISE LEVEL
  19dB(A) @ 60
15dB(A) @ 31
  IN FREE AIR AT RATED VOLTAGE
LIFE TIME
  30,000 hours
  AT RATED VOLTAGE IN 25C


Remark
If the fan can not start, please turn off thermal control in BIOS and use the thermal connector we have included for you.
