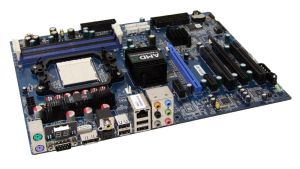

| CPU |
Supports AMD Socket AM2+/ AM2 processors: |
| |
AMD PhenomFX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core/ Athlon 64 / Sempron processors |
| |
Hyper Transport Bus 5200/2000 MT/s (HT 3.0/1.0) |
| |
|
| Chipset |
North Bridge: AMD 770 |
| |
South Bridge: AMD SB600 |
| |
|
| Memory |
4 x 1.8v DDR2 DIMM sockets supporting up to 8 GB of system memory |
| |
Dual channel memory architecture |
| |
Support for DDR2 1066/800/667 MHz memory modules |
| |
Support ECC Memory(CPU dependent) |
| |
|
| Audio |
Realtek ALC 888 codec |
| |
High Definition Audio |
| |
2/4/5.1/7.1-channel |
| |
Support for S/PDIF In/Out |
| |
Support for CD In |
| |
|
| LAN |
Marvell 88E8056 PCIe LAN (10/100/1000 Mbit) |
| |
Single on JW-RX780X-AM2+, Dual on JW-RX780X-AM2+ (CS) |
| |
|
| Expansion Slots |
2 x PCI-Express x16 slots supporting ATI CrossFire Technology (16x + 4x physical speed) |
| |
(The PCIE2 slot supports x16; the PCIE4 slot supports x4. Both PCI-E x16 slots conform to PCI Express 2.0 standard.) |
| |
2 x PCI Express x1 slots |
| |
2 x PCI slots |
| |
|
| Storage Interface |
South Bridge (SB600): |
| |
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices |
| |
4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices |
| |
Support for SATA RAID 0, RAID 1 and RAID 0+1 |
| |
|
| |
Winbond W83627EHG chip: |
| |
1 x floppy disk drive connector supporting up to 1 floppy disk drive |
| |
|
| USB |
Integrated in the South Bridge |
| |
Up to 10 USB 2.0 ports (4 on the back panel, remaining 6 via the USB headers) |
| |
|
| Internal I/O Connectors |
1 x 24-pin ATX main power connector |
| |
1 x 8-pin ATX 12v power connector |
| |
1 x 4-pin PCI-E 12v power connector |
| |
1 x floppy disk drive connector |
| |
1 x IDE connector |
| |
4 x SATA 3Gb/s connectors |
| |
1 x CPU fan header |
| |
2 x system fan headers |
| |
1 x front panel header |
| |
1 x front panel audio header |
| |
1 x CD In connector |
| |
1 x S/PDIF In/Out header |
| |
3 x USB 2.0 headers (for additional 6 USB outputs via cables) |
| |
1 x IR header |
| |
1 x buzzer header |
| |
|
| Back Panel Connectors |
1 x PS/2 keyboard port |
| |
1 x PS/2 mouse port |
| |
1 x Debug LED |
| |
1 x serial port |
| |
1 x eSATA port (through cable extension) |
| |
1 x coaxial S/PDIF In connector |
| |
1 x optical S/PDIF Out connector |
| |
4 x USB 2.0/1.1 ports |
| |
1 x RJ-45 port |
| |
6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out) / |
| |
Center / Subwoofer Speaker Out / Side Speaker Out) |
| |
|
| I/O Controller |
Winbond W83627EHG chip |
| |
H/W Monitoring System voltage detection |
| |
CPU/System temperature detection |
| |
CPU/System fan speed detection |
| |
CPU fan speed control |
| |
|
| BIOS |
1 x 8 Mbit flash |
| |
Use of licensed AMI BIOS |
| |
|
| Operating System Support |
Microsoft Windows Vista/XP/2000 |
| |
|
| Form Factor |
ATX Form Factor; 305 mm x 245 mm |
| |
|
| Remark |
1066 MHz memory support is dependent on the CPU being used. |
| |
ECC memory support is dependent on the CPU being used. |
| |
If you are installing a single PCI-E x16 graphics card, please install it into the PCIE2 slot for optimum performance. |
